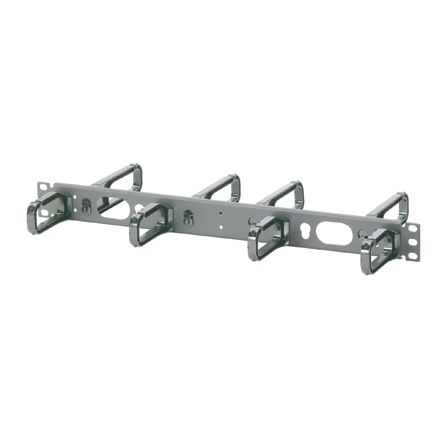

Panduit CMPH1 Horizontal Panel D-Rings Front And Back 1 RU, 1.7";H x 19.0";W x 8.6";D (44mm x 483mm x 218mm)
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit CMPH1 Horizontal Panel D-Rings Front And Back 1 RU, 1.7&quo...
Description
Description
The Open-Access Horizontal D-Ring Cable Manager provides open and efficient access to power, coaxial and communications cables. Made of a steel frame with modular plastic snap-in D-rings, the cable manager is lightweight and durable, but flexible enough to endure seamless moves, adds, and changes. It is compatible with any standard EIA 19 inch (483mm) rack or cabinet. The manager is 1 RU and comes with 3 in. deep D-rings on the front and 5 in. deep D-rings on the rear. The manager is black.
Panduit - CMPH1 - Features
- D-ring managers provide an open and efficient way to manage cable
- Patented D-ring design provides flexibility for easy moves, adds, and changes
- Optional snap-on cover
- Pass-through holes allow front to rear cabling
- Mount to 19"; EIA racks and cabinets
- Hardware included
Specifications
Specifications
Panduit - CMPH1 - Product Categories
- Cabinets, Thermal Management, Racks and Enclosures
- Horizontal Cable Managers
Panduit - CMPH1 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CMPH1 |
| Item Description | Open-Access Horizontal Dual-Sided Manager, 1RU, 8.6 in. Depth |
| Product Type | Dual Sided Manager |
| Compatible Rack System | 19 |
| Body Material | Steel |
| Orientation | Horizontal |
| D-Ring Material | Polycarbonate |
| Sub Brand | Open-Access |
| Overall Height (In.) | 1.72 |
| Overall Height (mm) | 43.7 |
| Overall Width (In.) | 19 |
| Overall Width (mm) | 483 |
| Overall Depth (In.) | 8.57 |
| Overall Depth (mm) | 218 |
| Number of Rack Units | 1 |
| Environment | Indoor |
| Color | Black |
| Standards Met | RoHS Compliant |
| For Use With | Standard 19" mount rack or cabinet |
| Includes | Manager and hardware kit (covers available separately) |
Panduit - CMPH1 - Package Information
| UPC | 07498378323 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.2678 |
| Standard. Ctn. Quantity | 0 |
| Standard. Ctn. Volume (cf) | 0.0000 |
