Panduit CMS24-M300 | CMS24-M300 Edge Clip Side Mount, Black, High H...
Description
Description

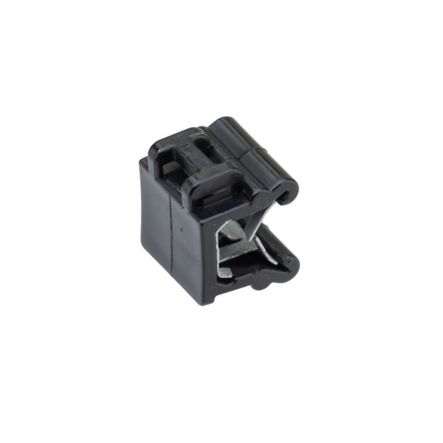

The CMS24-M300 Edge Clip provides versatile mounting to edges without adhesives or drilling. When paired with a miniature, intermediate or standard cross-section cable tie, will provide a means to secure and route cables parallel or perpendicular and adjacent (side affixed) to a 3mm to 6mm edge. Ideal for a range of applications such as automobiles, trains, heavy equipment, trucks, and solar. Color Black.
Panduit CMS24-M300 | Panduit Cms24-M300 Edge Clip Mount, 3-6Mm, Side
Panduit - CMS24-M300 - Features
- The CMS24-M300 Edge Clip provides versatile mounting to edges without adhesives or drilling. When paired with a miniature, intermediate or standard cross-section cable tie, will provide a means to secure and route cables parallel or perpendicular and a djacent (side affixed) to a 3mm to 6mm edge. Ideal for a range of applications such as automobiles, trains, heavy equipment, trucks, and solar. Color Black.
- Technical Information: RoHS Compliant
Specifications
Specifications
Panduit - CMS24-M300 - Product Categories
- Wire Routing, Management & Protection
- Cable Tie Mounts
Panduit - CMS24-M300 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CMS24-M300 |
| Item Description | CMS24-M300 Edge Clip Side Mount, Black, High Heat/UV PA6.6, .118-.236", PK1000 |
| Application | For securing wire and cable bundles with versatile mounting to edges. Ideal for automobiles, trains, heavy equipment, trucks, and solar applications. |
| Product Type | Edge Clip Mount |
| Color | Black |
| Flammability Rating | UL94V-2 |
| Environment | Outdoor |
| Material | Heat Stabilized Weather Resistant Nylon 6.6 |
| Maximum Compatible Panel Thickness (In.) | 0.236 |
| Maximum Compatible Panel Thickness (mm) | 6 |
| Maximum Operating Temperature (°C) | 115 |
| Maximum Operating Temperature (°F) | 239 |
| Minimum Loop Tensile Strength (N) | 222 |
| Minimum Loop Tensile Strength (lb) | 50 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Mount Method | Edge Clip |
| Overall Height (In.) | 0.52 |
| Overall Height (mm) | 13.2 |
| Overall Length (In.) | 0.58 |
| Overall Length (mm) | 14.7 |
| Overall Width (In.) | 0.63 |
| Overall Width (mm) | 16 |
| Resistance Properties | UV Resistant |
| Standards Met | RoHS Compliant |
| Part Features | Integral saddle for attaching a cable tie located on the side face of the mount for parallel or perpendicular oriented bundle to the mounting edge |
Panduit - CMS24-M300 - Package Information
| UPC | 61305679287 |
|---|---|
| Standard Package Quantity | 1000 |
| Standard Package Volume (cf) | 0.1240 |
| Standard Ctn. Quantity | 5000 |
| Standard Ctn. Volume (cf) | 0.6202 |
