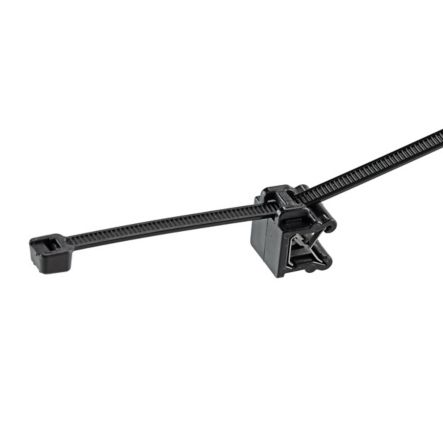

Panduit CMSA24-2S-C300 | Pan-Ty CMSA24-2S-C300 EdgeClip/Tie(side), Black, High Heat/UV PA6.6, .118-.236"
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit CMSA24-2S-C300 | Pan-Ty CMSA24-2S-C300 EdgeClip/Tie(side), ...
Description
Description

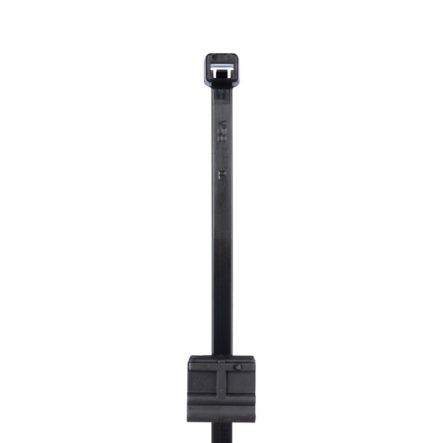

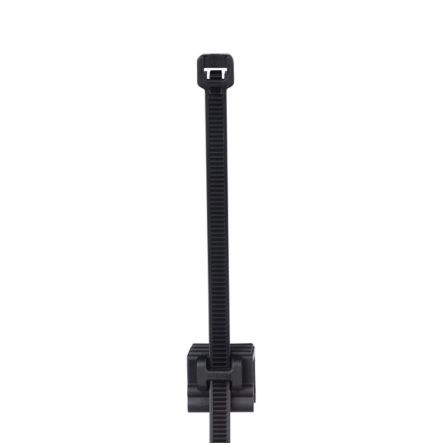

The CMSA24-2S-C300 Edge Clip with Cable Tie Mounts helps secure wire and cable bundles with versatile mounting to edges without adhesives or drilling. Pre-assembled with a cable tie for securing and routing cables parallel and adjacent to a 3mm to 6mm edge. Ideal for a range of applications such as automobiles, trains, heavy equipment, trucks, and solar. Color Black.
Panduit CMSA24-2S-C300 | Panduit Cmsa24-2S-C300 Edge Clip With Tie, 3-6Mm
Panduit - CMSA24-2S-C300 - Features
- The CMSA24-2S-C300 Edge Clip with Cable Tie Mounts helps secure wire and cable bundles with versatile mounting to edges without adhesives or drilling. Pre-assembled with a cable tie for securing and routing cables parallel and adjacent to a 3mm to 6mm edge. Ideal for a range of applications such as automobiles, trains, heavy equipment, trucks, and solar. Color Black.
- Technical Information: RoHS Compliant
Specifications
Specifications
Panduit - CMSA24-2S-C300 - Product Categories
- Wire Routing, Management & Protection
- Cable Tie Mounts
Panduit - CMSA24-2S-C300 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CMSA24-2S-C300 |
| Item Description | Pan-Ty CMSA24-2S-C300 EdgeClip/Tie(side), Black, High Heat/UV PA6.6, .118-.236" |
| Application | For securing wire and cable bundles with versatile mounting to edges. Ideal for automobiles, trains, heavy equipment, trucks, and solar applications. |
| Product Type | Edge Clip with Cable Tie |
| Color | Black |
| Flammability Rating | UL94V-2 |
| Environment | Outdoor |
| Material | Heat Stabilized Weather Resistant Nylon 6.6 |
| Maximum Compatible Panel Thickness (In.) | 0.236 |
| Maximum Compatible Panel Thickness (mm) | 6 |
| Maximum Operating Temperature (°C) | 115 |
| Maximum Operating Temperature (°F) | 239 |
| Minimum Loop Tensile Strength (N) | 222 |
| Minimum Loop Tensile Strength (lb) | 50 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Mount Method | Edge Clip |
| Overall Height (In.) | 0.63 |
| Overall Height (mm) | 16 |
| Overall Length (In.) | 7.4 |
| Overall Length (mm) | 188 |
| Overall Width (In.) | 0.48 |
| Overall Width (mm) | 14.7 |
| Resistance Properties | Heat and UV Resistant |
| Standards Met | RoHS Compliant |
| Part Features | Integral saddle for attaching a pre-assembled cable tie located on side face and oriented for bundle parallel to mounting edge |
Panduit - CMSA24-2S-C300 - Package Information
| UPC | 61305677517 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.1240 |
| Standard Ctn. Quantity | 500 |
| Standard Ctn. Volume (cf) | 0.6202 |
