Panduit CMSAGSCZBL | Mini-Com APC/Green SC, Multimode Simplex, Blac...
Regular price
$26.36
Unit price
Brand: Panduit
|
SKU:
313254
Regular price
$26.36
Unit price
Description
Description

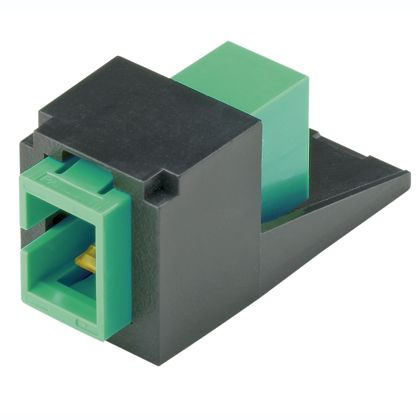

Panduit CMSAGSCZBL | Mini-Com APC/Green SC, Multimode Simplex, Black Module
Streamline your network connections with our SC simplex fiber adapter module. Designed for single fiber connections, this module is perfect for LAN and fiber-to-the-desk applications.
The Mini-Com SC APC simplex fiber adapter module is single-mode. It is green with a black module and has zirconia split sleeves.
Panduit Mini-Com Fiber Optic Adapter, SC APC Simplex Connector, 1 Ports, Single Mode Fiber, For Use With: Mini-Com Patch Panel, Faceplate and Surface Mount Box, Plastic, Black
Panduit - CMSAGSCZBL - Features
- Integrated retention clip automatically adjusts for FOCIS-3 compliant panel thickness variations, creating a snug fit to reduce rattles, no metal clips to become bent or damaged
- Improved protective cap fully surrounds split sleeve opening
- Short flange design for improved modularity and higher density usage
- QC number and split sleeve material laser marked on every adapter assures 100% traceability, quick and easy identification of split sleeve material
- TIA/EIA-604 FOCIS-3 compliant adapters
- Exceed TIA/EIA-568-B.3 requirements
- Compatible with Mini-Com(TM) products for complete modularity
- Improved protective cap fully surrounds split sleeve opening
- Choice of phosphor bronze or zirconia ceramic split sleeves to fit specific network requirements; zirconia ceramic split sleeves are required for single-mode applications
- Every adapter is laser marked with Q.C. number to assure 100% traceability
- Mini-Com(TM) SC Simplex Adapter Modules are commonly used with Mini-Com(TM) Patch Panels
- Mini-Com(TM) SC Duplex Adapter Modules are commonly used with Mini-Com(TM) Surface Mount Boxes
- SC simplex and duplex adapters are also available separately, and in patch panels or fiber adapter panels to provide a complete SC system solution
- Specification Description
- Fiber Optic Adapter Module
- Color: Black
- Sleeve Type: Split
- Sleeve Material: Zirconia Ceramic
- Includes: With (1) Green SC APC Simplex Single-Mode Fiber Optic Adapter
- Fiber Count: 1
- Fiber Type: Simplex
- Number Of Module Spaces: 1
- Connector Type: SC APC (1 Type)
- Dimension: 1.93 Inch Length x 0.62 Inch Width x 0.71 Inch Height (49 mm x 16 mm x 18 mm)
Specifications
Specifications
Panduit - CMSAGSCZBL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CMSAGSCZBL |
| Color | Green |
| Fiber Type | Single |
| Loaded | No |
| Number Of Ports | 1 |
| Termination | Sc |
| UNSPSC Code | 43223331 |
| Sub Brand | Mini-Com |
| Body Style | Simplex |
| Fiber Type | OS1/OS2 |
| Split Sleeve Material | Zirconia Ceramic |
| Overall Length (In.) | 1.93 |
| Overall Length (mm) | 49 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°C) | 0 |
| Minimum Operating Temperature (°F) | 32 |
| Maximum Installation Temperature (°C) | 60 |
| Maximum Installation Temperature (°F) | 140 |
| Minimum Installation Temperature (°C) | 0 |
| Minimum Installation Temperature (°F) | 32 |
| Standards Met | TIA/EIA-604 FOCIS-3 compliant, Exceed TIA/EIA-568-B.3. RoHS compliant |
| Product Type | SC Adapter Module |
| Application | SC adapters provide a robust solution for LANs, public networks, storage area networks and fiber-to-the-desk applications. SC adapters can also be mounted in high-density applications within Opticom QuickNet Pre-Terminated MTP* Cassettes and Fiber Enclosures, and Opticom Fiber Adapter Panels (FAPs) and Enclosures. |
| Adapter Color | Green |
| Module Color | Black |
| Connection Type | SC Simplex APC |
| UPC | 07498385448 |
Panduit - CMSAGSCZBL - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8536.69.8000 |
