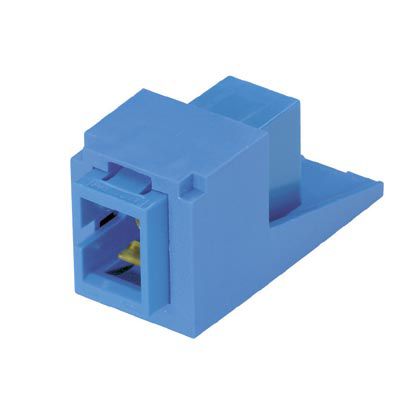

Panduit CMSBUSCZBU | Mini-Com Blue SC, Singlemode Simplex, Blue Module
Regular price
$25.06
Unit price
Brand: Panduit
|
SKU:
316617
Regular price
$25.06
Unit price
Description
Description
Panduit CMSBUSCZBU | Mini-Com Blue SC, Singlemode Simplex, Blue Module
Streamline your network connections with our SC simplex fiber adapter module. Designed for single fiber connections, this module is perfect for LAN and fiber-to-the-desk applications.
Module supplied with one SC simplex single-mode fiber optic adapter (BU) with zirconia ceramic split sleeve.
Panduit Mini-Com Fiber Optic Adapter Module, SC Simplex Connector, 1 Ports, Single Mode Fiber, For Use With: Mini-Com Patch Panel, Faceplate and Surface Mount Box, Plastic, Blue
Panduit - CMSBUSCZBU - Features
- Integrated panel retention clips no metal clips to become bent, damaged or lost, clips automatically adjust for FOCIS-3 compliant panel thickness variations for improved mounting
- High glass transition temperature latch material maintains latch integrity/geometry in high temperature environments for improved reliability
- Improved adapter protective cap design maximum protection from contamination, protective cap fully surrounds split sleeve opening
- Short flange design for improved modularity and higher density usage
- QC number and split sleeve material laser marked on every adapter assures 100% traceability, quick and easy identification of split sleeve material
- TIA/EIA-604 FOCIS-3 compliant adapters
- Exceed TIA/EIA-568-B.3 requirements
- Compatible with Mini-Com(TM) products for complete modularity
- Improved protective cap fully surrounds split sleeve opening
- Choice of phosphor bronze or zirconia ceramic split sleeves to fit specific network requirements; zirconia ceramic split sleeves are required for single-mode applications
- Every adapter is laser marked with Q.C. number to assure 100% traceability
- Mini-Com(TM) SC Simplex Adapter Modules are commonly used with Mini-Com(TM) Patch Panels
- Mini-Com(TM) SC Duplex Adapter Modules are commonly used with Mini-Com(TM) Surface Mount Boxes
- SC simplex and duplex adapters are also available separately, and in patch panels or fiber adapter panels to provide a complete SC system solution
Specifications
Specifications
Panduit - CMSBUSCZBU - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CMSBUSCZBU |
| Color | Blue |
| Fiber Type | Single |
| Loaded | No |
| Number Of Ports | 1 |
| Termination | Sc |
| UNSPSC Code | 43223331 |
| Sub Brand | Mini-Com |
| Body Style | Simplex |
| Fiber Type | OS1/OS2 |
| Split Sleeve Material | Zirconia Ceramic |
| Overall Length (In.) | 1.93 |
| Overall Length (mm) | 49 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°C) | 0 |
| Minimum Operating Temperature (°F) | 32 |
| Maximum Installation Temperature (°C) | 60 |
| Maximum Installation Temperature (°F) | 140 |
| Minimum Installation Temperature (°C) | 0 |
| Minimum Installation Temperature (°F) | 32 |
| Standards Met | RoHS Compliant; exceeds TIA/EIA-568-B.3 requirements |
| Product Type | SC Adapter Module |
| Application | Mini-Com Modules, Patch Panels, Faceplates and Surface Mount Boxes for a complete SC system solution. |
| Adapter Color | Blue |
| Module Color | Blue |
| Connection Type | SC |
| Part Features | Integrated panel retention clip, Improved adapter protective cap design, Choice of phosphor bronze or zirconia ceramic split sleeves |
| UPC | 07498383243 |
Panduit - CMSBUSCZBU - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8536.70.0000 |
