Panduit CMSTZEI | Mini-Com ST Adapter, Multimode, Electric Ivory Mo...
Regular price
$19.78
Unit price
Brand: Panduit
|
SKU:
269756
Regular price
$19.78
Unit price
Description
Description

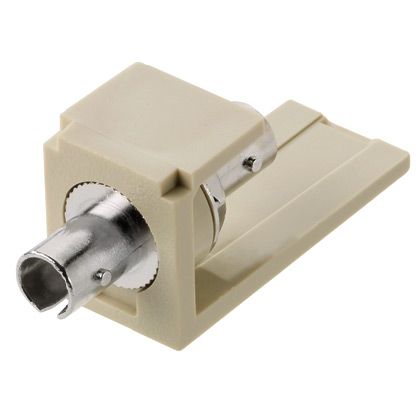

Panduit CMSTZEI | Mini-Com ST Adapter, Multimode, Electric Ivory Module
Our ST simplex fiber adapter modules offer reliable connections in a compact design, ideal for LAN and data center applications requiring a single fiber.
Module supplied with one ST multimode fiber optic adapter with phosphor bronze split sleeve, Off White.
Panduit Mini-Com Fiber Optic Adapter, ST Connector, 1 Ports, Multi-Mode Fiber, Electric Ivory
Panduit - CMSTZEI - Features
- TIA/EIA-604 FOCIS-2 compatible adapters
- Exceed TIA/EIA-568-B.3 requirements
- Compatible with Mini-Com(TM) products for complete modularity
- Choice of phosphor bronze or zirconia ceramic split sleeves to fit specific network requirements; zirconia ceramic split sleeves are recommended for OM3 multimode and OS1/OS2 single-mode applications
- Mini-Com(TM) ST Simplex Adapter Modules are commonly used with Mini-Com(TM) Patch Panels
- ST simplex adapters are also available separately, and in patch panels or fiber adapter panels to provide a complete ST system solution
Specifications
Specifications
Panduit - CMSTZEI - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CMSTZEI |
| Connector Type | St-Compatible |
| Type | Coupler / Adapter |
| UNSPSC Code | 26121600 |
| Sub Brand | Mini-Com |
| Body Style | Simplex |
| Split Sleeve Material | Zirconia Ceramic |
| Overall Length (In.) | 1.83 |
| Overall Length (mm) | 46.5 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°C) | 0 |
| Minimum Operating Temperature (°F) | 32 |
| Maximum Installation Temperature (°C) | 60 |
| Maximum Installation Temperature (°F) | 140 |
| Minimum Installation Temperature (°C) | 0 |
| Minimum Installation Temperature (°F) | 32 |
| Standards Met | RoHS Compliant; exceeds TIA/EIA-568-B.3 requirements |
| Product Type | ST Adapter Module |
| Application | Mini-Com Modules, Patch Panels, Faceplates and Surface Mount Boxes for a complete SC system solution. |
| Module Color | Electric Ivory |
| Connection Type | ST |
| UPC | 07498339616 |
Panduit - CMSTZEI - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
