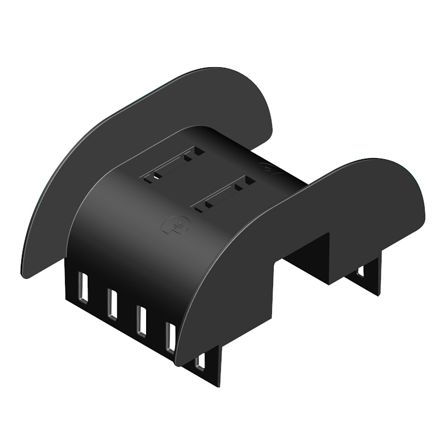

Panduit CMW2B Cable Management Double Waterfall Base
Regular price
$95.29
Unit price
Brand: Panduit
|
SKU:
404108
Regular price
$95.29
Unit price
Description
Description
Panduit CMW2B | DOUBLE WATERFALL BASE
Cable management double waterfall base. Used to maintain 1.75" (101.6mm) bend radius control vertically when transferring cable off either side of ladder rack rung. Mounts to ladder rack rung with standard cross section cable ties (included).
Panduit - CMW2B - Features
- Double waterfall base attaches to the rung on most standard ladder racks to allow bend radius control for cables coming from either direction
- UL94V-0 Rated Material
- Easy to install double waterfall base maintains bend radius control in a vertical direction to provide a TIA/EIA-568-B compliant installation
- Specification Description
- Cable Management Double Waterfall Base
- Material: Flame Retardant Glass Filled Nylon 6/6
- Color: Black
- Environment: Indoor
- Used With Cable Ties: S
- Dimension: 8.40 Inch Length x 5.48 Inch Width x 3.37 Inch Height (213.4 mm x 139.2 mm x 85.6 mm)
Specifications
Specifications
Panduit - CMW2B - Product Categories
- Wire Routing, Management & Protection
- Cable & Conduit Managers & Grommets
Panduit - CMW2B - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CMW2B |
| Item Description | DOUBLE WATERFALL BASE |
| Application | When Transferring Cable Off Either Side of Ladder Rack Rung |
| Product Type | Cable Management Accessories |
| Color | Black |
| Finish/Coating | Glass FIlled |
| For Use With | Standard Ladder Rack |
| Material | Glass Filled Nylon 6.6 |
| Overall Height (In.) | 3.37 |
| Overall Height (mm) | 85.6 |
| Overall Length (In.) | 8.4 |
| Overall Length (mm) | 213.4 |
| Overall Width (In.) | 5.48 |
| Overall Width (mm) | 139.2 |
| Standards Met | Meets UL94-V0 specificationsRoHS Compliant |
Panduit - CMW2B - Package Information
| UPC | 07498371799 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.1768 |
| Standard. Ctn. Quantity | 10 |
| Standard. Ctn. Volume (cf) | 1.7679 |
