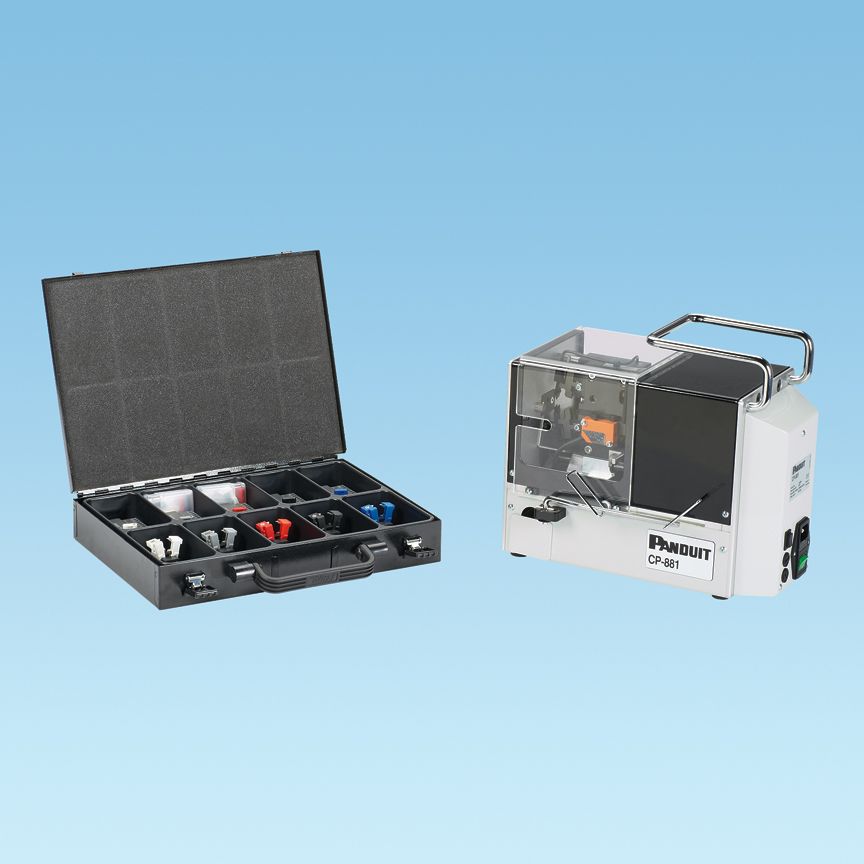

Panduit CP-881/E | Reel Fed Strip and Crimp Ferrule Tool (230 VAC) | UPC - 07498361166

A semi-automated tool that provides a quick three step process (wire stripping, ferrule placement, and ferrule crimping) with a cycle time of 1.5 seconds. This tool is used with Panduit continuously molded #20 – 14 AWG (0.5 – 2.5mm2) DIN ferrules on mini-reels of 500 – 5000 pieces for quality, medium to high volume terminations. Included with the tool are color coded die inserts that allow visual matching between parts and die sets for fast efficient change over and reduced mismatching. The tool is lightweight and has a built-in handle for easy movement of tool from workstation to workstation for maximum jobsite flexibility and productivity.

---

Panduit CP-881/E Key Specs

Tool Type	Semi-Automated Ferrule Strip and Crimp Tool
Maximum Wire Size (AWG)	14
Minimum Wire Size (AWG)	20
For Use With	Continuously Molded Ferrules
Crimp Cycle Time (s)	1.5
Overall Height (In.)	11
Overall Height (mm)	279
Overall Length (In.)	12.6
Overall Length (mm)	320
Overall Width (In.)	6.5
Overall Width (mm)	165
