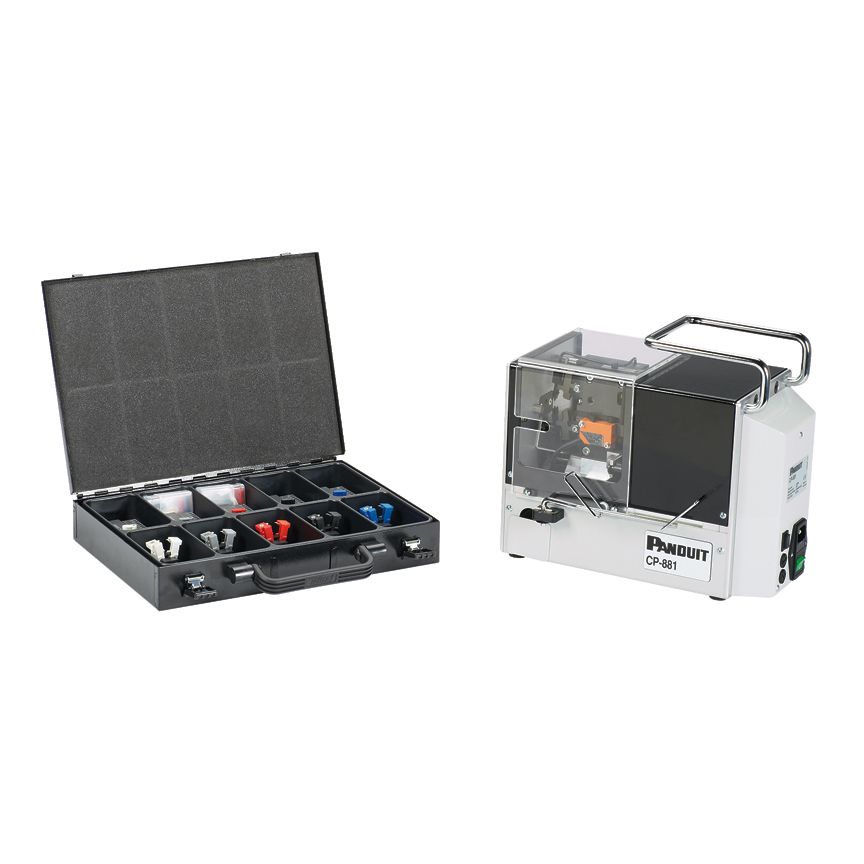

Panduit CP-881 | Reel Fed Strip and Crimp Ferrule Tool (120 VAC) | UPC - 07498363443

The CP-881 semi-automated, strip & crimp tool installs single-wire ferrules onto insulated wire. This tool is used with continuously molded ferrules on mini-reels for medium to high volume terminations and has a 1.5 second cycle time for high productivity. The color-coded die inserts are easily matched to compatible ferrules for fast, efficient changeover. The lightweight and easy movement from workstation to workstation, provides maximum job site flexibility.

---

Panduit CP-881 Key Specs

Compatible Connector	Select FSD series Ferrules on reel
Tool Type	Die Type
Maximum Metric Conductor Size (mm²)	1.5
Minimum Metric Conductor Size (mm²)	0.5
Maximum Wire Size (AWG)	#14
Minimum Wire Size (AWG)	#22
For Use With	CP-881-KIT4
Crimp Cycle Time (s)	1.5
Overall Height (In.)	11
Overall Height (mm)	279.4
Overall Length (In.)	12.6
Overall Length (mm)	320
Overall Width (In.)	6.5
Overall Width (mm)	165.1
Product Type	Reel Fed Strip and Crimp Ferrule Tool (120 VAC)
Weight (Kg)	12
Weight (lb)	26.5
Crimp Profile	Trapezoid
Part Features	Power supply: 110/120 VAC 60 Hz Weight: 26.5 lbs (12 kg) Dimensions: 12.60" x 11.00" x 6.50" (320.0mm x 279.4mm x 165.1mm) Ferrule product: Continuously molded ferrules, DIN 46228 part 4 Crimp shape: Trapezoidal Wire range: #20 – 14 AWG (0.5 – 2.5 mm2) Process cycle time: 1.5 seconds
