Brand: Panduit
|
SKU:
191241

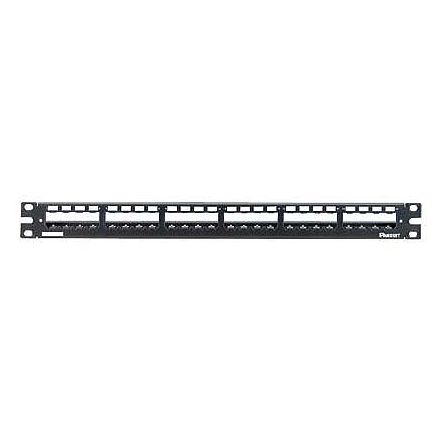

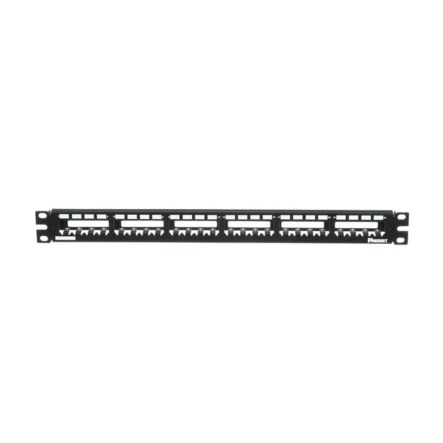

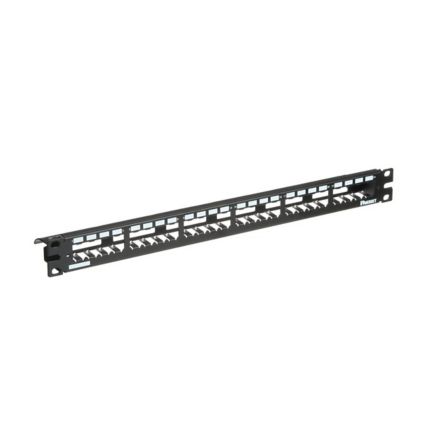

Panduit CP24WSBLY 24-Port all Metal Modular Patch Panel With strain relief bar, 1 RU
Regular price
$130.99
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit CP24WSBLY 24-Port all Metal Modular Patch Panel With strain...
Regular price
$130.99
Unit price
Description
Description
Panduit CP24WSBLY | Mini-Com All Metal Patch Panel, 24 port, 1 RU, BL
The Mini-Com All Metal Shielded Patch Panel accepts up to 24 Mini-Com Shielded Jack Modules in 1 RU. The panel has a flat design made of stainless steel construction and mounts to 19 inch and 23 inch racks and cabinets. It includes a built-in strain relief bar and grounding lugs. The panel has white write-on areas, can be identified with adhesive labels, and is black.
Panduit - CP24WSBLY - Features
- Accept Mini-Com(TM) Modules for shielded applications
- Provide write-on areas for port identification
- CPT removal tool allows easy moves, adds, and changes of shielded jack modules
- Mount to standard TIA/EIA 19"; rack or 23"; racks with optional extender bracket
Specifications
Specifications
Panduit - CP24WSBLY - Product Categories
- Copper Systems
- Modular Patch Panels
Panduit - CP24WSBLY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CP24WSBLY |
| Item Description | Mini-Com All Metal Patch Panel, 24 port, 1 RU, BL |
| Product Type | Flush Mounted |
| Patch Panel Style | Flat |
| Material | Stainless Steel |
| Shield Type | Shielded |
| Number of Ports | 24 |
| Module Type | Mini-Com |
| Number of Rack Units | 1 |
| Identification Type | Adhesive Label |
| Overall Width (In.) | 19 |
| Overall Width (mm) | 482.6 |
| Standards Met | RoHS Compliant |
| Overall Depth (In.) | 3.38 |
| Overall Depth (mm) | 85.85 |
| Sub Brand | Pan-Net |
| Overall Height (In.) | 1.72 |
| Overall Height (mm) | 43.68 |
| Color | Black |
| Includes | Built-In Strain Relief Bar |
Panduit - CP24WSBLY - Package Information
| UPC | 07498303638 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.2281 |
| Standard. Ctn. Quantity | 10 |
| Standard. Ctn. Volume (cf) | 2.2807 |
