Panduit CPM87S-C | Cable Tie Mount
Regular price
$100.52
Unit price
Brand: Panduit
|
SKU:
559882
Regular price
$100.52
Unit price
Description
Description

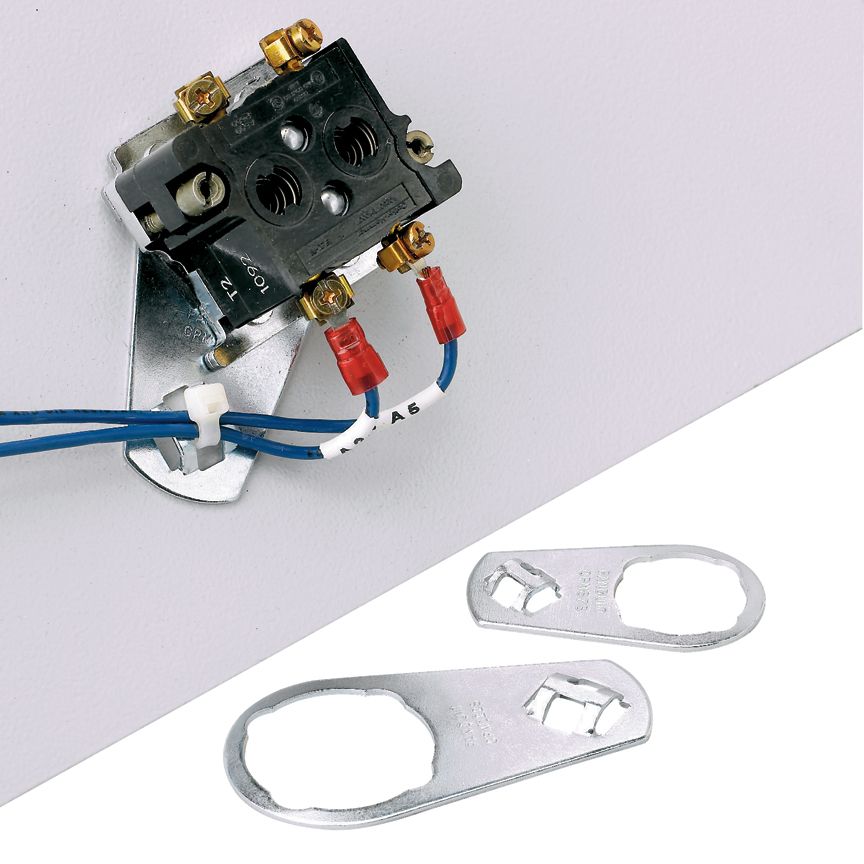

Panduit CPM87S-C | Cable Tie Mount
Ensure a reliable connections with our control panel mount. Ideal for high-strain areas, they secure cables behind switches, enhancing durability and compatibility with most designs.
Panduit Cable Tie Mount, 2-Way Tie Entry, Control Panel Switch Mounting, 0.19 in Maximum Tie Width, 2.01 in Base Length, 0.89 in Base Width, Steel, Silver
Panduit - CPM87S-C - Features
- Ideal for high strain areas where cable is routed from panel to panel door
- Compatible with most control panel switch designs
- Installed behind control panel switch
- For use with miniature, intermediate and standard cable ties
Specifications
Specifications
Panduit - CPM87S-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CPM87S-C |
| Note | Installed behind control panel switch. Compatible with most control panel switch designs. |
| Product Type | Cable Tie Mount |
| Application | (1) Installed Behind Control Panel Switch(2) Ideal for High Strain Areas Where Cable Is Routed From Panel To Panel Door(3) Compatible With Most Control Panel Switch Designs |
| Color | Silver |
| Environment | Indoor |
| Material | Steel/Zinc |
| Minimum Loop Tensile Strength (N) | 222 |
| Minimum Loop Tensile Strength (lb) | 50 |
| Mount Method | Screw-On |
| Overall Length (In.) | 2 |
| Overall Length (mm) | 51.1 |
| Overall Width (In.) | 1.1 |
| Overall Width (mm) | 28.8 |
| Overall Height (In.) | 0.16 |
| Overall Height (mm) | 4.2 |
| Standards Met | CE Compliant, RoHS Compliant |
| For Use With | Miniature, Intermediate, Standard Cable Ties |
| UPC | 07498360085 |
Panduit - CPM87S-C - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 3926.90.9985 |
Panduit - CPM87S-C - Videos
| Panduit CPM87S-C Video 1 | Click to View |
|---|
