Brand: Panduit
|
SKU:
181432

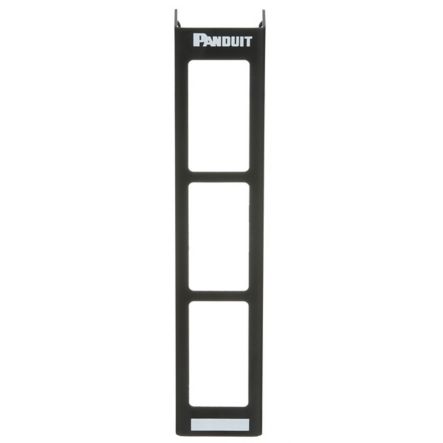

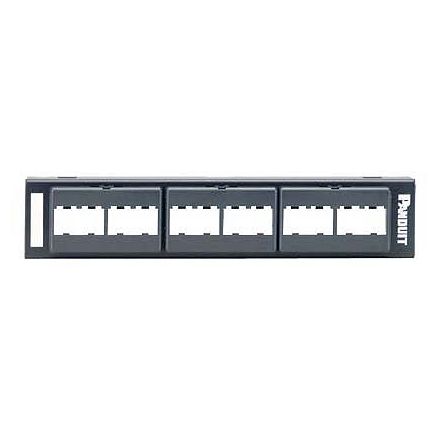

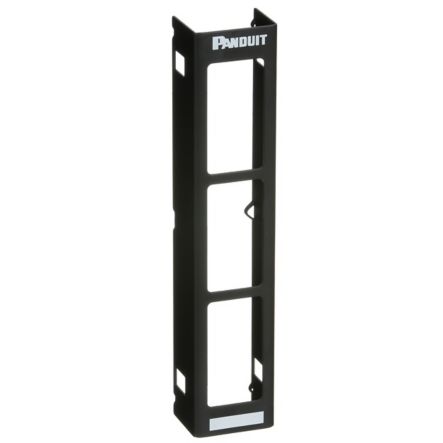

Panduit CPP12WBL 12-Port Patch Panel Supplied With three Factory Installed CFFP4 Snap-In Faceplates Mounts to Standard 89D Bracket (WB89D).
Regular price
$46.99
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit CPP12WBL 12-Port Patch Panel Supplied With three Factory In...
Regular price
$46.99
Unit price
Description
Description
Panduit CPP12WBL | Mini-Com, Flat,Unshielded, Patch Panel for 89D, 12 Port, Black
The Mini-Com Faceplate Modular Patch Panel accepts up to 12 Mini-Com Modules for unshielded applications, and mounts to 89D bracket (sold separately). The patch panel offers front access and can be identified with adhesive labels and is black.
Panduit - CPP12WBL - Features
- Release snap feature on faceplate allows simple front access for termination and accessibility to installed modules
- Accept Mini-Com(TM) Modules for UTP, fiber optic, and audio/video, which snap in and out for easy moves, adds, and changes
- Mount directly onto wall
- Modular design for easy cabling revisions
Specifications
Specifications
Panduit - CPP12WBL - Product Categories
- Copper Systems
- Modular Patch Panels
Panduit - CPP12WBL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CPP12WBL |
| Item Description | Mini-Com, Flat,Unshielded, Patch Panel for 89D, 12 Port, Black |
| Product Type | Front Access |
| Patch Panel Style | Flat |
| Material | CRS |
| Connector Type | Unshielded |
| Number of Ports | 12 |
| Module Type | Mini-Com |
| Identification Type | Adhesive Label |
| Overall Width (In.) | 2.04 |
| Overall Width (mm) | 51.81 |
| Standards Met | RoHS Compliant |
| Overall Depth (In.) | 1.91 |
| Overall Depth (mm) | 48.51 |
| Sub Brand | Pan-Net |
| Overall Height (In.) | 10 |
| Overall Height (mm) | 254 |
| Color | Black |
Panduit - CPP12WBL - Package Information
| UPC | 07498361702 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0840 |
| Standard. Ctn. Quantity | 10 |
| Standard. Ctn. Volume (cf) | 0.8395 |
