Brand: Panduit
|
SKU:
175037

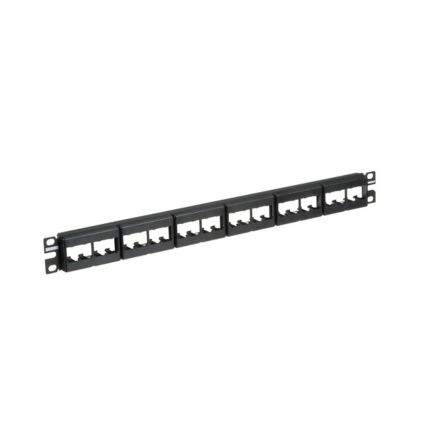

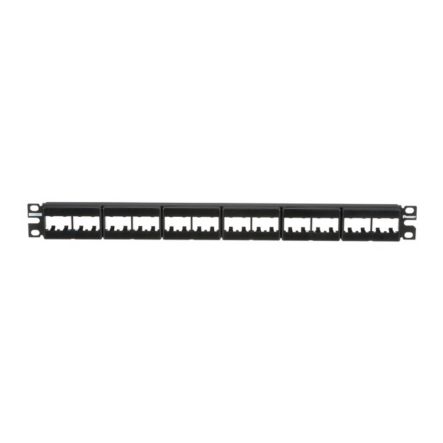

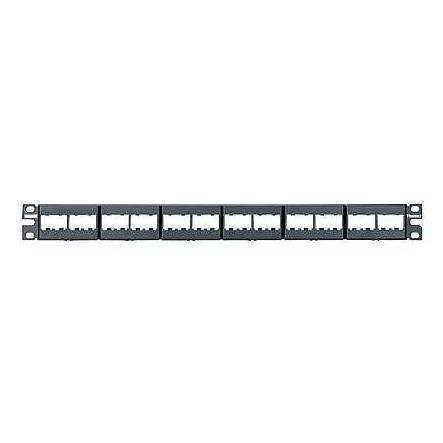

Panduit CPP24WBLY 24-Port Patch Panel Supplied With Six Factory Installed CFFP4 Type Front Removable Snap-In Faceplates
Regular price
$65.28
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit CPP24WBLY 24-Port Patch Panel Supplied With Six Factory Ins...
Regular price
$65.28
Unit price
Brand: Panduit
|
SKU:
175037
Regular price
$65.28
Unit price
Description
Description
Panduit CPP24WBLY | Mini-Com Patch Panel, 24 Port, 1 RU, BL
The Mini-Com Faceplate Modular Patch Panel accepts up to 24 Mini-Com Modules for unshielded applications in 1 RU, and mounts to 19 inch and 23 inch racks and cabinets. The panel offers front access and can be identified with adhesive labels and is black.
Panduit - CPP24WBLY - Features
- 24 port patch panel supplied with 6 CFFP4 type snap-in faceplates, Accept Mini-Com Modules for UTP (including Category 5e and Category 6), Fiber Optic and Coax, Mounts to standard EIA 19"; or 23"; racks, Black.
- Release snap feature on faceplate allows front access to installed modules
- Accept Mini-Com(TM) Modules for UTP, fiber optic, and audio/video, which snap in and out for easy moves, adds, and changes
- Label versions available for easy port identification; replacement label/label covers available
- Mount to standard EIA 19"; racks or 23"; racks with optional extender brackets
- Angled patch panels facilitate proper bend radius control and minimize the need for horizontal cable managers
- Specification Description
- Modular Patch Panel
- Color: Black
- Identification: Optional Adhesive
- Number Of Module Spaces: 24
- Number Of Ports: 24
- Number Of Rack Spaces: 1
- Patch Panel Style: Flat
- Type: Unshielded
- Dimension: 1.72 Inch Height x 19 Inch Width x 0.88 Inch Depth (43.7 mm x 482.6 mm x 22.4 mm)
Specifications
Specifications
Panduit - CPP24WBLY - Product Categories
- Copper Systems
- Modular Patch Panels
Panduit - CPP24WBLY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CPP24WBLY |
| Item Description | Mini-Com Patch Panel, 24 Port, 1 RU, BL |
| Product Type | Front Access |
| Patch Panel Style | Flat |
| Material | CRS |
| Shield Type | Unshielded |
| Number of Ports | 24 |
| Module Type | Mini-Com |
| Number of Rack Units | 1 |
| Identification Type | Adhesive Label |
| Overall Width (In.) | 19 |
| Overall Width (mm) | 482.6 |
| Standards Met | RoHS Compliant |
| Overall Depth (In.) | 0.88 |
| Overall Depth (mm) | 22.35 |
| Sub Brand | Pan-Net |
| Overall Height (In.) | 1.72 |
| Overall Height (mm) | 43.68 |
| Color | Black |
Panduit - CPP24WBLY - Package Information
| UPC | 07498303655 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0427 |
| Standard. Ctn. Quantity | 10 |
| Standard. Ctn. Volume (cf) | 0.4267 |
