Panduit CPP48FMWBLY | Mini-Com Flush Patch Panel, 48 Port, 2 RU, BL
Regular price
$126.66
Unit price
Brand: Panduit
|
SKU:
273856
Regular price
$126.66
Unit price
Description
Description

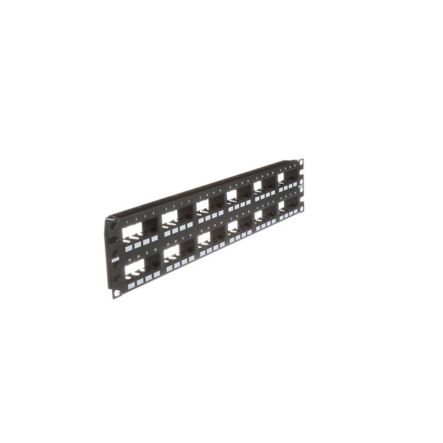

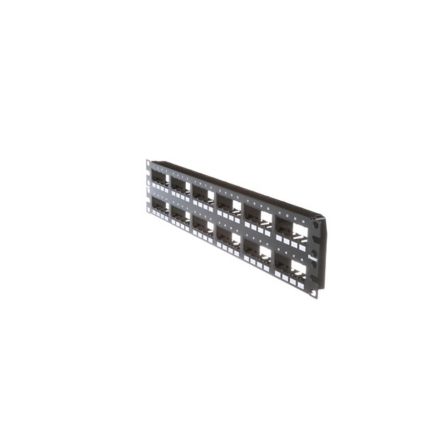

Panduit CPP48FMWBLY | Mini-Com Flush Patch Panel, 48 Port, 2 RU, BL
The Mini-Com Flush Mount Modular Patch Panel accepts up to 48 Mini-Com Modules for unshielded applications in 2 RU, and mounts to 19 inch and 23 inch racks and cabinets. The panel mounts flush with the rack and can be identified with adhesive labels and is black.
Panduit - CPP48FMWBLY - Features
- Rear mounted faceplates allow modules to be flush with front of patch panel
- Accept Mini-Com(TM) Modules for UTP, fiber optic, and audio/video, which snap in and out for easy moves, adds, and changes
- Pre-printed numbers above each port for easy identification
- White write-on areas for port and/or panel identification
- Mount to standard EIA 19"; racks or 23"; racks with optional extender brackets
- Angled patch panels facilitate proper bend radius control and minimize the need for horizontal cable managers
Specifications
Specifications
Panduit - CPP48FMWBLY - Product Categories
- Copper Systems
- Modular Patch Panels
Panduit - CPP48FMWBLY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CPP48FMWBLY |
| Item Description | Mini-Com Flush Patch Panel, 48 Port, 2 RU, BL |
| Product Type | Flush Mounted |
| Patch Panel Style | Flat |
| Material | CRS |
| Shield Type | Unshielded |
| Number of Ports | 48 |
| Module Type | Mini-Com |
| Number of Rack Units | 2 |
| Identification Type | Adhesive Label |
| Overall Width (In.) | 19 |
| Overall Width (mm) | 482.6 |
| Overall Depth (In.) | 1.04 |
| Overall Depth (mm) | 26.41 |
| Sub Brand | Pan-Net |
| Overall Height (In.) | 3.47 |
| Overall Height (mm) | 88.13 |
| Color | Black |
Panduit - CPP48FMWBLY - Package Information
| UPC | 07498303658 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.2282 |
| Standard. Ctn. Quantity | 10 |
| Standard. Ctn. Volume (cf) | 2.2819 |
