Brand: Panduit
|
SKU:
341345
Panduit CPP48HDEWBL | Mini-Com Patch Panel, 48 Port, 1 RU, BL
Regular price
$190.05
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit CPP48HDEWBL | Mini-Com Patch Panel, 48 Port, 1 RU, BL
Regular price
$190.05
Unit price
Description
Description

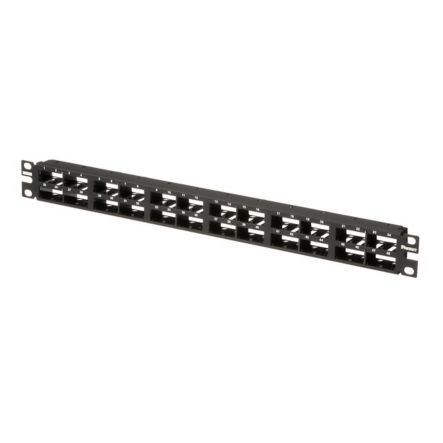

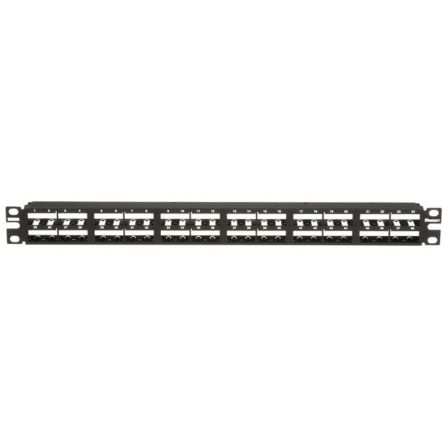

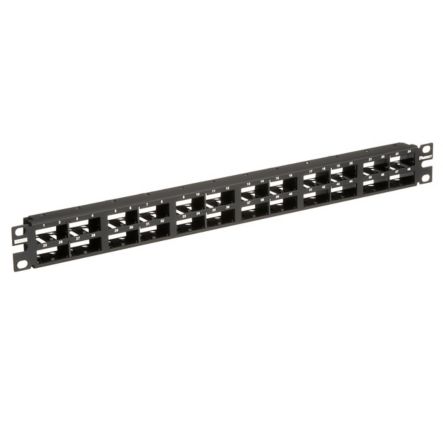

Panduit CPP48HDEWBL | Mini-Com Patch Panel, 48 Port, 1 RU, BL
The Mini-Com High Density Modular Patch Panel accepts up to 48 Mini-Com Modules for unshielded applications in 1 RU and mounts to 19 inch and 23 inch racks and cabinets. The panel can be identified with adhesive labels and is black.
Panduit - CPP48HDEWBL - Features
- 48-port high density patch panel with enhanced labeling features and compatibility with Panduit hand-held printers. (Only accepts Mini-Com Modules for UTP applications).
- Accept Mini-Com(TM) Modules for UTP, fiber optic, and audio/video, which snap in and out for easy moves, adds, and changes
- Conserve valuable rack space, but may be limited to specific modules (UTP)
- Pre-printed numbers above each port for easy identification
- Mount to standard EIA 19"; racks or 23"; racks with optional extender brackets
- Angled patch panels facilitate proper bend radius control and minimize the need for horizontal cable managers
- Enhanced label version of 48 port high density patch panels only accept UTP modules
Specifications
Specifications
Panduit - CPP48HDEWBL - Product Categories
- Copper Systems
- Modular Patch Panels
Panduit - CPP48HDEWBL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CPP48HDEWBL |
| Item Description | Mini-Com Patch Panel, 48 Port, 1 RU, BL |
| Product Type | Flush Mounted |
| Patch Panel Style | Flat |
| Material | CRS |
| Shield Type | Unshielded |
| Number of Ports | 48 |
| Module Type | Mini-Com |
| Number of Rack Units | 1 |
| Identification Type | Adhesive Label |
| Overall Width (In.) | 18.98 |
| Overall Width (mm) | 482.09 |
| Standards Met | RoHS Compliant |
| Overall Depth (In.) | 1.09 |
| Overall Depth (mm) | 27.68 |
| Sub Brand | Pan-Net |
| Overall Height (In.) | 1.72 |
| Overall Height (mm) | 43.68 |
| Color | Black |
Panduit - CPP48HDEWBL - Package Information
| UPC | 07498391252 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.1619 |
| Standard. Ctn. Quantity | 10 |
| Standard. Ctn. Volume (cf) | 1.6189 |
