Panduit CPP48HDVNSWBL | Mini-Com Patch Panel, w/VN 48 Port, 1 RU, BL
Description
Description

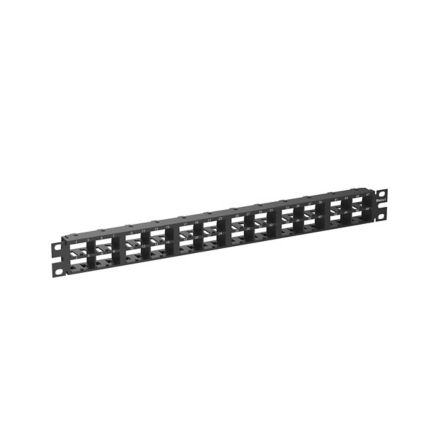

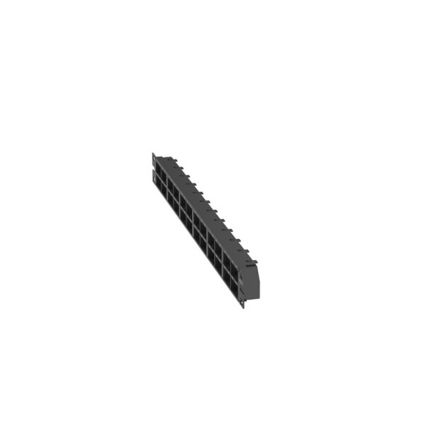

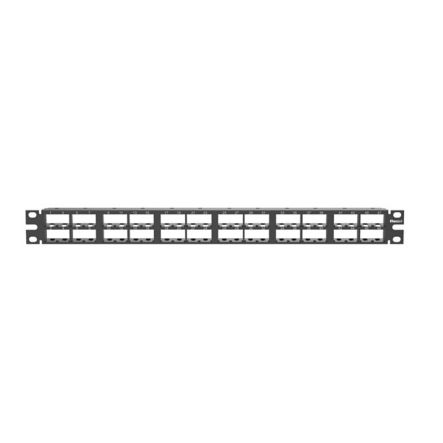

The Mini-Com High Density Modular Patch Panel accepts up to 48 Mini-Com Modules for unshielded applications in 1 RU and mounts to 19 inch and 23 inch racks and cabinets. The panel includes pre-printed numbers that follow a vertical sequence and is black.
Accept Mini-Com Modules for UTP, fiber optic, and audio/video, which snap in and out for easy moves, adds, and changes, Conserve valuable rack space, but may be limited to specific modules (UTP), Pre-printed numbers above each port for easy identification, Mount to standard EIA 19 Inch racks or 23 Inch racks with optional extender brackets, Angled patch panels facilitate proper bend radius control and minimize the need for horizontal cable managers, Enhanced label version of 48-port high density patch panels only accept UTP modules
Specifications
Specifications
Panduit - CPP48HDVNSWBL - Product Categories
- Copper Systems
- Modular Patch Panels
Panduit - CPP48HDVNSWBL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CPP48HDVNSWBL |
| Item Description | Mini-Com Patch Panel, w/VN 48 Port, 1 RU, BL |
| Product Type | Flush Mounted |
| Patch Panel Style | Flat |
| Material | CRS |
| Shield Type | Unshielded |
| Number of Ports | 48 |
| Module Type | Mini-Com |
| Number of Rack Units | 1 |
| Identification Type | Adhesive Label |
| Overall Width (In.) | 19 |
| Overall Width (mm) | 482.6 |
| Standards Met | RoHS Compliant |
| Overall Depth (In.) | 1.08 |
| Overall Depth (mm) | 27.43 |
| Sub Brand | Pan-Net |
| Overall Height (In.) | 1.72 |
| Overall Height (mm) | 43.68 |
| Color | Black |
Panduit - CPP48HDVNSWBL - Package Information
| UPC | 07498378661 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.1619 |
| Standard. Ctn. Quantity | 10 |
| Standard. Ctn. Volume (cf) | 1.6189 |
