Panduit CRS4-125-X | Stackable Cable Rack Spacer, Black
Regular price
$208.04
Unit price
Description
Description

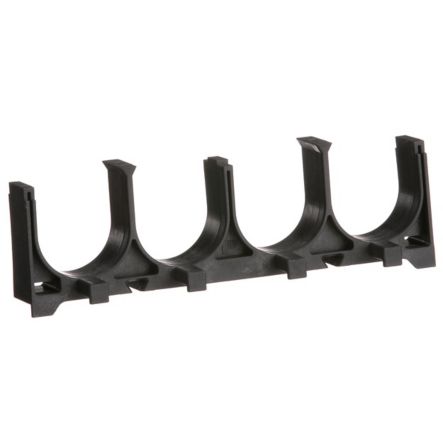

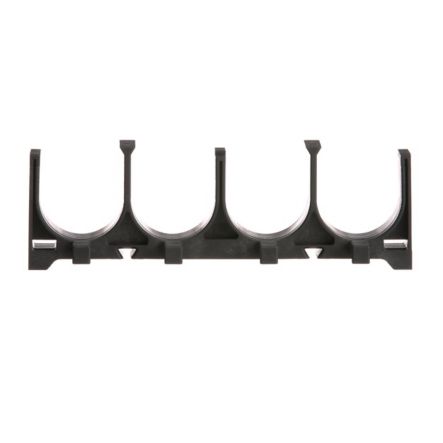

Panduit CRS4-125-X | Stackable Cable Rack Spacer, Black

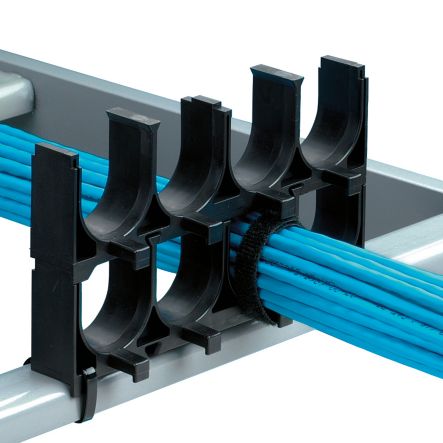

The four-space stackable cable rack spacer maximizes rack space by stacking products for maximum cable capacity. It is constructed of glass-filled flame retardant nylon 6.6. It accepts cable up to 1.25 inches (31.8mm) in diameter.
Panduit - CRS4-125-X - Features
- Separates and supports cable and prevents pinch points between the bottom row of cable and the rung as a result of the weight of multiple cable layers applied on top of each other
- Maximize rack space by stacking products for maximum cable capacity
- Provides an alternative to lacing cord by allowing user to secure cable to spacer to prevent movement of cable
- Provides attractive installations
Specifications
Specifications
Panduit - CRS4-125-X - Product Categories
- Wire Routing, Management & Protection
- Cable & Conduit Managers & Grommets
Panduit - CRS4-125-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CRS4-125-X |
| Item Description | Stackable Cable Rack Spacer, Black |
| Application | (1) To Eliminate Pinch Points, (2) Provides an Aesthetically Pleasing Installation, (3) Keeps Cables Segregated to Allow Installers to Quickly Identify the Location of the Cable |
| Product Type | Cable Management Accessories |
| Color | Black |
| Finish/Coating | Glass Filled |
| For Use With | CRS4 |
| Material | Glass Filled Flame Retardant Nylon 6.6 |
| Overall Height (In.) | 1.55 |
| Overall Height (mm) | 39.4 |
| Overall Length (In.) | 1.18 |
| Overall Length (mm) | 30 |
| Overall Width (In.) | 5.24 |
| Overall Width (mm) | 133.1 |
| Standards Met | RoHS Compliant |
| Compatible Hole Diameter (In.) | 1.25 |
| Compatible Hole Diameter (mm) | 31.75 |
| Inside Diameter (In.) | 1.15 |
| Inside Diameter (mm) | 29.2 |
Panduit - CRS4-125-X - Package Information
| UPC | 07498379340 |
|---|---|
| Standard Package Quantity | 10 |
| Standard Package Volume (cf) | 0.1320 |
| Standard. Ctn. Quantity | 100 |
| Standard. Ctn. Volume (cf) | 1.3201 |
