Panduit CSB42-230-330-Q | CSB42-230-330-Q Cushion Sleeve, Individual, TPU, 376mm L, 42.7mm W, PK25
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit CSB42-230-330-Q | CSB42-230-330-Q Cushion Sleeve, Individua...
Description
Description

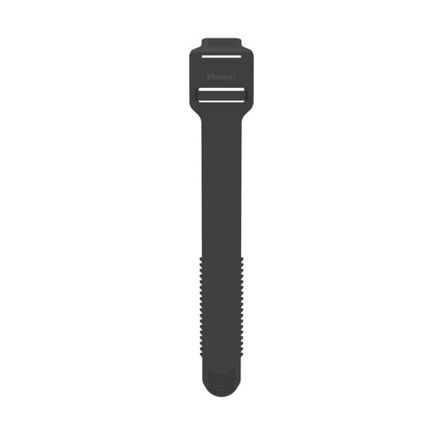

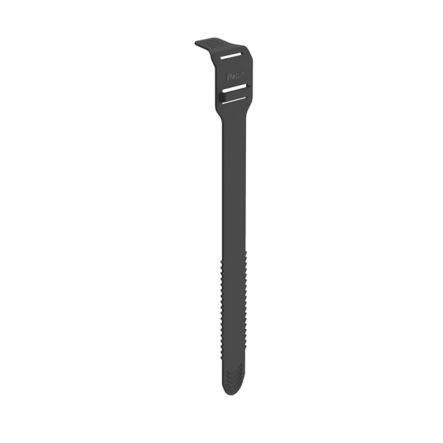

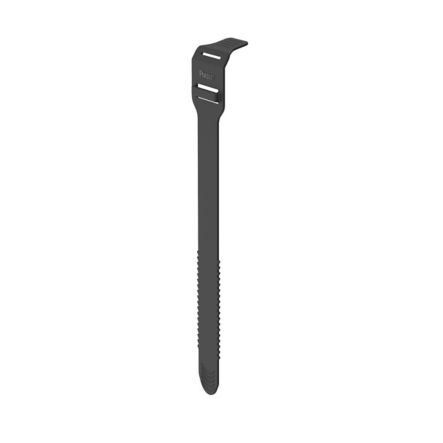

The CSB42-230-330-Q Individual Cushion Sleeving is designed for use with metal locking, buckle strap, and clamping cable cleats to help protect in the event of a short circuit fault, minimizing disruption and damage to personnel and property. Suitable for use in harsh environments and applications. Features include self-locking design, black-colored LSHF TPE material, 42.7mm width, 100mm max bundle diameter capacity, and 25 PCS packages.
Panduit CSB42-230-330-Q | Cushion Sleeve,Individual,Tpu,376Mm L,42.7Mm W,Pk25
Panduit - CSB42-230-330-Q - Features
- The CSB42-230-330-Q Individual Cushion Sleeving is designed for use with metal locking, buckle strap, and clamping cable cleats to help protect in the event of a short circuit fault, minimizing disruption and damage to personnel and property. Suitable for use in harsh environments and applications. Features include self-locking design, black-colored LSHF TPE material, 42.7mm width, 100mm max bundle diameter capacity, and 25 PCS packages.
Specifications
Specifications
Panduit - CSB42-230-330-Q - Product Categories
- Wire Routing, Management & Protection
- Cable Tie Installation Tools & Accessories
Panduit - CSB42-230-330-Q - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CSB42-230-330-Q |
| Item Description | CSB42-230-330-Q Cushion Sleeve, Individual, TPU, 376mm L, 42.7mm W, PK25 |
| Product Type | Cushion Sleeve |
| Color | Black |
| Environment | Indoor/Outdoor |
| For Use With | Cable Cleats, MLT Ties, and MS Strapping |
| Material | TPU Low Smoke, Halogen Free |
| Maximum Installation Temperature (°C) | 90 |
| Minimum Installation Temperature (°C) | -40 |
| Maximum Installation Temperature (°F) | 194 |
| Minimum Installation Temperature (°F) | -40 |
| Maximum Operating Temperature (°C) | 90 |
| Minimum Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°F) | 194 |
| Minimum Operating Temperature (°F) | -40 |
| Overall Height (In.) | 0.1 |
| Overall Height (mm) | 2.5 |
| Overall Length (In.) | 14.8 |
| Overall Length (mm) | 376 |
| Overall Width (In.) | 1.68 |
| Overall Width (mm) | 42.7 |
| Resistance Properties | Flammability Rating UL94 V-0 |
| Part Features | Panduit cable cleats,cable tray,short circuit protection,power cable,cable fixings,electrical cable size,cable clamp,cable duct,cable standards,cable cleat size, metal strap,protecting against short circuits,electrical infrastructure reliability, stainless steel strapping, cleat calculator,cable cleat accessories, stainless steel cable cleat, cushion sleeve, polymer, low smoke halogen free, individual cushion sleeve, discrete length cushion sleeve, pre-cut cushion sleeve |
Panduit - CSB42-230-330-Q - Package Information
| UPC | 61305680362 |
|---|---|
| Standard Package Quantity | 25 |
| Standard Package Volume (cf) | 0.3523 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
