Brand: Panduit
|
SKU:
1026533

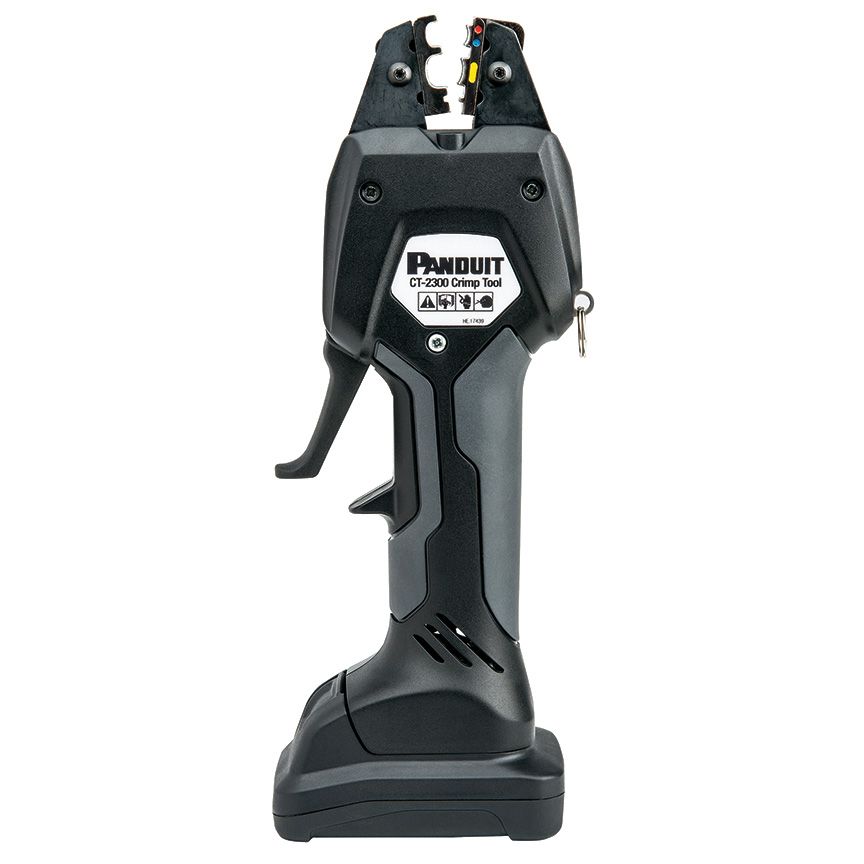

Panduit CT-2300/ST | Crimping Tool | UPC - 61305617215
Regular price
$1,172.90
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit CT-2300/ST | Crimping Tool | UPC - 61305617215
Regular price
$1,172.90
Unit price
Description
Description
Panduit BlackFin Micro Crimping Tool Kit, Battery Powered, Kit, Series: CT-2300, Crimping Capacity: 22 to 10 AWG, 15 kN Crimping Force, Lithium-Ion Battery, 1.5 Ah Battery, Soft Rubber Inlay Comfort Grip Handle, Black, 3.7 in Overall Length, 2-1/2 in W x 10 in H
Features + Benefits
- The Panduit BlackFin battery powered micro-crimping tool crimps 65% faster than a manual crimping tool thanks to an innovative trigger with power sensing technology
- The lightweight, ergonomic design requires less hand force, reducing the risk of injury
Panduit CT-2300/ST Key Specs
| Compatible Connector | Terminals, Splices, Disconnects, and Ferrules |
| Tool Type | Die Type |
| Maximum Wire Size (AWG) | #8 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Maximum Copper Conductor Size (AWG) | #8 |
| Minimum Wire Size (AWG) | #22 |
| For Use With | CD-525, CD-550, CD-570, CD-090 crimp dies |
| Includes | Battery Operated Crimp Tool, Rechargeable Battery (Lithium-Ion 10.8VDC, 1.5Ah),Battery Charger – Regional (reference images below for regional charger plug type)1 Plastic Tool Case with Die Storage. |
| Crimp Force (ton) | 1.7 |
| Crimp Cycle Time (s) | 1.5 |
| Battery Charge Time (min) | 15 |
| Battery Chemistry | Lithium-Ion |
| Overall Height (In.) | 3.7 |
| Overall Height (mm) | 93 |
| Overall Length (In.) | 10 |
| Overall Length (mm) | 253 |
| Overall Width (In.) | 2.5 |
| Overall Width (mm) | 64 |
| Standards Met | IEC/EN 62841-1, EN61000, UL 60745-1, C22.2 607451 |
| Product Type | Crimping Tool |
| Tool Configuration | In-Line Design |
| Weight (Kg) | 0.96 |
| Weight (lb) | 2.1 |
| Crimp Profile | Circumferential |
| Base Material | Steel |
| Battery Voltage (V dc) | 10.8 |
| Part Features | Includes tool, one 10.8 Volt 1.5Ah Li-On batteries, 120V battery charger and molded carrying case. |
Panduit CT-2300/ST Data Sheets
| Product Bulletins | BlackFin Installation Tools: ELCB20 | Download and View |
| Installation Documents | Crimping Head and Crimp Die Insert Installation Instructions - PA25711A01 | Download and View |
| Manuals | CT-2300 Series Instruction Manual | Download and View |
| Product Bulletins | Ferrule Installation Tools | Download and View |
| Part Drawings | CUST DWG, CD-550 DIE SET | Download and View |
| Part Drawings | CUST DWG, CD-525 DIE SET | Download and View |
| Part Drawings | CUST DWG, CD-570 DIE SET | Download and View |
