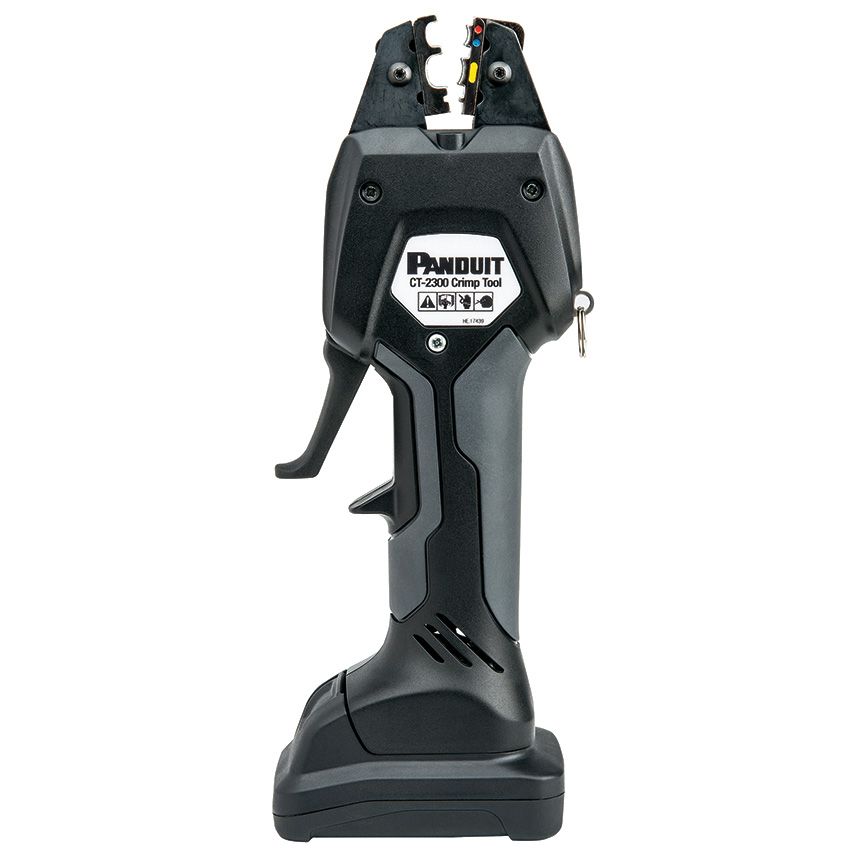

Panduit CT-2300/UK | Crimping Tool | UPC - 61305617217

The Panduit BlackFin Battery Powered Micro-crimping Tool crimps 65 percent faster than a manual crimping tool thanks to an innovative trigger with power sensing technology. The lightweight, ergonomic design requires less hand force, reducing the risk of injury. The 4.7" (120mm) jaw with a force of 1.7 tons crimps a range of #22 – 10 AWG terminals, #26 – 10 AWG single wire ferrules, #22 – 12 AWG twin wire ferrules, and #14 – 10 AWG copper lugs. Includes battery powered micro-crimping tool, one 10.8 V, 1.5 Ah Li-ion battery, UK 230 V battery charger with Type G plug and molded carrying case. Crimp dies (Panduit CD-525, CD-550, CD-570 and CD-090) sold separately.

---

Panduit CT-2300/UK Key Specs

Tool Type	Die Type
Universal Tool Capabilities	Wire Cutting
Maximum Wire Size (AWG)	10
Minimum Wire Size (AWG)	22
Sub Brand	Crimping Tool
For Use With	Crimp Dies
Includes	Battery Operated Crimp Tool, Rechargeable Battery (Lithium-Ion 10.8VDC, 1.5Ah),Battery Charger – Regional (reference images below for regional charger plug type) 1 Plastic Tool Case with Die Storage.
Crimp Force (ton)	1.7
Crimp Cycle Time (s)	1.5
Battery Charge Time (min)	15
Battery Chemistry	Lithium-Ion
Insulated Tool Head	Yes
Overall Height (In.)	3.7
Overall Height (mm)	93
Overall Length (In.)	10
Overall Length (mm)	253
Overall Width (In.)	2.5
Overall Width (mm)	63.5
Standards Met	Certified to IEC/EN 62841-1 and tested to EN61000
Product Type	Crimping Tool
Tool Configuration	In-Line Design
Weight (Kg)	1
Weight (lb)	2.11
Crimp Profile	U-shape
