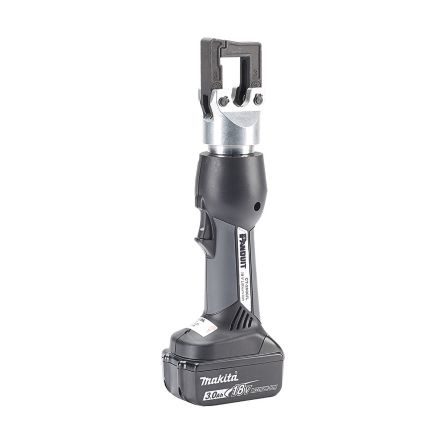

Panduit CT-2600/LAUS | Crimping Tool
Description
Description
The Panduit BlackFin Crimping Tool quickly terminates wires with just a push of a button – perfect for single-handed use. Users can even change dies quickly thanks to a flip-top crimp head. With a force of 4.0 tons, the tool crimps #8 – 2 AWG large insulated and non-insulated terminals and butt splices, #8 AWG – 300 kcmil copper code lugs, and #6 – 2/0 AWG AI lugs. Includes battery powered crimping tool, two 3.0 Ah Li-ion battery cartridges, 230 V charger with AUS Type I plug, and a molded carrying case. Crimp dies (CD-2600, KC4 and KA44) sold separately.
Panduit CT-2600/LAUS | CRIMP | DIE-TYPE, LITIUM ION
Specifications
Specifications
Panduit - CT-2600/LAUS - Product Categories
- Wire Termination
- Crimping Tools, Pumps & Accessories
Panduit - CT-2600/LAUS - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CT-2600/LAUS |
| Item Description | Crimping Tool |
| Minimum Copper Conductor Size (AWG) | 8 |
| Crimp Force (ton) | 4 |
| Crimp Cycle Time (s) | 4 |
| Battery Charge Time (min) | 22 |
| Overall Height (In.) | 2.87 |
| Overall Height (mm) | 73 |
| Overall Length (In.) | 13.25 |
| Overall Length (mm) | 337 |
| Overall Width (In.) | 4.5 |
| Overall Width (mm) | 114 |
| Standards Met | Certified to IEC/EN 62841-1 and tested to EN61000 |
| Product Type | Crimping Tool |
| Weight (Kg) | 1.6 |
| Weight (lb) | 3.5 |
| Crimp Profile | Flip-Top Crimp Head |
| Base Material | steel |
| Battery Voltage (V) | 230 |
| Part Features | 4.0 Ton Battery Powered CE Approved crimping tool w / two 3.0 Ah Makita Li-On batteries, EU 230 vac Charger with Type I Plug and molded carrying case |
Panduit - CT-2600/LAUS - Package Information
| UPC | 61305623949 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 1.6654 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
