Panduit CT-2600/LINT | NA | UPC - 61305616916

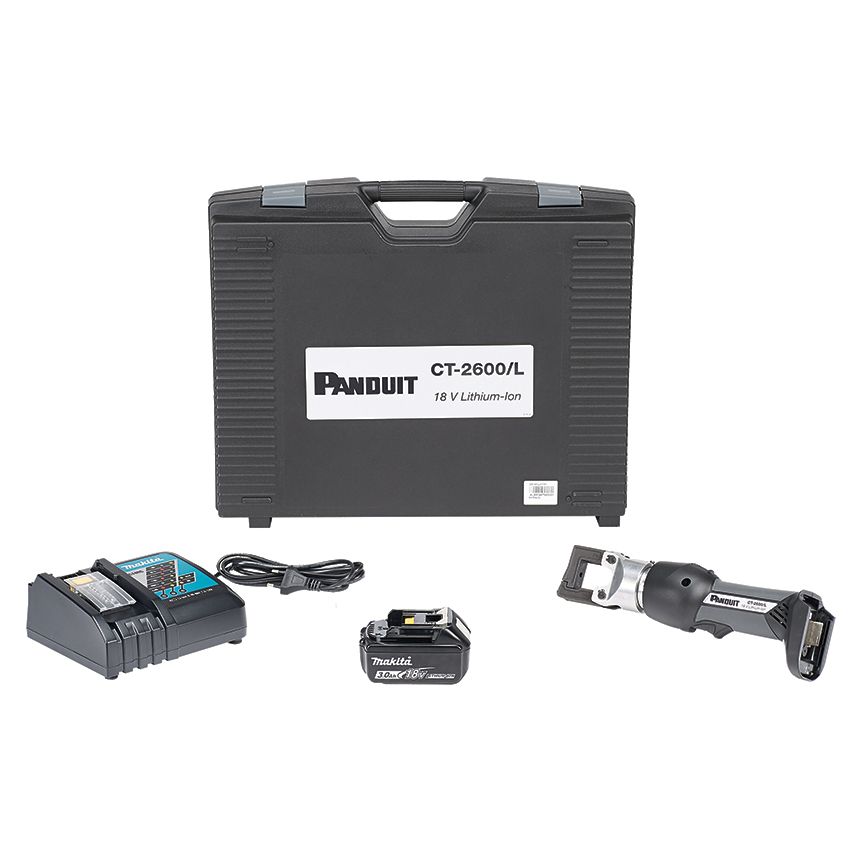

The Panduit BlackFin Crimping Tool quickly terminates wires with just a push of a button – perfect for single-handed use. Users can even change dies quickly thanks to a flip-top crimp head. With a force of 4.0 tons, the tool crimps #8 – 2 AWG large insulated and non-insulated terminals and butt splices, #8 AWG – 300 kcmil copper code lugs, and #6 – 2/0 AWG AI lugs. Includes battery powered crimping tool, two 3.0 Ah Li-ion battery cartridges, 230 V charger with International Type C plug, and a molded carrying case. Crimp dies (CD-2600, KC4 and KA44) sold separately.

---

Panduit CT-2600/LINT Key Specs

Note	CT-2600/LINT Replaces CT-2600/E
Maximum Wire Size (AWG)	6
Minimum Copper Conductor Size (AWG)	8
Minimum Wire Size (AWG)	8
Sub Brand	Crimping Tool
Crimp Force (ton)	4
Crimp Cycle Time (s)	4
Battery Charge Time (min)	22
Overall Height (In.)	2.87
Overall Height (mm)	73
Overall Length (In.)	13.25
Overall Length (mm)	337
Overall Width (In.)	4.5
Overall Width (mm)	114
Standards Met	Certified to IEC/EN 62841-1 and tested to EN61000
Weight (Kg)	1.6
Weight (lb)	3.5
Base Material	steel
Battery Voltage (V)	230
Part Features	4.0 Ton Battery Powered CE Approved crimping tool w / two 3.0 Ah Makita Li-On batteries, EU 230 vac Charger with Type C Plug and molded carrying case.
