Panduit CT-2600/TO | NA | UPC - 61305617440

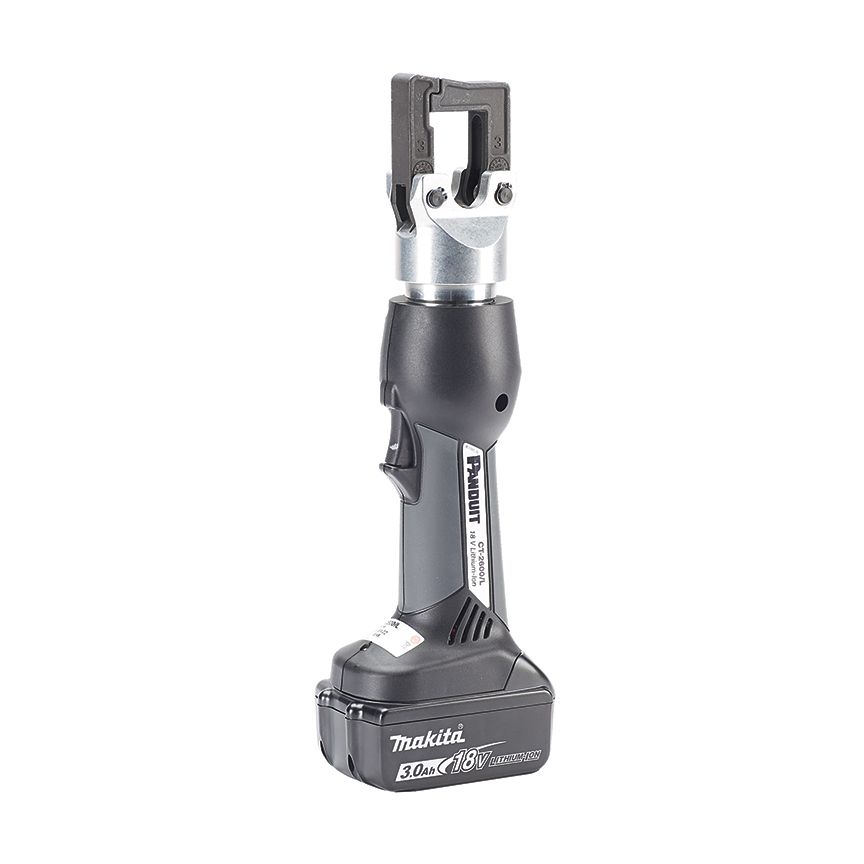

Panduit BlackFin Crimping Tool, Battery Powered Hydraulic Die Type In-Line, Bare Tool, Series: CT-2600, Crimping Capacity: 8 AWG to 300 kcmil Cu, 6 AWG to 2/0 AWG Al, 35.6 kN Crimping Force, Lithium-Ion Battery, Soft Rubber Inlay Comfort Grip, Electronic Control, 4-1/2 in Overall Length, 13-1/4 in H x 2-7/8 in W

Features + Benefits

• The Panduit BlackFin crimping tool quickly terminates wires with just a push of a button - perfect for single-handed use
• Users can even change dies quickly thanks to a flip-top crimp head
• With a force of 4 ton the tool crimps #8 to 2 AWG large insulated and non-insulated terminals and butt splices, #8 AWG to 300 kcmil copper code lugs and #6 to 2/0 AWG AI lugs
• Quick 3 to 4 sec crimping cycle, depending on the cross-section, results in less time to crimp terminals compared to conventional methods
• Compact, portable and lightweight 5.5 lb design provides maximum productivity and ease of use in continuous workflow operations
• Ram retracts automatically to signal crimp is complete
• Retractable slide button allows ram to retract in mid-cycle for manual adjustment of terminals
• Snap in crimp die provides quick change of Panduit interchangeable crimp dies without the use of tools
• Slim 360 deg rotations crimp head design allows use in limited space areas
• High-performance 18 V 2 Ah lithium-ion battery with high capacity and extremely short charging time 15 min
• Electronic controlled and monitoring of operation
• Integrated pressure measurement with visual and audible signals
• Functional evaluation using optical interface and USB adapter
• LED for workplace illumination
• Multi-function LED for maintenance display and data transfer via USB adapter

Panduit CT-2600/TO Key Specs

---

Panduit CT-2600/TO Data Sheets

Part Drawings | CD, CT-2600/L & CT-2600/LINT Tool Drawing
