Panduit CT-2920/CCP | Pan-Lug CT-2920/CCP Li+ Battery Powered Hydra...
Description
Description

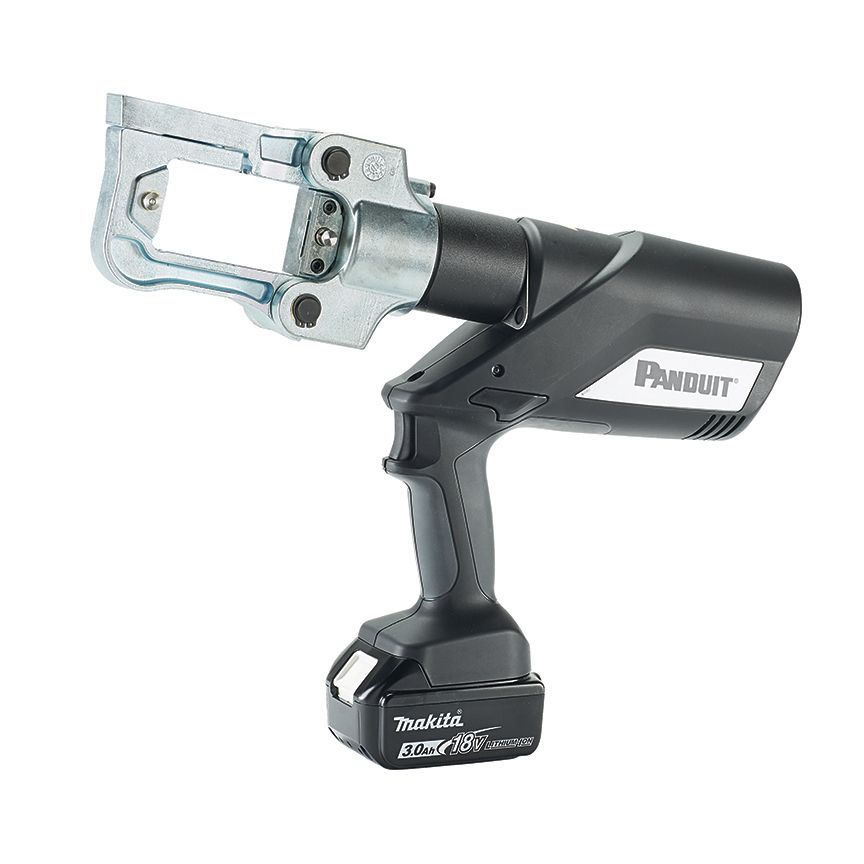

The Panduit BlackFin Crimping Tool crimps, cuts and punches with just the touch of a button. Thanks to a 355-degree rotating, flip-top crimp head, adapters and dies change out quickly and easily. This crimping tool has a force of 12 tons and crimps #8 AWG – 750 kcmil copper code, #8 AWG – 535 kcmil copper flex, #6 AWG - 600 kcmil aluminum, 10mm2 – 400mm2 copper class 2 metric, 10mm2 – 300mm2 copper class 5f and 6f metric, #10 AWG – 500 kcmil ferrules and #6 AWG - 1/0 AWG copper code Direct Burial Grounding connectors. Includes battery powered crimping tool with two 3.0 Ah Li-ion battery cartridges, 120 V charger with USA Type A plug, adapters for CD920/930 dies, carrying case and a shoulder strap. Crimp dies sold separately.
Panduit CT-2920/CCP | CRIMP TOOL | 12 TON MULTI-USE TOOL
Specifications
Specifications
Panduit - CT-2920/CCP - Product Categories
- Wire Termination
- Crimping Tools, Pumps & Accessories
Panduit - CT-2920/CCP - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CT-2920/CCP |
| Item Description | Pan-Lug CT-2920/CCP Li+ Battery Powered Hydraulic, 12-Ton, Crimping Tool, PK1 |
| Compatible Connector | Panduit Lugs and Splices |
| Tool Type | Die Type |
| Universal Tool Capabilities | Wire Cutting |
| Minimum Aluminum Conductor Size (AWG) | 6 |
| Minimum Copper Conductor Size (AWG STR) | 8 |
| Minimum Flex conductor size (AWG) | 8 |
| Minimum Metric Class 2r Wire Size (mm²) | 10 |
| Minimum Metric Class 5f Wire Size (mm²) | 10 |
| Minimum Metric Class 6f Wire Size (mm²) | 10 |
| Maximum Aluminum Conductor Size (kcmil) | 600 |
| Maximum Copper Conductor Size (kcmil) | 750 |
| Maximum Flex conductor size (kcmil) | 535 |
| Maximum Metric Class 2r Wire Size (mm²) | 400 |
| Maximum Metric Class 5f Wire Size (mm²) | 300 |
| Maximum Metric Class 6f Wire Size (mm²) | 300 |
| Sub Brand | Pan-Lug |
| Crimps Per Charge | 110 |
| For Use With | Panduit Crimp Dies |
| Includes | UA12TKL die adapter, Two Makita 3.0 Ah,Li-Ion 18V rechargable batteries, One Makita 120V battery charger, storage case |
| Crimp Force (ton) | 12 |
| Crimp Head Rotation (°) | 350 |
| Crimp Cycle Time (s) | 9 |
| Battery Charge Time (min) | 22 |
| Battery Chemistry | Lithium-Ion |
| Insulated Tool Head | No |
| Jaw Opening Width (In.) | 1.8 |
| Jaw Opening Width (mm) | 45.7 |
| Overall Height (In.) | 13.1 |
| Overall Height (mm) | 333 |
| Standards Met | Certified to IEC/EN 62841-1 |
| Product Type | Battery Hand Crimping Tool |
| Tool Configuration | Pistol Grip Design |
| Weight (Kg) | 6.5 |
| Weight (lb) | 14.33 |
| Crimp Profile | Circumferential |
| Base Material | Steel |
| Battery Voltage (V) | 18 |
| Part Features | • Meets OSHA mandated electrical and mechanical product safety requirements• Meets requirements of safety for handheld, motor operated electric tools (UL 60745-1 and CSA No. 60745-1)• Meets requirements of EU machinery directive and EMC directive - Certified by SiQ to IEC/EN 62841-1 and tested to EN 61000 series• Meets ISO 12100, Machinery Safety Risk Assessment, including ergonomics• Electronic control and monitoring of crimping operation• Evaluation function via optical interface and optional CT-USB adapter accessory and FINS software downloadable from Panduit website• Uses Panduit CD-920 and CD-930 crimp dies or Panduit UA12ID nest/indenter adapter for dieless crimping• Universal tool design operates using crimp dies, wire and threaded-rod cutting blades and hole punch adapter, sold separately• Ergonomic handle positioned at center of gravity for easy handling• Ergonomic 2-component plastic housing with soft inlays for comfortable and safe one-hand operation• One-button operating concept for controlling all tool functions• LED worklight for workplace illumination• 2-stage hydraulic system with fast feed and power stroke, 3-5 second crimp cycle• Energy saving function with motor cut-out (autostop)• Rotating universal flip-top head, rotates 350 degrees• Quick motor stop for high user safety• Automatic retraction when crimping is complete• Manual retract manually sets piston stop• Manual retract stop with "teach in" sets piston stop for multiple crimping operations (MRS+)• Multi-function LED for maintenance display, battery charge status indicator and for data transmission via CT-USB adapter and FINS software• Includes two Makita 18 vdc Li-ion, 3 Amp-hr batteries with fast, 22 minute charge time and battery charger• 110 crimps on a 300 kcmil (150mm²) copper code lug per battery charge• Can be operated as a corded tool using Panduit A/C adapters, sold separately |
Panduit - CT-2920/CCP - Package Information
| UPC | 61305617233 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 4.8889 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
