Brand: Panduit
|
SKU:
1026571

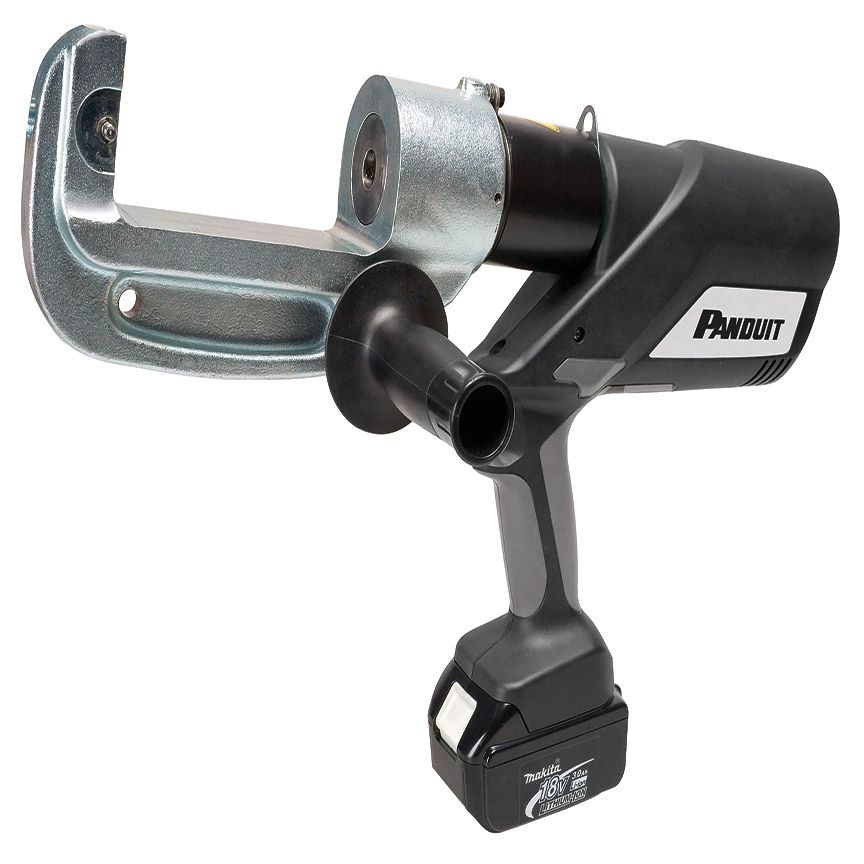

Panduit CT-2940/STINT | Die-type, Litium-Ion Battery Powered Hydraulic, 15-Ton, Pistol grip Crimping Tool | UPC - 61305617185
Regular price
$9,006.27
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit CT-2940/STINT | Die-type, Litium-Ion Battery Powered Hydrau...
Regular price
$9,006.27
Unit price
Description
Description
The Panduit BlackFin crimping tool crimps with just the touch of a button. Dies even change out quickly and easily thanks to a 355 deg rotating open C-crimp head
Panduit BlackFin Crimping Tool Kit, Battery Powered Hydraulic Die Type, Kit, Series: CT-2940, Crimping Capacity: 8 AWG to 1000 kcmil Al/Cu, 135 kN Crimping Force, 230 VAC, Lithium-Ion Battery, 3 Ah Battery, Plastic Housing, Pistol Grip/Soft Rubber Inlay Comfort Grip, Electronic ARS Control, 16.2 in Overall Length, 12.56 in H x 2.9 in W
Features + Benefits
- Electronic control and monitoring of crimping operation
- Integrated pressure measurement with visual and audible signals in case of error
- Evaluation function via optical interface and optional CT-USB adapter accessory and FINS software downloadable from Panduit website
- Open C head design with 1.65 in opening, rotates 350 deg
- Ergonomic handle positioned at center of gravity for easy handling
- Ergonomic 2-component plastic housing with soft inlays for comfortable and safe one-hand operation
- Assist handle provided for attachment to crimp head for right or left handed use
- One-button operating concept for controlling all tool functions
- LED worklight for workplace illumination
- 2-stage hydraulic system with rapid advance and power stroke, 10 to 12 sec crimp cycle
- Energy saving function with motor cut-out (auto-stop
- Quick motor stop for high user safety
- Automatic retraction when crimping is complete
- Manual retract manually sets piston stop
- Automatic position control (ARS) sets piston stop for multiple crimping operations
- Multi-function LED for maintenance display, battery charge status indicator and for data transmission via CT-USB adapter and FINS software
- Environmentally-friendly hydraulic oil, biodegradable
- 8 AWG to 1000 kcmil aluminum/copper, 8 AWG to 777.7 kcmil Cu flex
Panduit CT-2940/STINT Key Specs
| Tool Type | Electro-hydraulic |
| For Use With | Panduit Crimp Dies |
| Includes | 12-Ton battery powered crimping tool, two 3.0 Ah Makita Li-Ion batteries, 230V EU charger, CD-940-920DA adapter and Carrying case |
| Crimp Cycle Time (s) | 12 |
| Battery Charge Time (min) | 22 |
| Overall Height (In.) | 12.6 |
| Overall Height (mm) | 319 |
| Overall Length (In.) | 16.22 |
| Overall Length (mm) | 412 |
| Overall Width (In.) | 2.9 |
| Overall Width (mm) | 74 |
| Standards Met | IEC/EN 62841-1 |
| Product Type | Die-type, Litium-Ion Battery Powered Hydraulic, 15-Ton, Pistol grip Crimping Tool |
| Part Features | • Meets OSHA mandated electrical and mechanical product safety requirements• Meets requirements of safety for handheld, motor operated electric tools (UL 60745-1 and CSA No. 60745-1)• Meets requirements of EU machinery directive and EMC directive - Certified by SiQ to IEC/EN 62841-1 and tested to EN 61000 series• Meets ISO 12100, Machinery Safety Risk Assessment, including ergonomics• Electronic control and monitoring of crimping operation• Integrated pressure measurement with visual and audible signals in case of error• Evaluation function via optical interface and optional CT-USB adapter accessory and FINS software downloadable from Panduit website• Open "C" head design with 1.65" opening, rotates 350 degrees• Ergonomic handle positioned at center of gravity for easy handling• Ergonomic 2-component plastic housing with soft inlays for comfortable and safe one-hand operation• Assist handle provided for attachment to crimp head for right or left handed use• One-button operating concept for controlling all tool functions• LED worklight for workplace illumination• 2-stage hydraulic system with rapid advance and power stroke, 10-12 second crimp cycle• Energy saving function with motor cut-out (autostop)• Quick motor stop for high user safety• Automatic retraction when crimping is complete• Manual retract manually sets piston stop• Automatic position control (ARS) sets piston stop for multiple crimping operations• Environmentally-friendly hydraulic oil, biodegradable• Multi-function LED for maintenance display, battery charge status indicator and for data transmission via CT-USB adapter and FINS software• Includes two Makita 18 vdc Li-ion, 3 Amp-hr batteries with fast, 22 minute charge time and battery charger• 50 crimps on a 300 kcmil (150mm²) copper code lug per battery charge• Can be operated as a corded tool using Panduit A/C adapters, sold separately |
Panduit CT-2940/STINT Data Sheets
| Part Drawings | Crimp Tool | Download and View |
| Manuals | Instruction Manual CT-2940 Series | Download and View |
| Product Bulletins | BlackFin Installation Tools: ELCB20 | Download and View |
| Articles | BlackFin PR | Download and View |
| Articles | Safety-Certified Battery-Powered Hydraulic Tools: BlackFin Article | Download and View |
