Brand: Panduit
|
SKU:
1026576

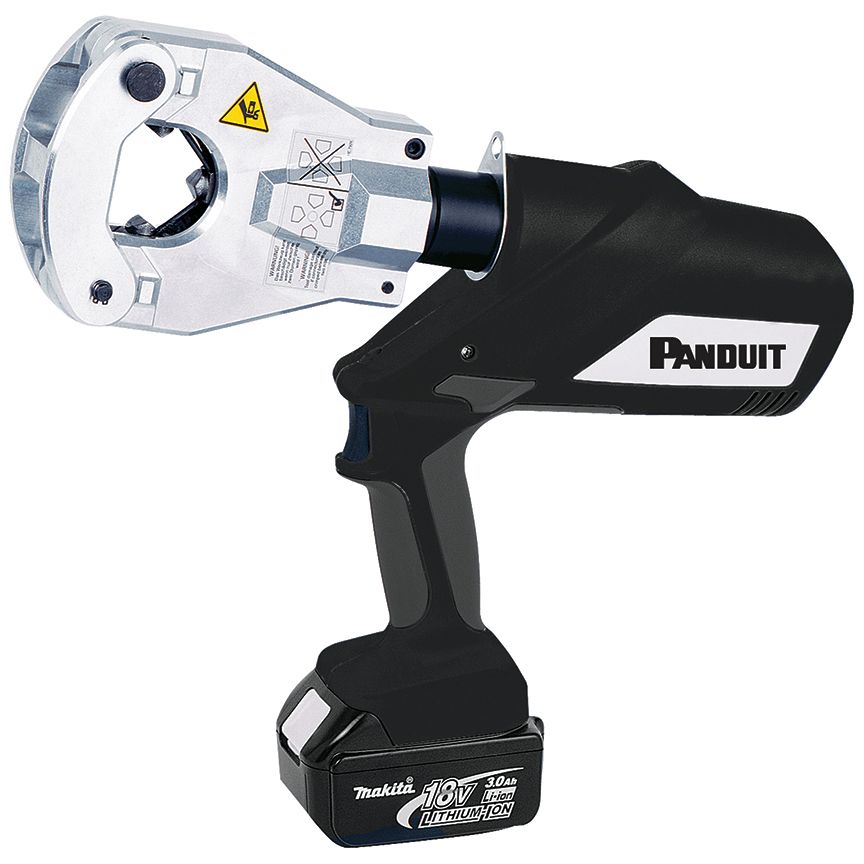

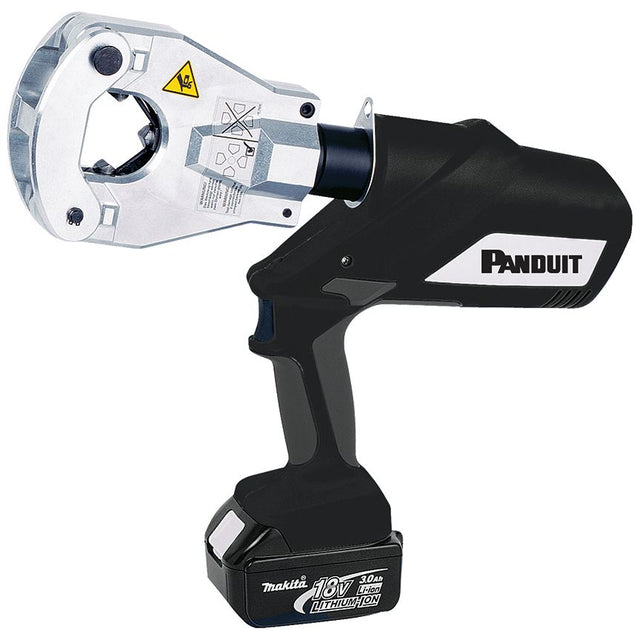

Panduit CT-2980/STINT | Uni-Die Dieless, Lithium-Ion Battery Powered Hydraulic, 6.2-Ton, Pistol Grip Crimping Tool | UPC - 61305617183
Regular price
$8,121.10
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit CT-2980/STINT | Uni-Die Dieless, Lithium-Ion Battery Powere...
Regular price
$8,121.10
Unit price
Description
Description
Panduit BlackFin Uni-Die Crimping Tool Kit, Battery Powered Hydraulic Dieless, Kit, Crimping Capacity: 4 AWG to 750 kcmil Cu, 4 AWG to 500 kcmil Al, 55 kN Crimping Force, 230 VAC, Lithium-Ion Battery, 3 Ah Battery, Plastic Housing, Pistol Grip/Soft Rubber Inlay Comfort Grip, Electronic ARS Control, 15.7 in Overall Length, 13-1/2 in H x 3 in W
Features + Benefits
- The Panduit BlackFin 4-point indenter dieless crimping tool crimps with just the touch of a button
- Quad-point indent crimping feature with patented centering system, no dies required
- Electronic control and monitoring of crimping operation
- Integrated pressure measurement with visual and audible signals in case of error
- Evaluation function via optical interface and optional CT-USB adapter accessory and FINS software downloadable from Panduit website
- Provides UL listed and CSA certified wire range taking capability on Panduit Pan-Lug copper lugs and splices, minimizes connector inventory and saves cost
- Ergonomic handle positioned at center of gravity for easy handling
- Ergonomic 2-component plastic housing with soft inlays for comfortable and safe one-hand operation
- One-button operating concept for controlling all tool functions
- LED worklight for workplace illumination
- 2-stage hydraulic system with rapid advance and power stroke, 3 to 6 sec crimp cycle
- Energy saving function with motor cut-out (auto-stop
- Rotating, flip-top crimp head rotates 350 deg
- Quick motor stop for high user safety
- Automatic retraction when crimping is complete
- Manual retract sets piston stop
- Automatic position control (ARS) sets piston stop for multiple crimping operations
- Multi-function LED for maintenance display, battery charge status indicator and for data transmission via CT-USB adapter and FINS software
- Environmentally-friendly hydraulic oil, biodegradable
- Can be operated as a corded tool using Panduit A/C adapters
Panduit CT-2980/STINT Key Specs
| Tool Type | Electro-hydraulic |
| Includes | 6.2-Ton battery powered crimping tool, two 3.0 Ah Makita Li-Ion batteries, 230V EU charger, and Carrying case |
| Crimp Cycle Time (s) | 6 |
| Battery Charge Time (min) | 22 |
| Overall Height (In.) | 13.5 |
| Overall Height (mm) | 344 |
| Overall Length (In.) | 15.7 |
| Overall Length (mm) | 400 |
| Overall Width (In.) | 3 |
| Overall Width (mm) | 75 |
| Standards Met | IEC/EN 62841-1 |
| Product Type | Uni-Die Dieless, Lithium-Ion Battery Powered Hydraulic, 6.2-Ton, Pistol Grip Crimping Tool |
| Part Features | • Meets OSHA mandated electrical and mechanical product safety requirements• Meets requirements of safety for handheld, motor operated electric tools (UL 60745-1 and CSA No. 60745-1)• Meets requirements of EU machinery directive and EMC directive - Certified by SiQ to IEC/EN 62841-1 and tested to EN 61000 series• Meets ISO 12100, Machinery Safety Risk Assessment, including ergonomics• Quad-point indent crimping feature with patented centering system, no dies required• Electronic control and monitoring of crimping operation• Integrated pressure measurement with visual and audible signals in case of error• Evaluation function via optical interface and optional CT-USB adapter accessory and FINS software downloadable from Panduit website• Provides UL Listed and CSA Certified wire range-taking capability on Panduit Pan-Lug Copper Lugs and Splices, minimizes connector inventory and saves cost• Ergonomic handle positioned at center of gravity for easy handling• Ergonomic 2-component plastic housing with soft inlays for comfortable and safe one-hand operation• One-button operating concept for controlling all tool functions• LED worklight for workplace illumination• 2-stage hydraulic system with rapid advance and power stroke, 3-6 second crimp cycle• Energy saving function with motor cut-out (autostop)• Rotating, flip-top crimp head, rotates 350 degrees• Quick motor stop for high user safety• Automatic retraction when crimping is complete• Manual retract sets piston stop• Automatic position control (ARS) sets piston stop for multiple crimping operations• Multi-function LED for maintenance display, battery charge status indicator and for data transmission via CT-USB adapter and FINS software• Environmentally-friendly hydraulic oil, biodegradable• Includes two Makita 18 vdc Li-ion, 3 Amp-hr batteries with fast, 22 minute charge time and battery charger• 300 crimps on a 300 kcmil (150mm²) copper code lug per battery charge• Can be operated as a corded tool |
Panduit CT-2980/STINT Data Sheets
| Part Drawings | Die-Less Crimp Tool | Download and View |
| Manuals | Instruction Manual CT-2980 Series | Download and View |
| Product Bulletins | BlackFin Installation Tools: ELCB20 | Download and View |
| Articles | BlackFin PR | Download and View |
| Articles | Safety-Certified Battery-Powered Hydraulic Tools: BlackFin Article | Download and View |
