Brand: Panduit
|
SKU:
895073

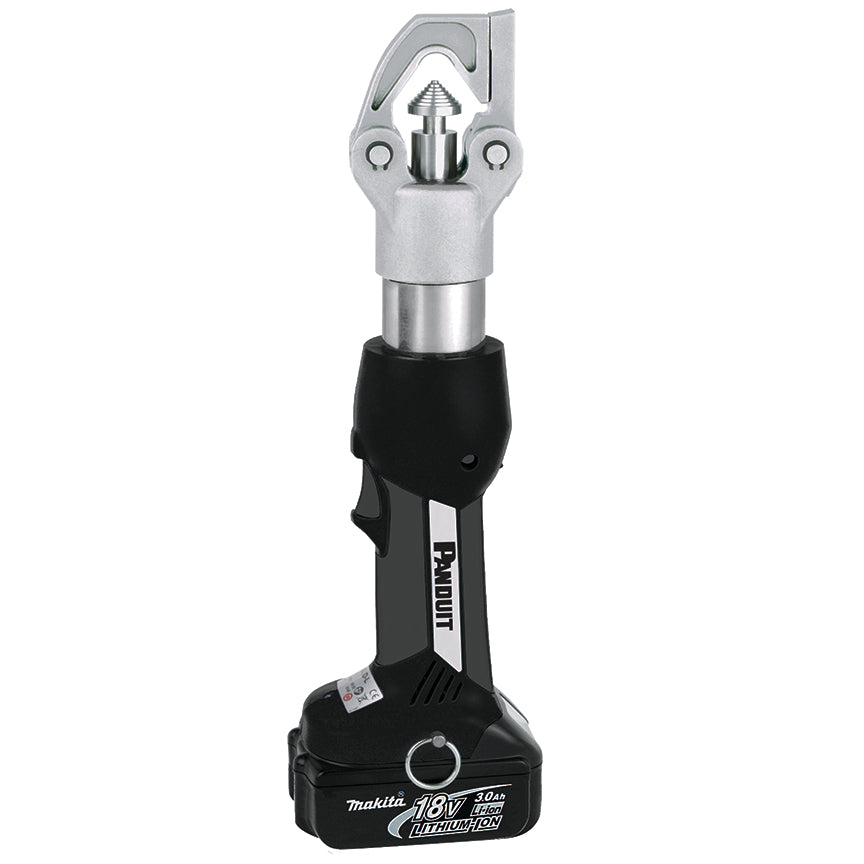

Panduit CT-3980 | Uni-Die Dieless, Lithium-Ion Battery Powered Hydraulic, 6.7-Ton, In-line Crimping Tool | UPC - 61305617230
Regular price
$5,069.21
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit CT-3980 | Uni-Die Dieless, Lithium-Ion Battery Powered Hydr...
Regular price
$5,069.21
Unit price
Description
Description
Panduit BlackFin Uni-Die Crimping Tool Kit, In-Line, Kit, Series: CT-3980, Crimping Capacity: 8 AWG to 600 kcmil Cu, 6 AWG to 350 kcmil Al, 30 to 60 kN Crimping Force, 120 VAC, Lithium-Ion Battery, 3 Ah Battery, Plastic Housing, Soft Rubber Inlay Comfort Grip, Electronic Control, 15.7 in Overall Length, 4.6 in H x 3 in W
Features + Benefits
- Terminations are quick and easy thanks to a 355 deg rotating flip-top crimp head
- 2-stage telescoping indenter identifies crimp force required for size of connector to be terminated
- Electronic control and monitoring of crimping operation
- Integrated pressure measurement with visual and audible signals in case of error
- Evaluation function via optical interface and optional CT-USB adapter accessory and FINS software downloadable from Panduit website
- In-line, balanced ergonomic tool design mitigates repetitive stress injuries to operators
- Ergonomic handle positioned at center of gravity for easy handling
- Ergonomic 2-component plastic housing with soft inlays for comfortable and safe one-hand operation
- One-button operating concept for controlling all tool functions
- LED worklight for workplace illumination
- 2-stage hydraulic system with rapid advance and power stroke, 2-7 sec crimp cycle
- Energy saving function with motor cut-out (auto-stop
- Rotating, flip-top crimp head rotates 350 deg
- Quick motor stop for high user safety
- Automatic retraction when crimping is complete
- Manual retract sets piston stop
- Manual retract stop with "teach in" sets position of piston stop for multiple crimping operations (MRS+)
- Multi-function LED for maintenance display, battery charge status indicator and for data transmission via CT-USB adapter and FINS software
- 8 AWG to 600 kcmil cupper, 350 kcmil aluminum, 8 AWG to 373 kcmil flex
Panduit CT-3980 Key Specs
| Tool Type | Dieless |
| Crimps Per Charge | 300 |
| Includes | Two Makita Batteries, Charger and Storage Case |
| Crimp Force (ton) | 6.7 |
| Crimp Head Rotation (°) | 350 |
| Crimp Cycle Time (s) | 7 |
| Battery Charge Time (min) | 22 |
| Battery Chemistry | Lithium-Ion |
| Insulated Tool Head | No |
| Jaw Opening Width (In.) | 1.8 |
| Jaw Opening Width (mm) | 45.7 |
| Overall Height (In.) | 4.6 |
| Overall Height (mm) | 116 |
| Overall Length (In.) | 15.7 |
| Overall Length (mm) | 398 |
| Overall Width (In.) | 3 |
| Overall Width (mm) | 75 |
| Standards Met | Certified to IEC/EN 62841-1 |
| Product Type | Uni-Die Dieless, Lithium-Ion Battery Powered Hydraulic, 6.7-Ton, In-line Crimping Tool |
| Tool Configuration | In-Line Design |
