Brand: Panduit
|
SKU:
1026605

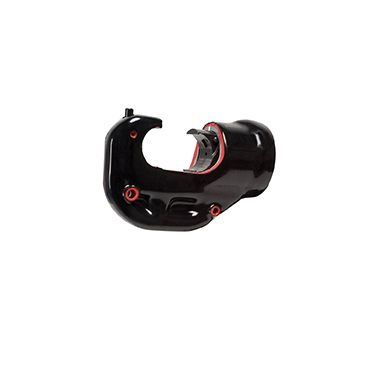

Panduit CT-920CH/CV | Die Type, Remote Hydraulic, 12-Ton, Crimp Head | UPC - 61305617220
Regular price
$3,059.57
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit CT-920CH/CV | Die Type, Remote Hydraulic, 12-Ton, Crimp Hea...
Regular price
$3,059.57
Unit price
Description
Description
Panduit BlackFin Crimp Head Tool, Die-Type Electro-Hydraulic, For Use With: Panduit CT-902HP Hydraulic Pump and 10 ft CT-900HPH Hydraulic Hose, 12 Ton(108 kN) Crimp Force, Open "C" Rotating Crimp Head, 12.6 in L x 2.9 in W x 5.1 in H
Features + Benefits
- Incorporates parker type quick-connect fittings to ease installation and save time
- Requires 10000 psi hydraulic pump system(recommended Panduit CT-902HP pump and accessories)
- Durable crimp head design for long life
- Open "C" head design allows for easy loading of crimping dies and connectors, saves time
- Uses Panduit CD-920 and CD-930 crimp dies to provide easy matching of crimping die to connector
- Dies installed using spring loaded die retention pins, no need for tools
- Cast-in handle allows crimp head to be mounted in a bench vice
- Provided with 2-layer PVC covered crimp head
- Crimps Panduit copper compression lugs and splices from 8 AWG - 750 kcmil copper code, 8 AWG - 535 kcmil copper flex, metric 10 - 400 sq mm class 2r and 10 - 300 sq mm class 5f and 6f , 6 AWG - 600 kcmil aluminum wire
- Crimps full range of Panduit copper CTAPF, CTAP, HTCT taps and direct burial GCE grounding connectors up to 250 kcmil
- Crimps large wire ferrules up to 500 kcmil
Panduit CT-920CH/CV Key Specs
| For Use With | Panduit Crimp Dies |
| Tool Type | Electro-hydraulic |
| Includes | • Heavy duty carrying bag |
| Application | Panduit Copper and Aluminum compression connectors using Panduit Crimping Dies. |
| Overall Height (In.) | 5.1 |
| Overall Height (mm) | 129 |
| Overall Length (In.) | 12.6 |
| Overall Length (mm) | 320 |
| Overall Width (In.) | 2.9 |
| Overall Width (mm) | 74 |
| Product Type | Die Type, Remote Hydraulic, 12-Ton, Crimp Head |
| Part Features | • Incorporates Parker type quick-connect fittings to ease installation and save time• Requires 10,000 psi hydraulic pump system (recommended Panduit CT-902HP pump and accessories)• Durable crimp head design for long life• Open "C" head design allows for easy loading of crimping dies and connectors, saves time• Uses Panduit CD-920 and CD-930 crimp dies to provide easy matching of crimping die to connector• Dies installed using spring loaded die retention pins, no need for tools• Cast-in handle allows crimp head to be mounted in a bench vice• CT-920CH/CV available with 2-layer PVC covered crimp head |
Panduit CT-920CH/CV Data Sheets
| Part Drawings | Crimp Head Tools CT-920CH and CT-920CH/CV | Download and View |
| Manuals | CT-920CH | Download and View |
