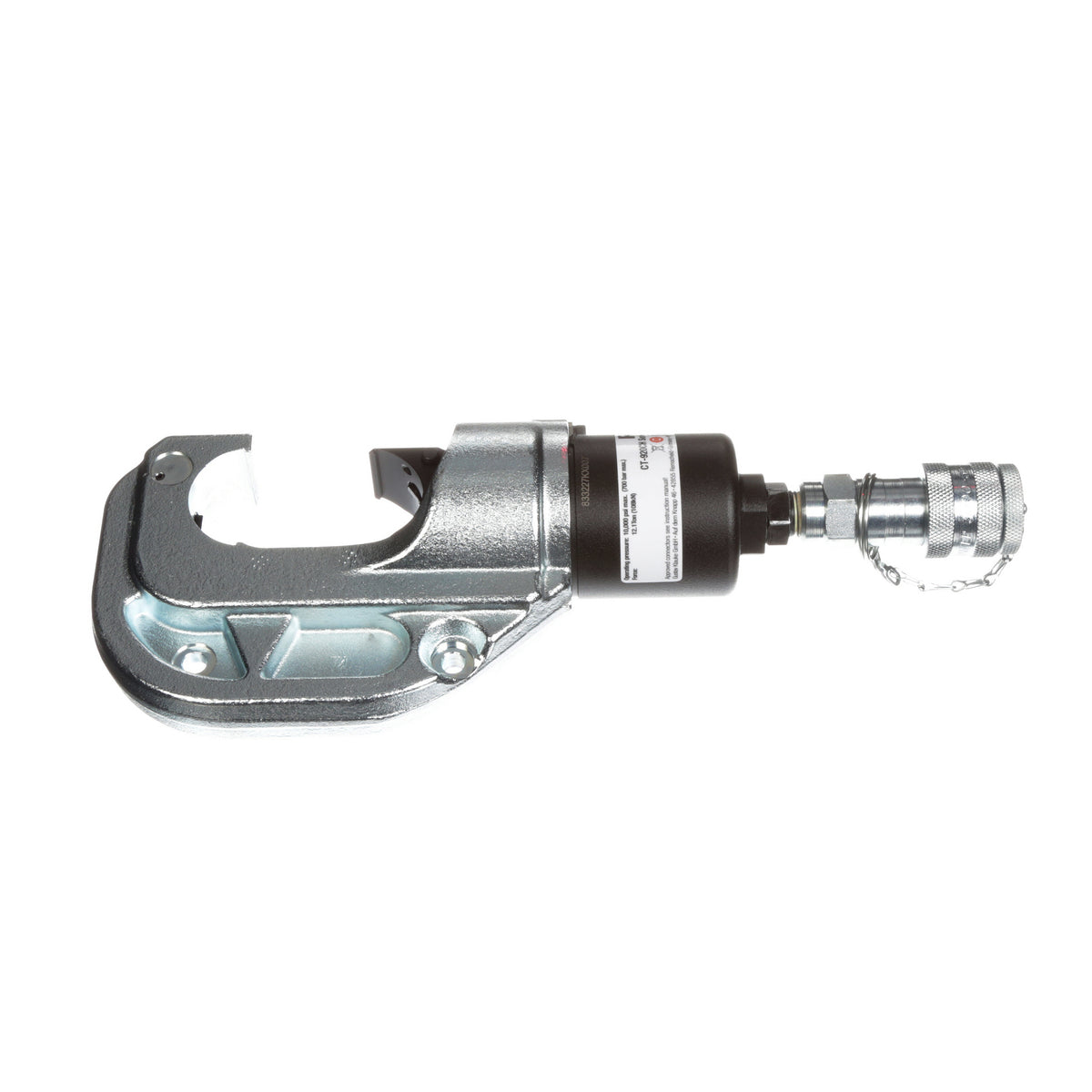

Panduit CT-920CH | NA | UPC - 61305623445
Description
Description
When partnered as a complete Panduit set, the Panduit BlackFin Crimping Tool provides continuous crimping operation. Plus, the open C-crimp head design allows easy loading of crimping dies and connectors, saving time. The crimp tool has a force of 12 ton and crimps #8 AWG to 750 kcmil copper code, #8 AWG to 535 kcmil copper flex, #6 AWG to 600 kcmil aluminum, 10 to 400 sq-mm copper class 2 metric, 10 to 300 sq-mm copper class 5f and 6f metric, #10 AWG to 500 kcmil ferrules and #6 AWG to 250 kcmil copper code Direct Burial Grounding connectors. Includes Parker type quick connect fitting and heavy duty carrying bag. Recommended for use with PanduitCT-902HP hydraulic pump with CT-900HPH hydraulic hose and CD-920 or CD-930 crimp dies, sold separately.
Panduit Crimp Head Tool, Remote/Electro-Hydraulic Rotating, For Use With: Crimp Die, 600 kcmil Aluminum, 8 AWG to 750 kcmil Copper Wire Size, 14 ton Crimp Force, 12.6 in L x 2.9 in W x 5.1 in H
Features + Benefits
- Incorporates Parker type quick connect fittings to ease installation and save time
- Requires 10000 psi hydraulic pump system
- Durable crimp head design for long life
- Open C head design allows for easy loading of crimping dies and connectors, saves time
- Dies installed using spring loaded die retention pins, no need for tools
- Cast in handle allows crimp head to be mounted in a bench vice
Panduit CT-920CH Key Specs
| For Use With | Panduit Crimp Dies |
| Tool Type | Electro-hydraulic |
| Application | Panduit Copper and Aluminum compression connectors using Panduit Crimping Dies. |
| Overall Height (In.) | 5.1 |
| Overall Height (mm) | 129 |
| Part Features | • Incorporates Parker type quick-connect fittings to ease installation and save time• Requires 10,000 psi hydraulic pump system (recommended Panduit CT-902HP pump and accessories)• Durable crimp head design for long life• Open "C" head design allows for easy loading of crimping dies and connectors, saves time• Uses Panduit CD-920 and CD-930 crimp dies to provide easy matching of crimping die to connector• Dies installed using spring loaded die retention pins, no need for tools• Cast-in handle allows crimp head to be mounted in a bench vice |
Panduit CT-920CH Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LCC10-14JAWH-L Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - LCC2-38DWH-Q | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
