Brand: Panduit
|
SKU:
CTAP2-4-Q
Panduit CTAP2-4-Q | Compression Connectors - Taps | UPC - 07498391119
Regular price
$8.10
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit CTAP2-4-Q | Compression Connectors - Taps | UPC - 07498391119
Regular price
$8.10
Unit price
Description
Description

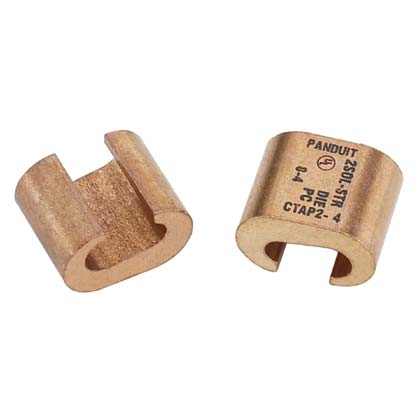

Panduit StructuredGround Compression C-Tap Connector, Type CTAP Heavy Duty Standard, C Shape, 2 AWG Main/Run, 8 to 4 AWG Tap, 35 kV, Solid/Stranded Copper Conductor, Specifications: 7/8 in L Wire Strip, 90 deg C, Copper, 0.6 in L x 0.76 in W x 0.96 in H Dimensions
Features + Benefits
- For tapping into unbroken continuous main, as a wire joint or two way splice
- Wide wire range taking capability minimizes inventory requirements
- Made from heavy wall, extruded, high conductivity copper provides high strength and premium electrical properties
Panduit CTAP2-4-Q | Compression Connectors - Taps | UPC - 07498391119 Key Specs
| Sub Brand | StructuredGround |
| Overall Length (In.) | 0.6 |
| Overall Length (mm) | 15.2 |
| Color | Copper |
| Overall Width (In.) | 0.76 |
| Overall Width (mm) | 19.3 |
| Overall Height (In.) | 0.96 |
| Overall Height (mm) | 24.4 |
| Panduit Die Index Number | PC |
| Burndy Die Index Number | C |
| Wire Strip Length (In.) | 7/8 |
| Wire Strip Length (mm) | 22 |
| For Use With | AWG wire only |
| Product Type | Compression Connectors - Taps |
| Material | High Conductivity Copper |
Panduit CTAP2-4-Q | Compression Connectors - Taps | UPC - 07498391119 Data Sheets
| Part Drawings | Part Drawing - PDF - CTAP Family_10N002BA-NC_06 | Download and View |
| Catalog Cut Sheets | Catalog Cut Sheet - CTAP4-8-L Product Page | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit CTAP2-4-Q | Compression Connectors - Taps | UPC - 07498391119 Environmental Information
| Panduit's RoHS Statement | Download and View |
