Panduit CTAP4/0-4/0-X | Compression Connectors - Taps | UPC - 07498...
Regular price
$21.09
Unit price
Brand: Panduit
|
SKU:
PAN-CTAP4/0-4/0-X
Regular price
$21.09
Unit price
Description
Description

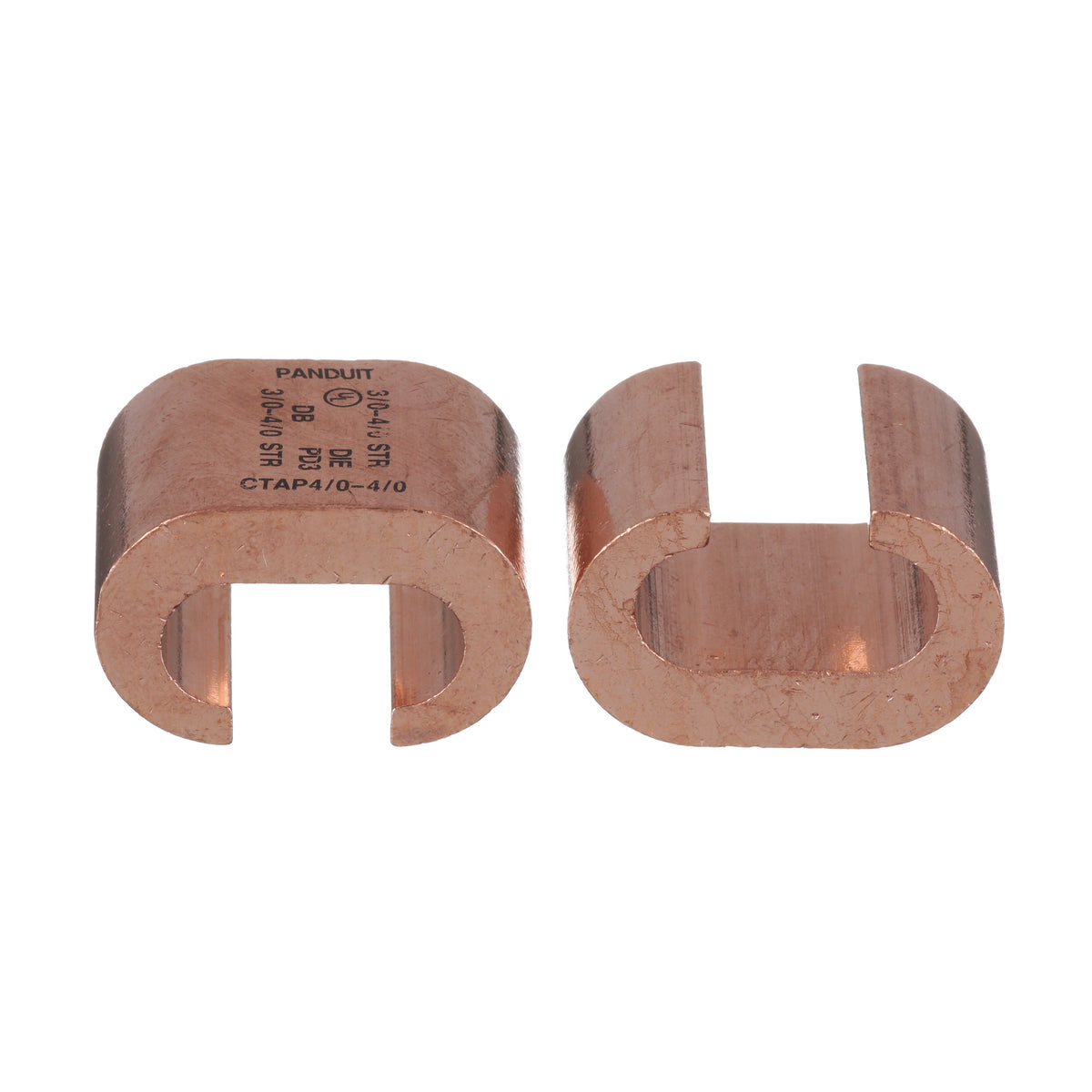

Panduit StructuredGround Compression Connector C-Tap, Type CTAP Heavy Duty Standard, C Shape, 3/0 to 4/0 AWG Main/Run, 3/0 to 4/0 AWG Tap, 35 kV, Stranded Copper Conductor, Specifications: 1-1/4 in Wire Strip, 90 deg C, Copper, 1 in L x 1.08 in W x 1.57 in H Dimensions
Features + Benefits
- For tapping into unbroken continuous main, as a wire joint or two way splice
- Wide wire range taking capability minimizes inventory requirements
- Made from heavy wall, extruded, high conductivity copper provides high strength and premium electrical properties
Panduit CTAP4/0-4/0-X | Compression Connectors - Taps | UPC - 07498391121 Key Specs
| Sub Brand | StructuredGround |
| Maximum Tap Size (AWG STR) | 3/0 |
| Minimum Tap Size (AWG STR) | 4/0 |
| Maximum Run Size (AWG STR) | 3/0 |
| Minimum Run Size (AWG STR) | 4/0 |
| Overall Length (In.) | 1 |
| Overall Length (mm) | 25.4 |
| Overall Thickness (In.) | 1.08 |
| Overall Thickness (mm) | 27.4 |
| Overall Width (In.) | 1.08 |
| Overall Width (mm) | 27.4 |
| Overall Height (In.) | 1.57 |
| Overall Height (mm) | 39.9 |
| Panduit Die Index Number | PD3 |
| Burndy Die Index Number | F |
| Wire Strip Length (In.) | 1 1/4 |
| Wire Strip Length (mm) | 32 |
| For Use With | AWG wire only |
| Standards Met | UL486 and UL467 |
| Application | Utility/Ground Grid |
Panduit CTAP4/0-4/0-X | Compression Connectors - Taps | UPC - 07498391121 Data Sheets
| Part Drawings | Part Drawing - PDF - CTAP Family_10N002BA-NC_06 | Download and View |
| Catalog Cut Sheets | Catalog Cut Sheet - CTAP4-8-L Product Page | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit CTAP4/0-4/0-X | Compression Connectors - Taps | UPC - 07498391121 Environmental Information
| Panduit's RoHS Statement | Download and View |
