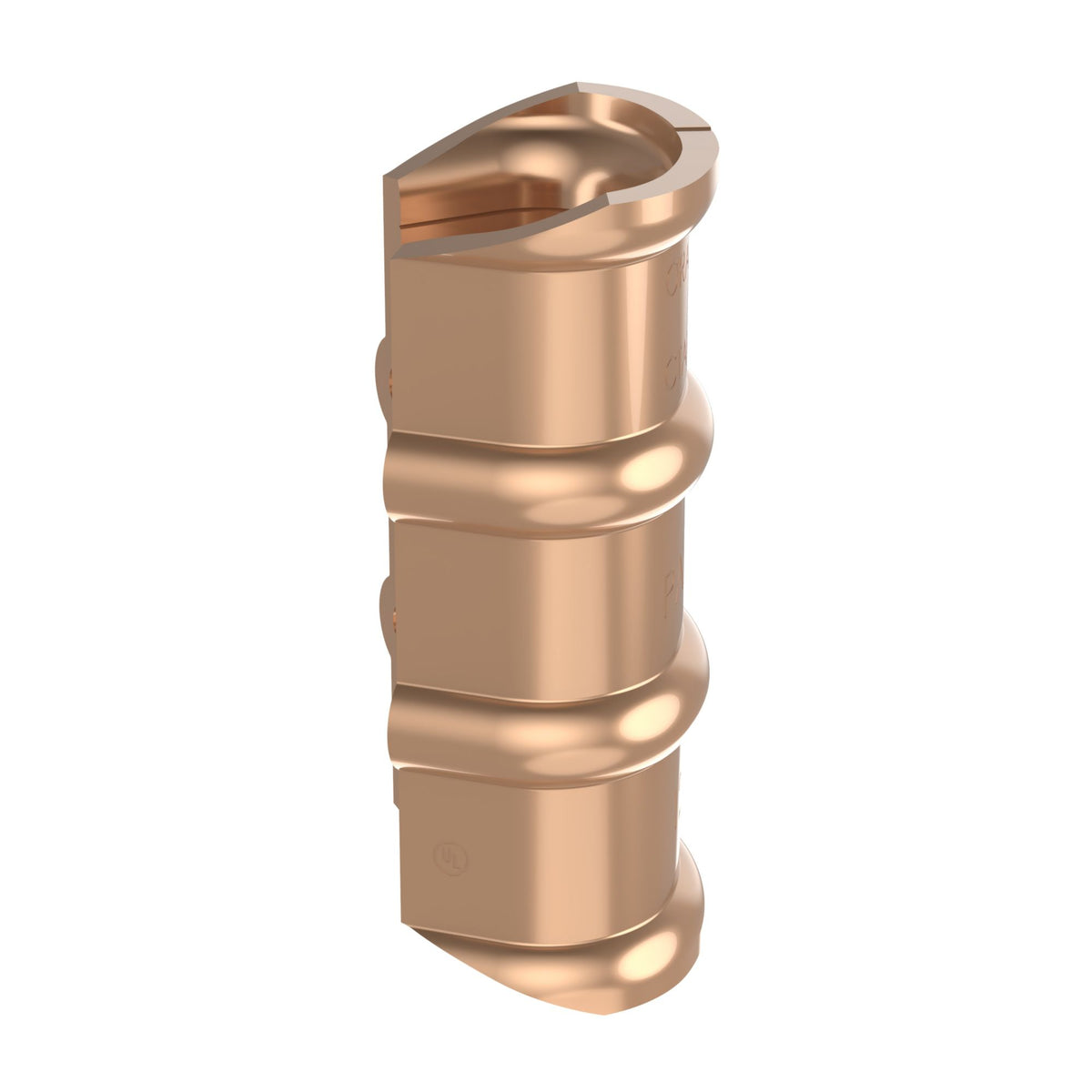

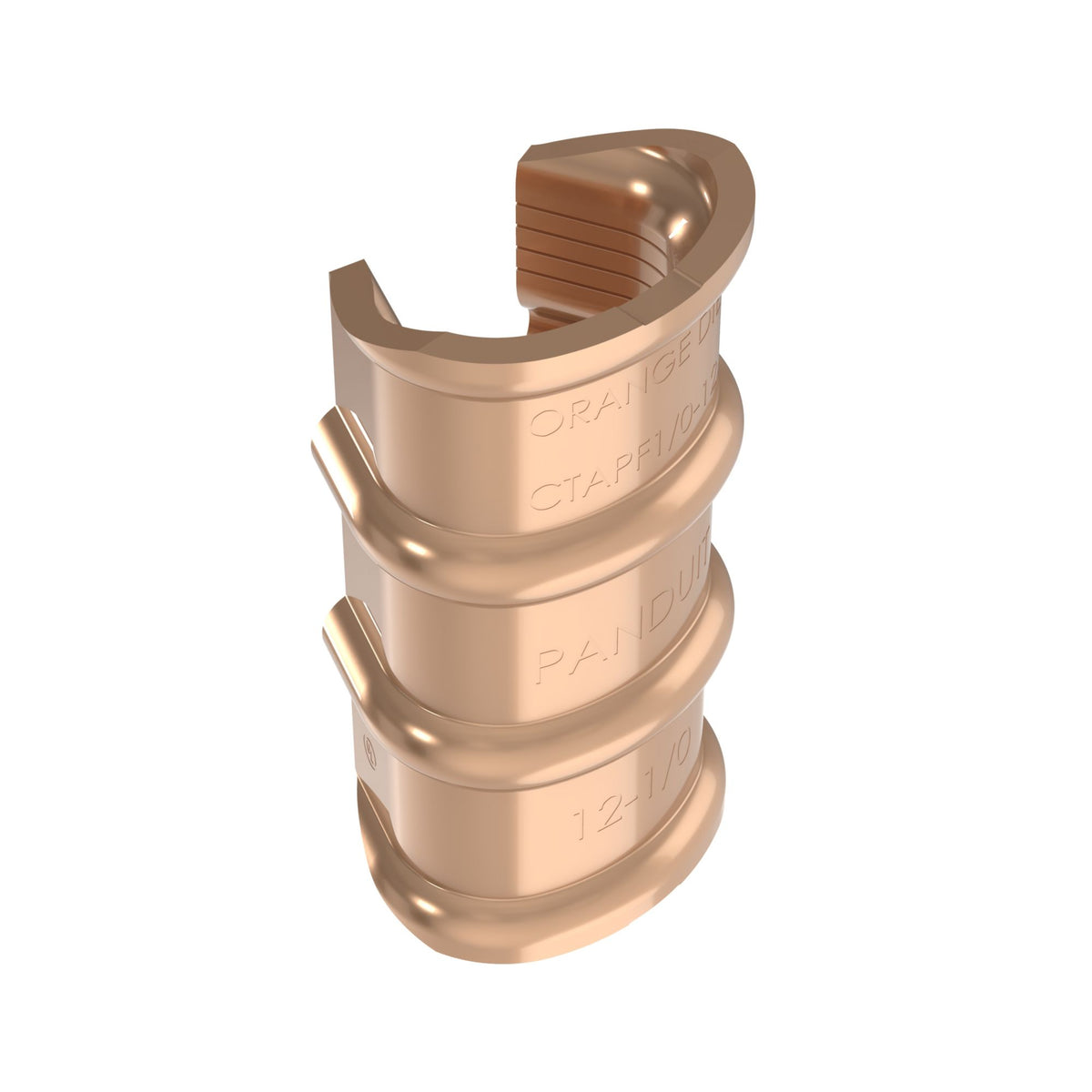

Panduit CTAPF1/0-12-L | | Panduit - Cable compression tap - orange
Description
Description
The CTAPF1/0-12-L Compression Connector Tap provides high-strength and premium electrical properties. It is suitable for use with solid and stranded copper Code conductors for tapping into unbroken continuous main, as a wire joint or two-way splice. The wide wire range-taking capability minimizes inventory requirements. UL listed per UL486 for use up to 35 kv and temperature rated 90°c when crimped with Panduit and specified competitor crimping tools and dies.
Panduit - CTAPF1/0-12-L - Features
- Panduit - Cable compression tap - orange - CTAPF1/0-12-L.
- General Information
- Weight (lb)
- 4.54
Specifications
Specifications
Panduit - CTAPF1/0-12-L - Product Categories
- Grounding & Bonding
- CTAP & GCE Style Connectors
Panduit - CTAPF1/0-12-L - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CTAPF1/0-12-L |
| Item Description | StructuredGround CTAPF1/0-12-L Comp. Tap, 1/0-12, Copper, PK50 |
| Sub Brand | StructuredGround |
| Maximum Tap Size (AWG STR) | 2 |
| Minimum Tap Size (AWG STR) | 12 |
| Maximum Run Size (AWG STR) | 1/0 |
| Minimum Run Size (AWG STR) | 2 |
| Overall Length (In.) | 1.82 |
| Overall Length (mm) | 46.2 |
| Color | Orange |
| Overall Thickness (In.) | 0.09 |
| Overall Thickness (mm) | 2.29 |
| Overall Width (In.) | 0.63 |
| Overall Width (mm) | 16 |
| Panduit Die Index Number | P50 |
| Wire Strip Length (In.) | 1 7/8 |
| Wire Strip Length (mm) | 47.6 |
| Inside Diameter (In.) | 0.42 |
| Inside Diameter (mm) | 10.7 |
| For Use With | AWG wire only |
| Standards Met | UL listed and CSA certified to 600 V |
| Application | Utility/Ground Grid |
| Product Type | Compression Connectors - Taps |
| Material | Copper |
| Surface Treatment | Bare |
Panduit - CTAPF1/0-12-L - Package Information
| UPC | 07498359977 |
|---|---|
| Standard Pkg. Qty. | 50 |
| Standard Package Volume (cf) | 0.0641 |
| Standard Ctn. Qty. | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Panduit - CTAPF1/0-12-L - Videos
| Video 1 | Click to View |
|---|
