Panduit CTAPF1-12-C | Compression Connectors - Taps | UPC - 0749835...
Description
Description
Panduit StructuredGround grounding connectors provide innovative solutions for joining ground conductors to water pipe, ground rods, rebar, conduit, iron pipe and structural steel. Designed with the needs of the end user in mind, StructuredGround grounding connectors feature easy installation, lowest installed cost and long-term reliability.

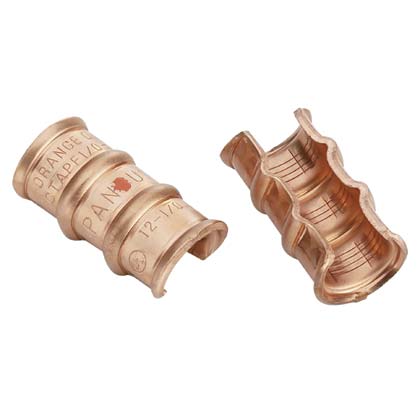

Panduit StructuredGround Compression C-Tap Connector, Type CTAPF Standard Thinwall, C Shape, 3 AWG, 2 AWG, 1 AWG Main/Run, 4 to 3 AWG, 5 to 4 AWG, 12 to 5 AWG Tap, 600 VAC, Stranded Copper Conductor, Specifications: 1-7/8 in L Wire Strip, 0.4 in W Slot, Black Color, 90 deg C, Copper, 0.57 in ID x 1.82 in L x 0.08 in THK Dimensions
Features + Benefits
- Wide wire range taking capability minimizes inventory requirements
- Color coded for proper crimp die selection
- Ribbed design provides high strength
- Made from high conductivity wrought copper
Panduit CTAPF1-12-C | Compression Connectors - Taps | UPC - 07498359976 Key Specs
| Sub Brand | StructuredGround |
| Overall Length (In.) | 1.82 |
| Overall Length (mm) | 46.2 |
| Color | Copper |
| Panduit Die Index Number | P45M**, P45 |
| Burndy Die Index Number | 13M, 13 |
| Wire Strip Length (In.) | 1 7/8 |
| Wire Strip Length (mm) | 47.6 |
| Inside Diameter (In.) | 0.57 |
| Inside Diameter (mm) | 14.5 |
| For Use With | AWG wire only |
| Product Type | Compression Connectors - Taps |
| Material | Copper |
Panduit CTAPF1-12-C | Compression Connectors - Taps | UPC - 07498359976 Data Sheets
| Part Drawings | Part Drawing - PDF - C41172-05ctapf | Download and View |
| Catalog Cut Sheets | Catalog Cut Sheet - CTAPF10-16-C Product Page | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit CTAPF1-12-C | Compression Connectors - Taps | UPC - 07498359976 Environmental Information
| Panduit's RoHS Statement | Download and View |
