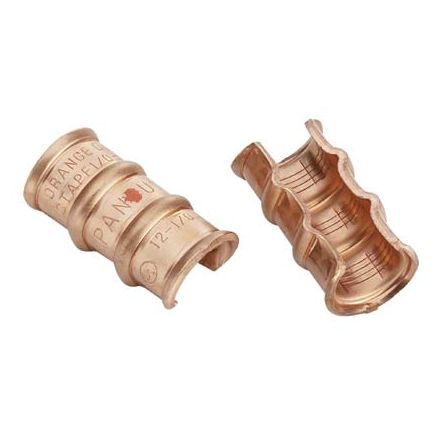

Panduit CTAPF2/0-12-Q C-Type copper thin wall compression tap, type...
Regular price
$8.90
Unit price
Brand: Panduit
|
SKU:
CTAPF2/0-12-Q
Regular price
$8.90
Unit price
Description
Description
Panduit CTAPF2/0-12-Q | StructuredGround CTAPF2/0-12-Q Compression Connectors - Taps
C-Type copper thin wall compression tap, type CTAPF, 2/0 AWG - #12 AWG.
Specifications
Specifications
Panduit - CTAPF2/0-12-Q - Product Categories
- Grounding & Bonding
- CTAP & GCE Style Connectors
Panduit - CTAPF2/0-12-Q - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CTAPF2/0-12-Q |
| Item Description | StructuredGround CTAPF2/0-12-Q Compression Connectors - Taps |
| Sub Brand | StructuredGround |
| Maximum Tap Size (AWG STR) | 1 |
| Minimum Tap Size (AWG STR) | 12 |
| Maximum Run Size (AWG STR) | 2/0 |
| Minimum Run Size (AWG STR) | 1 |
| Overall Length (In.) | 1.82 |
| Overall Length (mm) | 46.2 |
| Color | Purple |
| Overall Thickness (In.) | 0.09 |
| Overall Thickness (mm) | 2.29 |
| Overall Width (In.) | 0.71 |
| Overall Width (mm) | 18.03 |
| Panduit Die Index Number | P54 |
| Wire Strip Length (In.) | 1 7/8 |
| Wire Strip Length (mm) | 47.6 |
| Inside Diameter (In.) | 0.71 |
| Inside Diameter (mm) | 18 |
| For Use With | AWG wire only |
| Standards Met | UL listed and CSA certified to 600 V |
| Application | Utility/Ground Grid |
| Product Type | Compression Connectors - Taps |
| Material | Copper |
| Surface Treatment | Bare |
Panduit - CTAPF2/0-12-Q - Package Information
| UPC | 07498359978 |
|---|---|
| Standard Package Quantity | 25 |
| Standard Package Volume (cf) | 0.0500 |
| Standard. Ctn. Quantity | 0 |
| Standard. Ctn. Volume (cf) | 0.0000 |
