Panduit CTAPF2-12-C | Compression Connectors - Taps | UPC - 0749835...
Description
Description
Panduit StructuredGround grounding connectors provide innovative solutions for joining ground conductors to water pipe, ground rods, rebar, conduit, iron pipe and structural steel. Designed with the needs of the end user in mind, StructuredGround grounding connectors feature easy installation, lowest installed cost and long-term reliability.

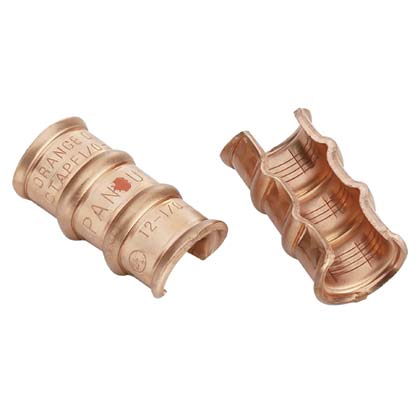

Panduit C-Tap Compression Connector, Standard Thinwall, Series: CTAPF, C Shape, 4 AWG, 3 AWG, 2 AWG Main/Run, 4 AWG, 5 AWG, 12 to 6 AWG Tap, 600 VAC, Stranded Copper Conductor, Specifications: 0.33 in W Slot, 1-5/16 in L Wire Strip, Pink, 90 deg C, Copper, 0.51 in ID x 1.25 in L x 0.08 in THK
Features + Benefits
- Wide wire range taking capability minimizes inventory requirements
- Color coded for proper crimp die selection
- Ribbed design provides high strength
- Made from high conductivity wrought copper
Panduit CTAPF2-12-C | Compression Connectors - Taps | UPC - 07498359975 Key Specs
| Sub Brand | StructuredGround |
| Maximum Tap Size (AWG STR) | 4 |
| Minimum Tap Size (AWG STR) | 12 |
| Maximum Run Size (AWG STR) | 2 |
| Minimum Run Size (AWG STR) | 4 |
| Overall Length (In.) | 1.25 |
| Overall Length (mm) | 31.8 |
| Overall Thickness (In.) | 0.08 |
| Overall Thickness (mm) | 2 |
| Overall Width (In.) | 1.25 |
| Overall Width (mm) | 31.8 |
| Panduit Die Index Number | P42M |
| Wire Strip Length (In.) | 1-5/16 |
| Wire Strip Length (mm) | 33.3 |
| Inside Diameter (In.) | 0.51 |
| Inside Diameter (mm) | 13 |
| For Use With | AWG wire only |
| Standards Met | UL/CSA |
| Application | Utility/Ground Grid |
| Product Type | Compression Connectors - Taps |
Panduit CTAPF2-12-C | Compression Connectors - Taps | UPC - 07498359975 Data Sheets
| Part Drawings | Part Drawing - PDF - C41172-05ctapf | Download and View |
| Catalog Cut Sheets | Catalog Cut Sheet - CTAPF10-16-C Product Page | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit CTAPF2-12-C | Compression Connectors - Taps | UPC - 07498359975 Environmental Information
| Panduit's RoHS Statement | Download and View |
