Brand: Panduit
|
SKU:
CTAPF4-12-C
Panduit CTAPF4-12-C | Compression Connectors - Taps | UPC - 07498359973
Regular price
$4.06
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit CTAPF4-12-C | Compression Connectors - Taps | UPC - 0749835...
Regular price
$4.06
Unit price
Description
Description

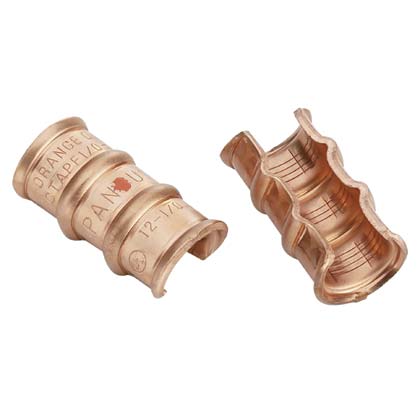

Panduit Compression C-Tap Connector, Type CTAPF Standard Thinwall, C, 6 to 4 AWG Main/Run, 8 to 6 AWG, 12 to 8 AWG Tap, 600 VAC, Stranded Copper Conductor, 40 deg C Temperature, 90 deg C, Copper, Brown, 0.4 in ID x 1.25 in L x 0.07 in THK
Features + Benefits
- Wide wire range taking capability minimizes inventory requirements
- Color coded for proper crimp die selection
- Ribbed design provides high strength
- Made from high conductivity wrought copper
Panduit CTAPF4-12-C | Compression Connectors - Taps | UPC - 07498359973 Key Specs
| Sub Brand | StructuredGround |
| Overall Length (In.) | 1.25 |
| Overall Length (mm) | 31.8 |
| Color | Copper |
| Panduit Die Index Number | P33M**, P33 |
| Burndy Die Index Number | 10M, 10 |
| Wire Strip Length (In.) | 1.3125 |
| Wire Strip Length (mm) | 33.3 |
| Inside Diameter (In.) | 0.4 |
| Inside Diameter (mm) | 10.2 |
| For Use With | AWG wire only |
| Product Type | Compression Connectors - Taps |
| Material | Copper |
Panduit CTAPF4-12-C | Compression Connectors - Taps | UPC - 07498359973 Data Sheets
| Part Drawings | Part Drawing - PDF - C41172-05ctapf | Download and View |
| Catalog Cut Sheets | Catalog Cut Sheet - CTAPF10-16-C Product Page | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit CTAPF4-12-C | Compression Connectors - Taps | UPC - 07498359973 Environmental Information
| Panduit's RoHS Statement | Download and View |
