Brand: Panduit
|
SKU:
PAN-CTAPF6-12-C
Panduit CTAPF6-12-C | StructuredGround CTAPF6-12-C Compression Connectors - Taps
Regular price
$250.48
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit CTAPF6-12-C | StructuredGround CTAPF6-12-C Compression Conn...
Regular price
$250.48
Unit price
Brand: Panduit
|
SKU:
PAN-CTAPF6-12-C
Regular price
$250.48
Unit price
Description
Description
Panduit CTAPF6-12-C | StructuredGround CTAPF6-12-C Compression Connectors - Taps

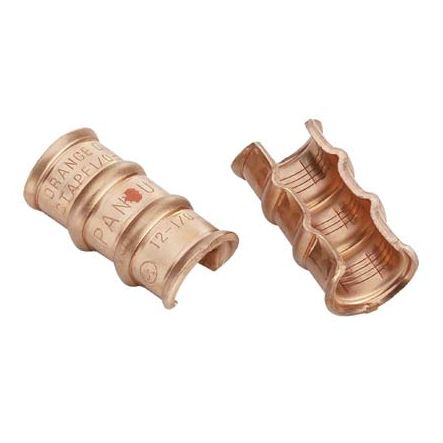

C-Type copper thin wall compression tap, type CTAPF, #6 AWG - #12 AWG.
Panduit CTAPF6-12-C - GROUNDING - C COMPRESS TAP
Specifications
Specifications
Panduit - CTAPF6-12-C - Product Categories
- Grounding & Bonding
- CTAP & GCE Style Connectors
Panduit - CTAPF6-12-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CTAPF6-12-C |
| Item Description | StructuredGround CTAPF6-12-C Compression Connectors - Taps |
| Sub Brand | StructuredGround |
| Maximum Tap Size (AWG STR) | 8 |
| Minimum Tap Size (AWG STR) | 12 |
| Maximum Run Size (AWG STR) | 6 |
| Minimum Run Size (AWG STR) | 8 |
| Overall Length (In.) | 0.67 |
| Overall Length (mm) | 17 |
| Color | International Gray |
| Overall Thickness (In.) | 0.07 |
| Overall Thickness (mm) | 1.78 |
| Overall Width (In.) | 0.32 |
| Overall Width (mm) | 8.13 |
| Panduit Die Index Number | P29 |
| Wire Strip Length (In.) | 11/16 |
| Wire Strip Length (mm) | 17.5 |
| Inside Diameter (In.) | 0.32 |
| Inside Diameter (mm) | 8.1 |
| For Use With | AWG wire only |
| Standards Met | UL listed and CSA certified to 600 V |
| Application | Utility/Ground Grid |
| Product Type | Compression Connectors - Taps |
| Material | Copper |
| Surface Treatment | Bare |
Panduit - CTAPF6-12-C - Package Information
| UPC | 07498359972 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.0312 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
