Brand: Panduit
|
SKU:
10083393
Panduit CTAPR250-2/0-6 | Compression Connectors - Taps | UPC - 61305614292
Regular price
$26.36
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit CTAPR250-2/0-6 | Compression Connectors - Taps | UPC - 6130...
Regular price
$26.36
Unit price
Description
Description

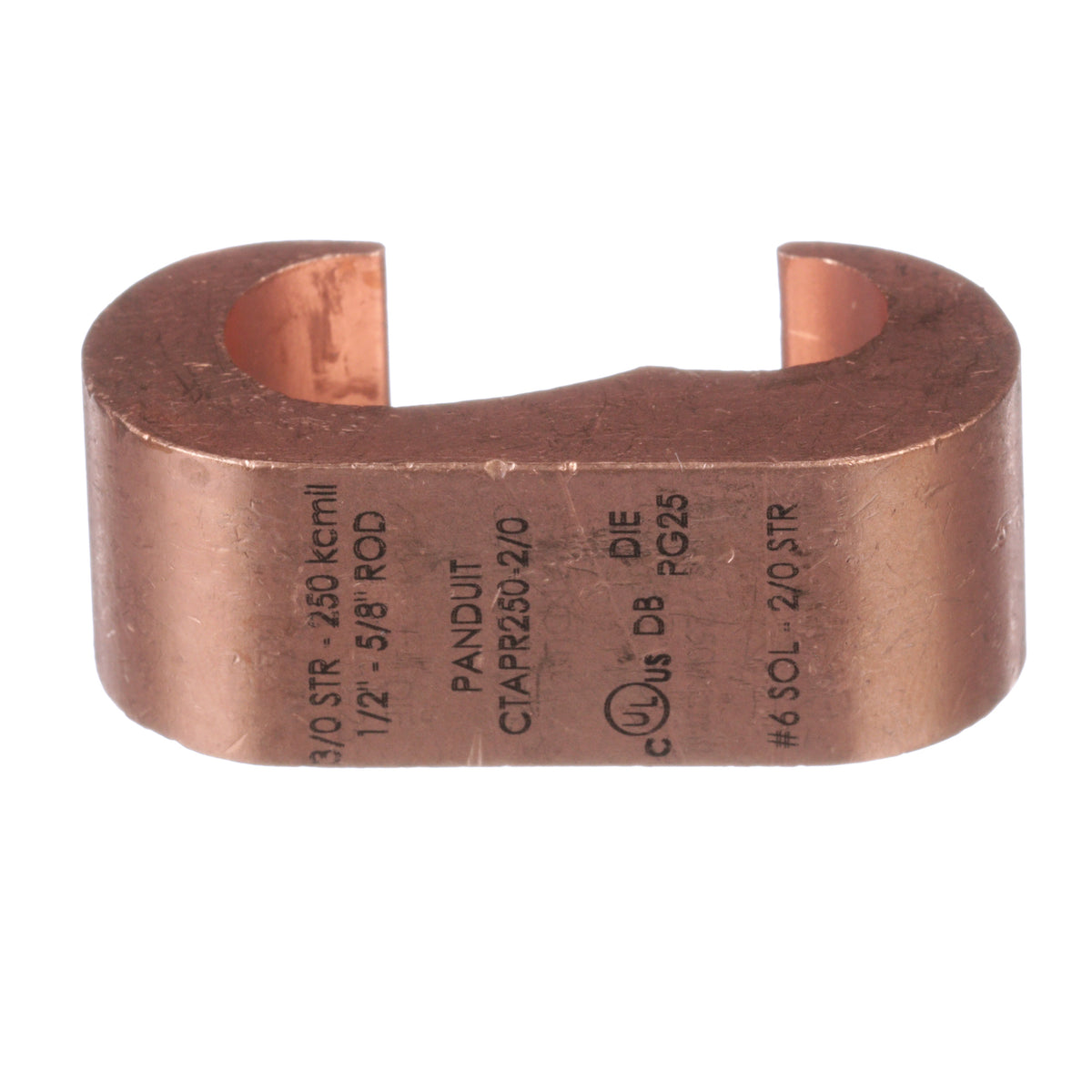

Panduit Compression Tap, C Shape, 3/0 AWG Stranded to 250 kcmil Main/Run, #6 AWG Solid to 2/0 AWG Stranded Tap, 90 deg C, Copper, 0.75 in L x 0.93 in W x 1.98 in H Dimensions
Features + Benefits
Panduit Panduit CTAPR250-2/0-6 | Compression Connectors - Taps | UPC - 61305614292 Key Specs
| Sub Brand | StructuredGround |
| Overall Length (In.) | 0.75 |
| Overall Length (mm) | 19 |
| Material | High Conductivity Copper |
| Overall Width (In.) | 0.93 |
| Overall Width (mm) | 23.6 |
| Overall Height (In.) | 1.98 |
| Overall Height (mm) | 50.3 |
| Maximum Copper Conductor Size (AWG SOL) | 3/0 |
| Maximum Copper Conductor Size (kcmil) | 250 |
| Minimum Copper Conductor Size (AWG SOL) | 6 |
| Minimum Copper Conductor Size (AWG STR) | 6 |
| Maximum Ground Rod Size (In.) | 5/8 |
| Maximum Ground Rod Size (mm) | 15.87 |
| Minimum Ground Rod Size (In.) | 1/2 |
| Minimum Ground Rod Size (mm) | 12.7 |
| Panduit Die Index Number | PG25 |
| Standards Met | cULus Listed for Direct Burial Grounding Applications to UL467 and Power Applications up to 35kV |
| Application | Utility/Ground Grid |
| Product Type | Compression Connectors - Taps |
Panduit Panduit CTAPR250-2/0-6 | Compression Connectors - Taps | UPC - 61305614292 Data Sheets
| Part Drawings | CTAPR Copper Compression Connectors | Download and View |
| Installation Documents | CTAPR Installation Instruction T-PMPI-327-PC | Download and View |
Panduit Panduit CTAPR250-2/0-6 | Compression Connectors - Taps | UPC - 61305614292 Environmental Information
| Panduit's RoHS Statement | Download and View |
