Brand: Panduit | SKU: 10083338

Panduit CTAPR250-250-6 | Compression Connectors - Taps | UPC - 61305623556

$26.36

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

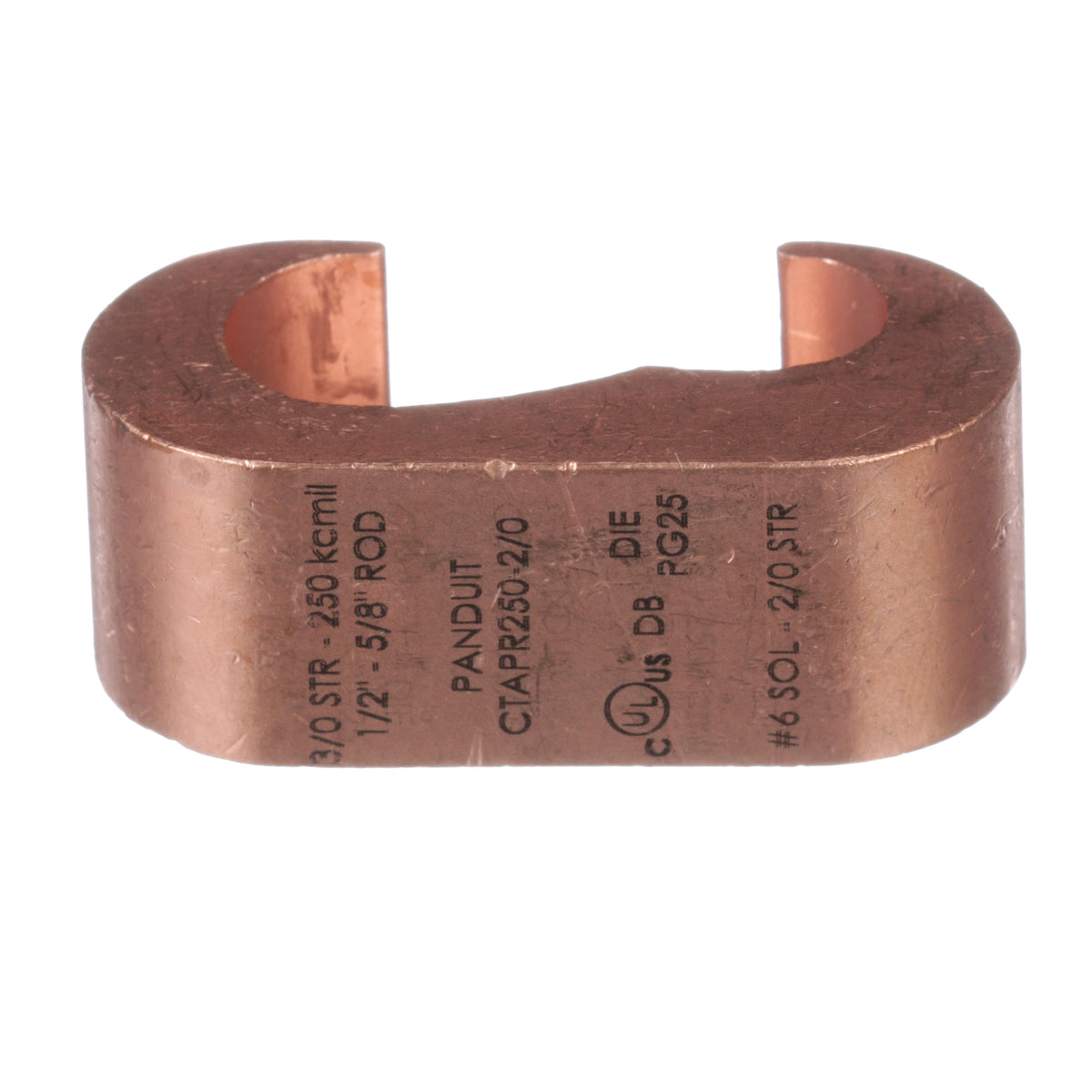

Panduit Compression Tap, C Shape, 3/0 AWG Stranded to 250 kcmil Main/Run, 3/0 AWG Stranded to 250 kcmil Tap, 90 deg C, Copper, 0.88 in L x 0.94 in W x 2.07 in H Dimensions

Features + Benefits

Panduit Panduit CTAPR250-250-6 | Compression Connectors - Taps | UPC - 61305623556 Key Specs

Sub Brand	StructuredGround
Overall Length (In.)	0.88
Overall Length (mm)	22.3
Material	High Conductivity Copper
Overall Width (In.)	0.94
Overall Width (mm)	23.8
Overall Height (In.)	2.07
Overall Height (mm)	52.6
Maximum Copper Conductor Size (kcmil)	250
Minimum Copper Conductor Size (AWG STR)	3/0
Maximum Ground Rod Size (In.)	5/8
Maximum Ground Rod Size (mm)	15.87
Minimum Ground Rod Size (In.)	1/2
Minimum Ground Rod Size (mm)	12.7
Panduit Die Index Number	PG25
Standards Met	cULus Listed for Direct Burial Grounding Applications to UL467 and Power Applications up to 35kV
Application	Utility/Ground Grid
Product Type	Compression Connectors - Taps

Panduit Panduit CTAPR250-250-6 | Compression Connectors - Taps | UPC - 61305623556 Data Sheets

Part Drawings \| CTAPR Copper Compression Connectors	Download and View
Installation Documents \| CTAPR Installation Instruction T-PMPI-327-PC	Download and View

Panduit Panduit CTAPR250-250-6 | Compression Connectors - Taps | UPC - 61305623556 Environmental Information

Panduit's RoHS Statement

Download and View
