Description
Description

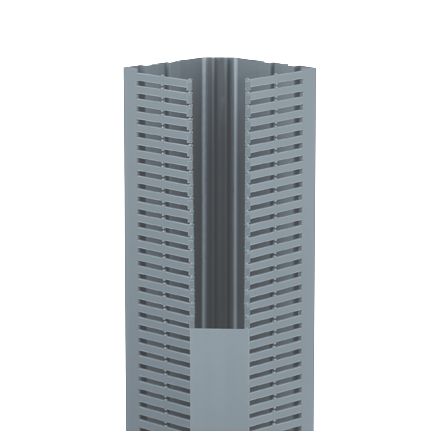

The CWD2LG6 Panduct PanelMax Corner Wiring Duct is an innovative wire management product that makes more efficient use of space inside enclosures, speeds installation, and reduces control panel assembly costs. It used in the vertical corners of compact to large electrical control panels with both side and back panels. UL94 V-0 flammability rating. Lead-free PVC. 3.35" (85 mm) x 2.57" (65.3 mm) x 6' (1.8 m). Slot width 0.2" (5 mm). Color Gray. 6 per package.
Specifications
Specifications
Panduit - CWD2LG6 - Product Categories
- Wire Routing, Management & Protection
- Wiring Duct & Duct Covers
Panduit - CWD2LG6 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CWD2LG6 |
| Item Description | PanelMax CWD2LG6 Corner Duct, Lt Gray, PVC, 2.57"x3.35", PK6 |
| Application | Corner Wiring Duct is Used in the Vertical Corners of Compact to Large Electrical Control Panels (With Both Side and Back Panels) to Route, Conceal, and Protect Electrical Wiring |

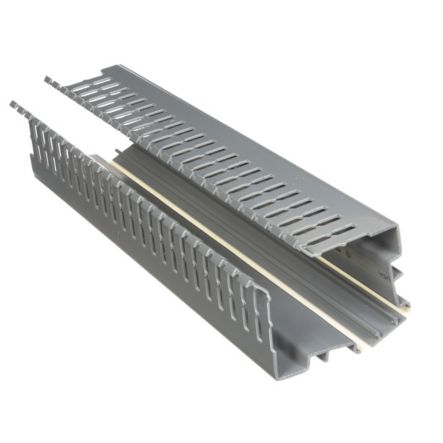

| Note | One-piece wire management product with co-extruded flexible hinges which makes more efficient use of space inside enclosures. It speeds installation and reduces costs. Has integrated mounting feature for divider wall, double scoreline, extended cover neck, compatible with standard wiring duct and cover. Gives up to 20% space savings in enclosure footprint area. |
| Product Type | Base Wiring Duct |
| Color | Light Gray |
| Cover Part Number | C2LG6 |
| Flammability Rating | UL94 V-0 |
| Includes | Base only |
| Standards Met | RoHS Compliant, UL Recognized, CE Compliant |
| Material | Lead-Free PVC |
| Mount Method | Mounting Holes |
| Measurement System | Imperial |
| Wiring Duct Style | Corner Wiring Duct |
| Wiring Duct Type | CDW |
| Overall Height (In.) | 2.57 |
| Overall Height (mm) | 65.3 |
| Overall Length (ft.) | 6 |
| Overall Length (m) | 1.8 |
| Overall Width (In.) | 3.35 |
| Overall Width (mm) | 85 |
| Slot Width (In.) | 0.2 |
| Slot Width (mm) | 5 |
| Sub Brand | PanelMax |
| Part Features | One-piece wire management product with co-extruded flexible hinges which makes more efficient use of space inside enclosures. It speeds installation and reduces costs. Has integrated mounting feature for divider wall, double scoreline, extended cover neck, compatible with standard wiring duct and cover. Gives up to 20% space savings in enclosure footprint area. |
Panduit - CWD2LG6 - Package Information
| UPC | 07498364621 |
|---|---|
| Standard Package Quantity | 6 |
| Standard Package Volume (cf) | 0.3717 |
| Standard. Ctn. Quantity | 24 |
| Standard. Ctn. Volume (cf) | 1.4869 |
