Panduit CWD4LG6 | PanelMax CWD4LG6 Corner Duct, Lt Gray, PVC, 4.58&...
Description
Description

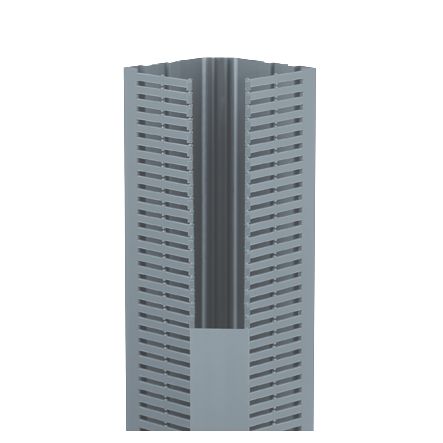

The CWD4LG6 Panduct PanelMax Corner Wiring Duct is an innovative wire management product that makes more efficient use of space inside enclosures, speeds installation, and reduces control panel assembly costs. It used in the vertical corners of compact to large electrical control panels with both side and back panels. UL94 V-0 flammability rating. Lead-free PVC. 4.58" (116.3 mm) x 5.33" (135.4 mm) x 6' (1.8 m). Slot width 0.2" (5 mm). Color Gray. 6 per package.
Panduit - CWD4LG6 - Features
- One-piece corner duct base for use with 4"; height wiring duct.
- Fits in the unused space in the vertical corner of enclosures, gaining sub-panel space or saving enclosure footprint area
- One-piece base requires less time to install than multi-piece solutions
- Optional quick mount clips engage anywhere along the product base further reducing assembly costs
- PANDUIT divider wall snaps directly to the integrated mounting feature in the channel to create two separate channels
- Compatible with PANDUIT 3"; and 4"; height wiring duct; both product sizes uses standard 2"; wiring duct cover
- Base and cover length is 6 ft.
Specifications
Specifications
Panduit - CWD4LG6 - Product Categories
- Wire Routing, Management & Protection
- Wiring Duct & Duct Covers
Panduit - CWD4LG6 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CWD4LG6 |
| Item Description | PanelMax CWD4LG6 Corner Duct, Lt Gray, PVC, 4.58"x5.33", PK6 |
| Application | Corner Wiring Duct is Used in the Vertical Corners of Compact to Large Electrical Control Panels (With Both Side and Back Panels) to Route, Conceal, and Protect Electrical Wiring |
| Product Type | Base Wiring Duct |
| Color | Light Gray |
| Cover Part Number | C2LG6 |
| Flammability Rating | UL94V-0 |
| Includes | Base Only |
| Standards Met | RoHS Compliant, UL Recognized, CE Compliant; CSA Approved |
| Material | Lead-Free PVC |
| Mount Method | Mounting Holes |
| Measurement System | Imperial |
| Wiring Duct Style | Corner Wiring Duct |
| Overall Height (In.) | 4.58 |
| Overall Height (mm) | 115.7 |
| Overall Length (ft.) | 6 |
| Overall Length (m) | 1.8 |
| Overall Width (In.) | 5.33 |
| Overall Width (mm) | 135.3 |
| Slot Width (In.) | 0.2 |
| Slot Width (mm) | 5 |
| Sub Brand | PanelMax |
| Part Features | One-piece wire management product with co-extruded flexible hinges which makes more efficient use of space inside enclosures. It speeds installation and reduces costs. Has integrated mounting feature for divider wall, double scoreline, extended cover neck, compatible with standard wiring duct and cover. Gives up to 20% space savings in enclosure footprint area. |
Panduit - CWD4LG6 - Package Information
| UPC | 07498365328 |
|---|---|
| Standard Package Quantity | 6 |
| Standard Package Volume (cf) | 0.9520 |
| Standard. Ctn. Quantity | 24 |
| Standard. Ctn. Volume (cf) | 3.8082 |
