Panduit CWD4WH6 | Base Wiring Duct | UPC - 07498365317
Description
Description

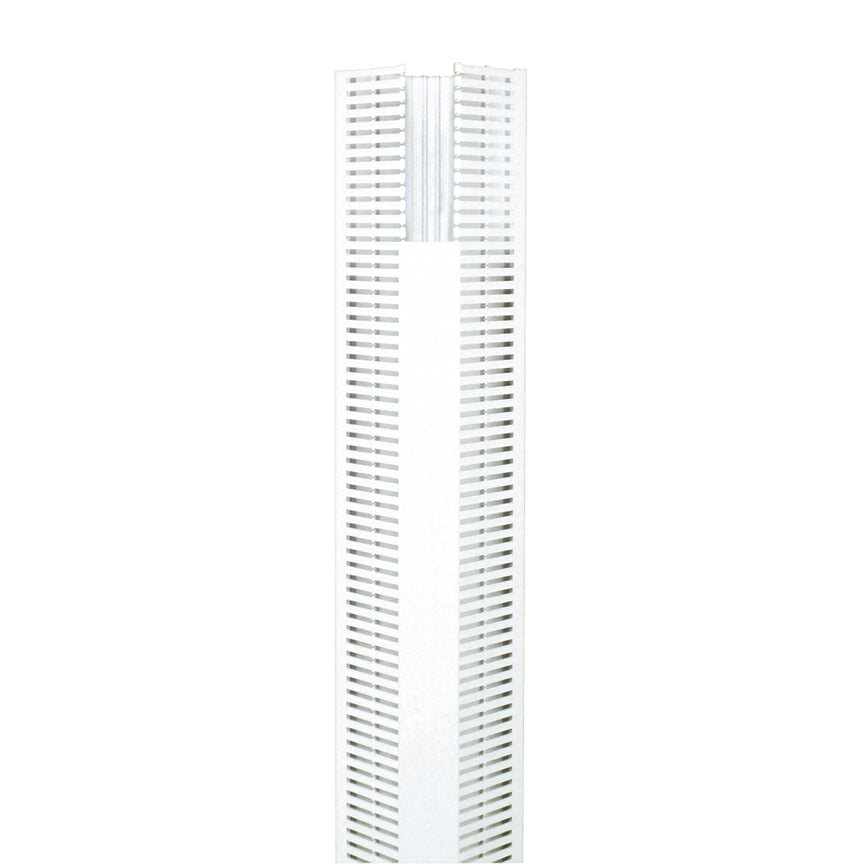

Panduct PanelMax corner wiring duct is an innovative one-piece wire management product which makes more efficient use of space inside enclosures, speeds installation and reduces control panel assembly costs. PanelMax corner wiring duct is used in the vertical corners of compact to large electrical control panels (with both side and back panels) to route, conceal and protect electrical wiring. PanelMax corner wiring duct is part of a complete line of Panduit wire management solutions for control panels.
Panduit Panduct PanelMax Slotted Wall Wiring Duct, 1-Piece Type CWD Corner, 5.33 in Width, 6 ft Length, 0.2 in Slot, Hole Mounting, Lead-Free PVC, White
Features + Benefits
- 1-piece wire management product with co-extruded flexible hinges which makes more efficient use of space inside enclosures
- Has integrated mounting feature for divider wall, double scoreline, extended cover neck, compatible with standard wiring duct and cover
- Fits in the unused space in the vertical corner of enclosures, gaining sub-panel space or saving enclosure footprint area
- Panduit divider wall snaps directly to the integrated mounting feature in the channel to create two separate channel
- Compatible with Panduit 3 in and 4 in height wiring duct, both product sizes use standard 2 in wiring duct cover
Panduit CWD4WH6 | Base Wiring Duct | UPC - 07498365317 Key Specs
| Application | Corner Wiring Duct is Used in the Vertical Corners of Compact to Large Electrical Control Panels (With Both Side and Back Panels) to Route, Conceal, and Protect Electrical Wiring |
| Product Type | Base Wiring Duct |
| Color | White |
| Cover Part Number | C2WH6 |
| Flammability Rating | UL94 V-0 |
| Standards Met | RoHS Compliant, UL Recognized, CE Compliant |
| Material | Lead-Free PVC |
| Mount Method | Mounting Holes |
| Measurement System | Metric |
| Wiring Duct Style | Corner Wiring Duct |
| Wiring Duct Type | CDW |
| Overall Height (In.) | 4.58 |
| Overall Height (mm) | 116.3 |
| Overall Length (ft.) | 6 |
| Overall Length (m) | 1.8 |
| Overall Width (In.) | 5.33 |
| Overall Width (mm) | 135.4 |
| Slot Width (In.) | 0.2 |
| Slot Width (mm) | 5.1 |
| Sub Brand | PanelMax |
Panduit CWD4WH6 | Base Wiring Duct | UPC - 07498365317 Data Sheets
| Part Drawings | Corner Duct part dwg. - 39210-03-R2 | Download and View |
| Catalog Cut Sheets | Catalog Cut Sheet - CWD3LG6 Product Page | Download and View |
| Part Drawings | Part Drawing - DWG - CWD3_36897-1127_RR | Download and View |
Panduit CWD4WH6 | Base Wiring Duct | UPC - 07498365317 Environmental Information
| Panduit's RoHS Statement | Download and View |
