Panduit CWF400 Conduit Waterfall
Description
Description

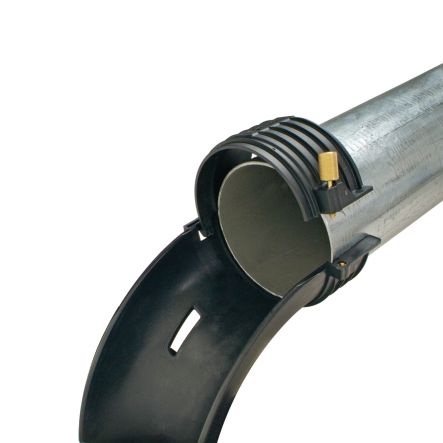

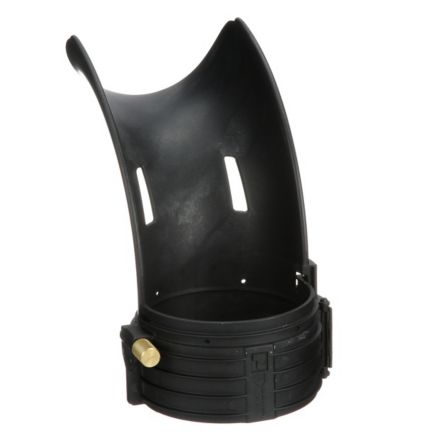

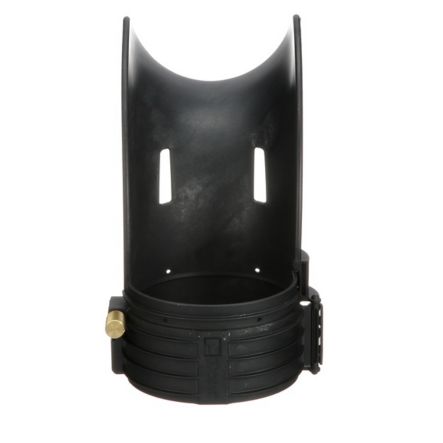

The Tak-Ty Conduit Waterfall is designed for 4-inch EMT conduit to cost-effectively manage sensitive network cables in compliance with the TIA/EIA standards. The product allows for installation in retrofit applications where communication cables are already installed. The bend radius control helps prevent degradation of cable performance and prevents pinch points that could damage cable. The conduit waterfall is 8.4 inches x 5.7 inches (213.4mm x 144.8mm).
Provides bend radius control for cables entering/exiting 4"; (101.6mm) EMT conduit. Secure to conduit without tools utilizing integral thumb screw and captive nut.
Specifications
Specifications
Panduit - CWF400 - Product Categories
- Wire Routing, Management & Protection
- Cable & Conduit Managers & Grommets
Panduit - CWF400 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CWF400 |
| Item Description | Tak-Ty Conduit Waterfall, 4 in, Black |
| Application | (1) Suitable for Use in Air Handling Spaces and Areas Requiring UL Approvals, (2) Allows for Installation in Retro-Fit Applications Where Communication Cables are Already Installed, (3) Offers Innovative Features that Speed Installation and is part of t |
| Product Type | Cable Management Accessories |
| Color | Black |
| Finish/Coating | Glass Reinforced |
| Material | Glass Filled Nylon 6.6 |
| Overall Height (In.) | 8.54 |
| Overall Height (mm) | 217 |
| Overall Length (In.) | 8.4 |
| Overall Length (mm) | 213.4 |
| Overall Width (In.) | 5.7 |
| Overall Width (mm) | 144.8 |
| Standards Met | RoHS Compliant, Material Passes UL94 Standard, V-0 for Flammability |
| Compatible Hole Diameter (In.) | 4 |
| Compatible Hole Diameter (mm) | 101.6 |
Panduit - CWF400 - Package Information
| UPC | 07498334301 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.2163 |
| Standard. Ctn. Quantity | 10 |
| Standard. Ctn. Volume (cf) | 2.1626 |
