Brand: Panduit | SKU: 594188

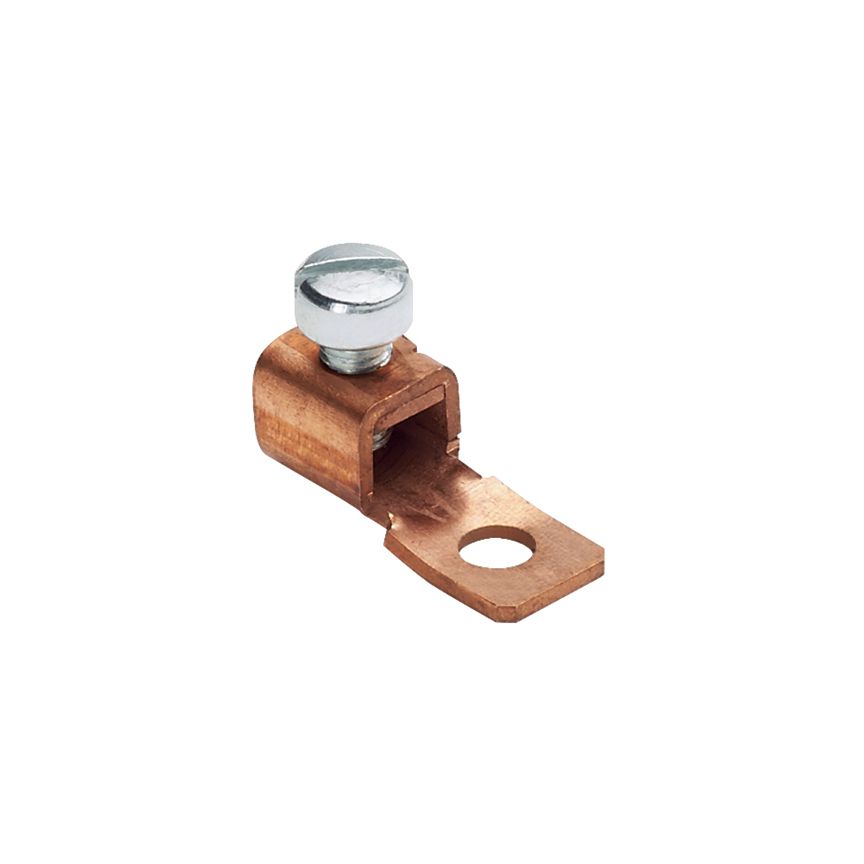

Panduit CXS35-36-C | Pan-Lug Mech Con-Lugs, Copper, Strt, One 3/16" Stud, PK100

Regular price $2.70
Shipping calculated at checkout.
  • Low prices.

    Price match guarantee

  • In-House Experts.

    We know our products

  • Easy Returns.

    Quick & Hassle Free

  • Superior Selection.

    Extensive product catalog

Description

Panduit CXS35-36-C | Pan-Lug Mech Con-Lugs, Copper, Strt, One 3/16" Stud, PK100

Ensure reliable connections in electrical panels with our copper straight tongue mechanical lug, visible wire window, strong anti-corrosion build, and space-saving design for flat contact.

Panduit Pan-Lug Mechanical Lug, Single Barrel, Series: CXS, Stranded Copper Conductor, 14 to 6 AWG Conductor, 3/16 in Stud, 1 Bolt Holes, 0.38 in W x 0.05 in THK Tongue, Straight Fixed Tongue, 600 VAC, Specifications: Slotted Fillister Screw, 35 A Current Rating, 90 deg C, Copper, Tin Plated, 1.08 in L x 0.38 in W x 0.39 in H Dimensions

Panduit - CXS35-36-C - Features

  • Range taking, high strength copper

Specifications

Panduit - CXS35-36-C - Specifications

Brand NamePanduit
Manufacturer Part NumberCXS35-36-C
Product TypeMechanical Lug
Base MaterialCopper
Number of Stud Holes1
Barrel TypeSingle Barrel
Tongue TypeFixed Tongue
Tongue AngleStraight
Finish/CoatingBare
Stud Hole Size (In.)3/16
Stud Hole Size (mm)4.8
Screw TypeSlotted
Maximum Copper Conductor Size (AWG STR)6
Minimum Copper Conductor Size (AWG STR)14
Tongue Width (In.)0.38
Tongue Width (mm)9.6
Tongue Thickness (In.)0.05
Tongue Thickness (mm)1.2
Overall Length (In.)1.08
Overall Length (mm)27.4
Overall Height (In.)0.39
Overall Height (mm)9.9
Standards MetcULus listed up to 600V and temperature rated to 90 degrees C
UPC07498387833

Panduit - CXS35-36-C - Environmental Information

RoHS StatusROHS3 Compliant
Moisture Sensitivity Level (MSL)Not Applicable
ECCNEAR99
HTSUS8536.90.4000
