Brand: Panduit
|
SKU:
CXS70-14-C
Panduit CXS70-14-C | Mechanical Connectors - Lugs | UPC - 07498383730
Regular price
$3.00
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit CXS70-14-C | Mechanical Connectors - Lugs | UPC - 07498383730
Regular price
$3.00
Unit price
Description
Description

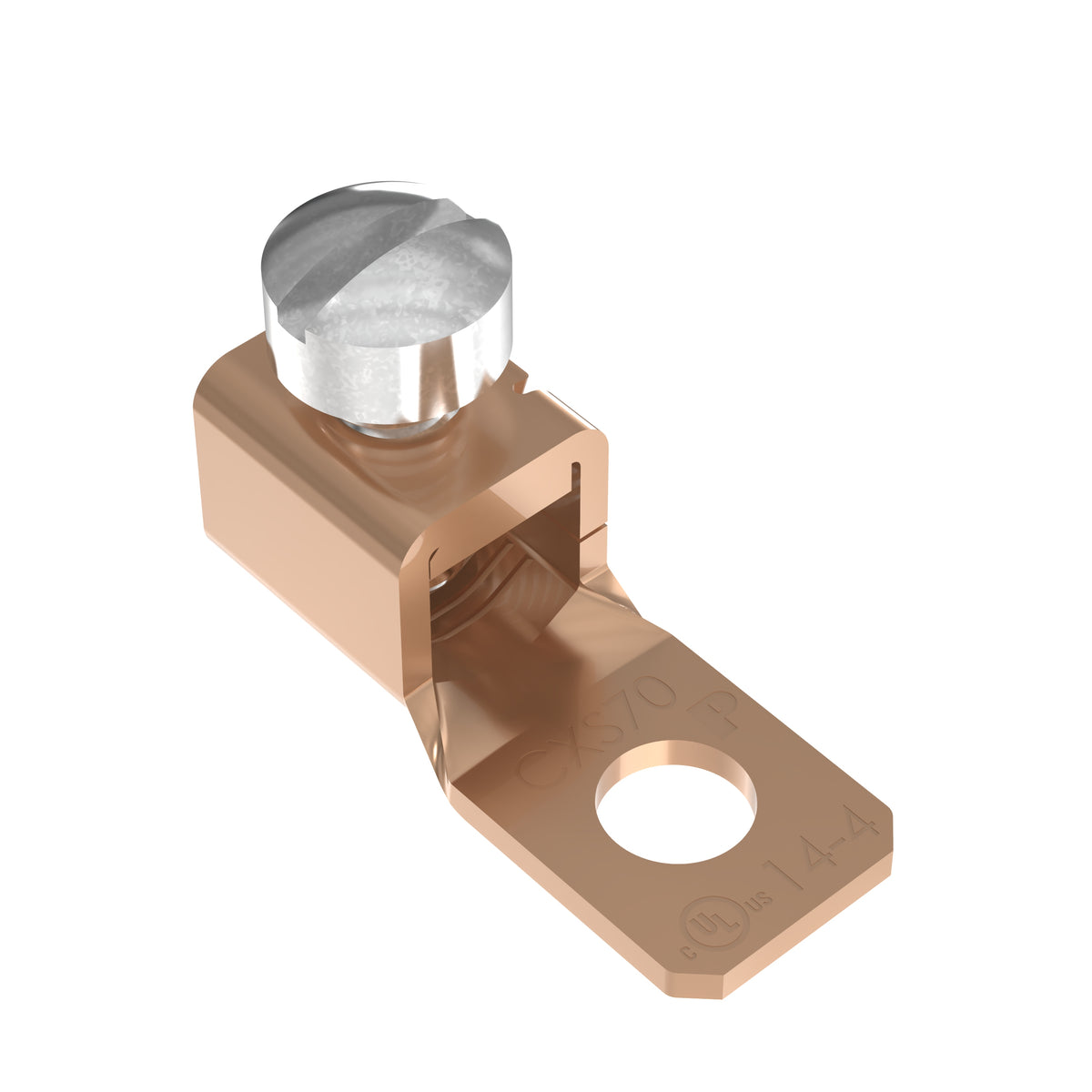

Panduit Pan-Lug Mechanical Lug, Single Barrel, Series: CXS, Stranded Copper Conductor, 14 to 4 AWG Conductor, 1/4 in Stud, 1 Bolt Holes, 0.5 in W x 0.06 in THK Tongue, Straight Fixed Tongue, 600 VAC, Specifications: 0.53 in L Collar, Slotted Fillister Screw 70 A Current Rating, 90 deg C, Copper, Tin Plated, 1.28 in L x 0.5 in W x 0.5 in H Dimensions
Features + Benefits
- Range taking, high strength copper
Panduit CXS70-14-C | Mechanical Connectors - Lugs | UPC - 07498383730 Key Specs
| Application | Copper Mechanical Lug |
| Product Type | Mechanical Connectors - Lugs |
| Base Material | Copper |
| Minimum Copper Conductor Size (AWG STR) | 14 |
| Maximum Copper Conductor Size (AWG STR) | 4 |
| Stud Hole Size (In.) | 1/4 |
| Number of Holes | 1 |
| Tongue Type | Fixed Tongue |
| Tongue Angle | Straight |
| Tongue Length (In.) | 0.75 |
| Tongue Length (mm) | 19 |
| Tongue Thickness (In.) | 0.06 |
| Tongue Thickness (mm) | 1.5 |
| Tongue Width (In.) | 0.5 |
| Tongue Width (mm) | 12.7 |
| Overall Height (In.) | 0.5 |
| Overall Height (mm) | 12.7 |
| Overall Length (In.) | 1.28 |
| Overall Length (mm) | 32.5 |
| Overall Width (In.) | 0.5 |
Panduit CXS70-14-C | Mechanical Connectors - Lugs | UPC - 07498383730 Environmental Information
| Panduit's RoHS Statement | Download and View |
