Brand: Panduit
|
SKU:
10044064

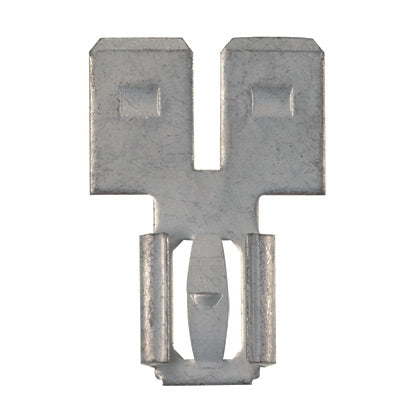

Panduit D-250A-M | Loose Piece Disconnect | UPC - 07498382749
Regular price
$462.98
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit D-250A-M | Loose Piece Disconnect | UPC - 07498382749
Regular price
$462.98
Unit price
Description
Description
Panduit Pan-Term Disconnect Adapter, Type D-A Loose Piece Non-Insulated Vibration-Resistant, 2000 VAC, 266 deg F Temperature, 9/32 in Wire Strip, Brass, Tin Plated, Metallic, 0.82 in L x 0.57 in W
- Couples two female disconnects to one male disconnect
- Multiple connection points allow additional circuits to be added to existing equipment without expensive rework
- The vibration-resistant disconnect adapter in metallic brass couples two female tabs and one male tab all sized at 0.25 x 0.032 in
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
Panduit Panduit D-250A-M | Loose Piece Disconnect | UPC - 07498382749 Key Specs
| Disconnect Type | Disconnect Adapter |
| Insulation Material | Non-Insulated |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.25 |
| Tab Size (mm) | 6.3 |
| Maximum Voltage (V) | 2000 |
| Minimum Voltage (V) | 2000 |
| Base Material | Brass |
| Finish/Coating | Tinned |
| Color Code | Metallic |
| Maximum Operating Temperature (°C) | 130 |
| Maximum Operating Temperature (°F) | 266 |
| Sub Brand | Pan-Term |
| Overall Height (In.) | 0.32 |
| Overall Height (mm) | 8.1 |
| Overall Length (In.) | 0.82 |
| Overall Length (mm) | 20.8 |
Panduit Panduit D-250A-M | Loose Piece Disconnect | UPC - 07498382749 Environmental Information
| Panduit's RoHS Statement | Download and View |
