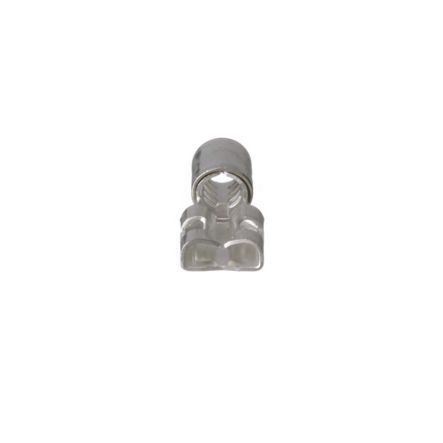

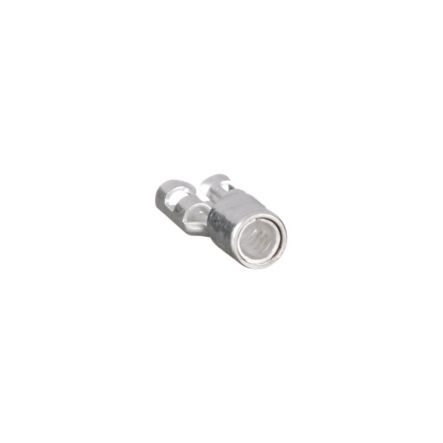

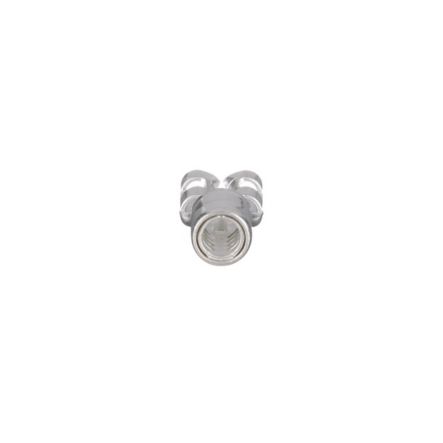

Panduit D10-250-D | Pan-Term D10-250-D Loose Piece Disconnect
Regular price
$215.76
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit D10-250-D | Pan-Term D10-250-D Loose Piece Disconnect
Regular price
$215.76
Unit price
Description
Description
Panduit D10-250-D | Pan-Term D10-250-D Loose Piece Disconnect
The vibration resistant female disconnect in metallic brass helps overcome the failures caused by high vibration. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 12-10 AWG (4.0-6.0 mm²). It is 0.72"(18.3 mm) long and 0.3" (7.6 mm) wide. The disconnect is non-insulated, is tin-plated, has a standard barrel configuration and a sleeved barrel. It comes in a boxes of 500.
Specifications
Specifications
Panduit - D10-250-D - Product Categories
- Wire Termination
- Disconnects
Panduit - D10-250-D - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | D10-250-D |
| Item Description | Pan-Term D10-250-D Loose Piece Disconnect |
| Disconnect Type | Female Disconnect |
| Insulation Material | Non-Insulated |
| Maximum Copper Conductor Size (AWG) | #10 |
| Maximum Wire Size (AWG) | #10 |
| Minimum Wire Size (AWG) | #12 |
| Minimum Copper Conductor Size (AWG) | #12 |
| Wire Strip Length (In.) | 1932-09-01 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.250 x 0.032 |
| Tab Size (mm) | 6.3 x 0.8 |
| Standards Met | UL Recognized, UL Listed 20H3 E78522; CSA Certified LR31212 |
| Maximum Voltage (V) | 2000 |
| Base Material | Brass |
| Finish/Coating | Tin-Plated |
| Barrel Type | Standard |
| Maximum Operating Temperature (°C) | 150 |
| Maximum Operating Temperature (°F) | 302 |
| Sub Brand | Pan-Term |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Overall Length (In.) | 0.72 |
| Overall Length (mm) | 18.3 |
| Overall Thickness (In.) | 0.16 |
| Overall Thickness (mm) | 0.4 |
| Overall Width (In.) | 0.3 |
| Overall Width (mm) | 7.6 |
| Tongue Angle | Straight |
| Packaging Type | Box |
| Product Type | Disconnect |
| For Use With | CT-1570, CT-2300/ST (CD-570), CT-2500/L (CT-2570CH), UP14ZLW (CD-570) |
| Maximum Voltage (kV) | 2 |
| Part Features | • Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost • Sleeved barrel helps to facilitate high mechanical and electrical performance when crimping • Barrel of terminal internally beveled to provide quick and easy wire insertion • Internal barrel serrations assure good wire contact and maximum tensile strength • Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection • Maximum recommended operating temperature 302°F (150°C) • UL and CSA rated up to 2000 V per UL 310, where applicable |
Panduit - D10-250-D - Package Information
| UPC | 07498382205 |
|---|---|
| Standard Package Quantity | 500 |
| Standard Package Volume (cf) | 0.4190 |
| Standard. Ctn. Quantity | 0 |
| Standard. Ctn. Volume (cf) | 0.0000 |
