Brand: Panduit
|
SKU:
972613

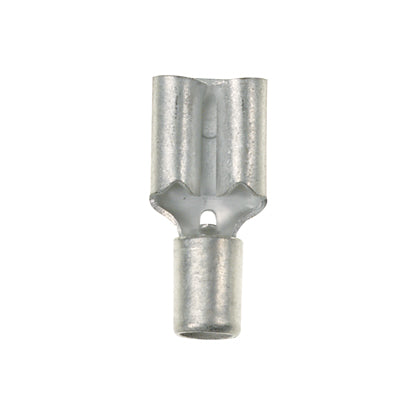

Panduit D10-250-L | Loose Piece Disconnect | UPC - 07498382204
Regular price
$65.28
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit D10-250-L | Loose Piece Disconnect | UPC - 07498382204
Regular price
$65.28
Unit price
Description
Description
Panduit Pan-Term Female Disconnect, Vibration Resistant, Series: D Series, Stranded Conductor, 12 to 10 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Sleeve Barrel, Crimp Terminal, 2000 VAC, 9/32 in L Wire Strip, Standard Barrel Configuration, 302 deg F, Brass, Metallic, Tin Plated, 0.72 in L x 0.3 in W x 0.12 in H, Non-Insulated
Features + Benefits
- Right angle design for use in limited space applications
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Sleeved barrel helps to facilitate high mechanical and electrical performance when crimping
- Barrel of terminal internally beveled to provide quick and easy wire insertion
- Internal barrel serrations assure good wire contact and maximum tensile strength
Panduit D10-250-L Key Specs
| Disconnect Type | Female Disconnect |
| Insulation Material | Non-Insulated |
| Maximum Copper Conductor Size (AWG) | #10 |
| Maximum Wire Size (AWG) | #10 |
| Minimum Wire Size (AWG) | #12 |
| Minimum Copper Conductor Size (AWG) | #12 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.25 |
| Tab Size (mm) | 6.3 |
| Standards Met | UL Recognized, UL Listed 20H3 E78522; CSA Certified LR31212 |
| Maximum Voltage (V) | 2000 |
| Base Material | Brass |
| Finish/Coating | Tinned |
| Color Code | Metallic |
| Barrel Type | Sleeved Barrel |
| Maximum Operating Temperature (°C) | 150 |
| Maximum Operating Temperature (°F) | 302 |
| Sub Brand | Pan-Term |
Panduit D10-250-L Data Sheets
| Selection Guides | Terminal Tools Selection Guide | Download and View |
| Specification Sheets | Semi Automatic Ferrule Installation Tool - CP-881 | Download and View |
| Installation Documents | Presse de dénudage automatique des fils et de sertissage de virole Mode d'emploi | Download and View |
