Panduit D10-250C-D | Loose Piece Disconnect | UPC - 07498371311

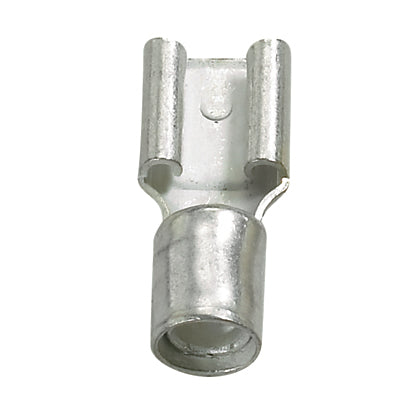

The vibration resistant female disconnect compressor in metallic brass helps overcome the failures caused by high vibration. It has a tab size of 0.250 x 0.032" inches (6.3 x 0.8 mm) and supports a wire range of 12-10 AWG (4.0-6.0 mm²). It is 0.72" (18.3 mm) long and 0.3" (7.6 mm) wide. The disconnect is non-insulated, is tin-platted, has a standard barrel configuration and a sleeved barrel. It comes in boxes of 500.

---

Panduit Panduit D10-250C-D | Loose Piece Disconnect | UPC - 07498371311 Key Specs

Disconnect Type	Female Disconnect
Insulation Material	Non-Insulated
Maximum Copper Conductor Size (AWG)	#10
Maximum Wire Size (AWG)	#10
Minimum Wire Size (AWG)	#12
Minimum Copper Conductor Size (AWG)	#12
Wire Strip Length (In.)	0.28
Wire Strip Length (mm)	7.1
Tab Size (In.)	0.25
Tab Size (mm)	6.4
Maximum Voltage (V)	2000
Base Material	Brass
Finish/Coating	Tinned
Color Code	Metallic
Barrel Type	Sleeved Barrel
Maximum Operating Temperature (°C)	150
Maximum Operating Temperature (°F)	302
Sub Brand	Pan-Term
Overall Height (In.)	0.12
