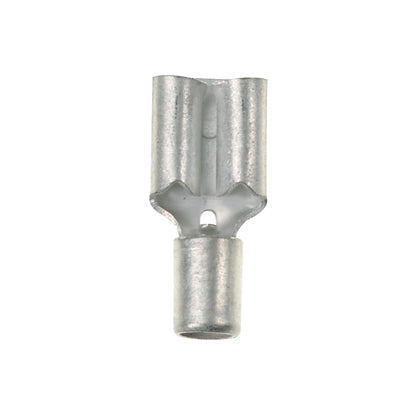

Panduit D14-187-C | Loose Piece Disconnect | UPC - 07498364587

The vibration resistant female disconnect in metallic brass helps overcome the failures caused by high vibration. It has a tab size of 0.187 x 0.032" (4.8 x 0.8 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm²). It is 0.58" (14.7 mm) long and 0.23" (5.8 mm) wide. The disconnect is non-insulated, tin-plated, has a standard barrel configuration and a sleeved barrel. It comes in a bottles of 100.

---

Panduit Loose Piece Disconnect Key Specs

Disconnect Type	Female Disconnect-Compressor
Insulation Material	Non-Insulated
Maximum Copper Conductor Size (AWG)	#14
Maximum Wire Size (AWG)	#14
Minimum Wire Size (AWG)	#16
Minimum Copper Conductor Size (AWG)	#16
Wire Strip Length (In.)	0.28
Wire Strip Length (mm)	7.1
Tab Size (In.)	0.19
Tab Size (mm)	4.8
Standards Met	UL Recognized, UL Listed 20H3 E78522; CSA Certified LR31212
Maximum Voltage (V)	2000
Base Material	Brass
Finish/Coating	Tinned
Color Code	Metallic
Barrel Type	Sleeved Barrel
Maximum Operating Temperature (°C)	150
Maximum Operating Temperature (°F)	302
Sub Brand	Pan-Term
